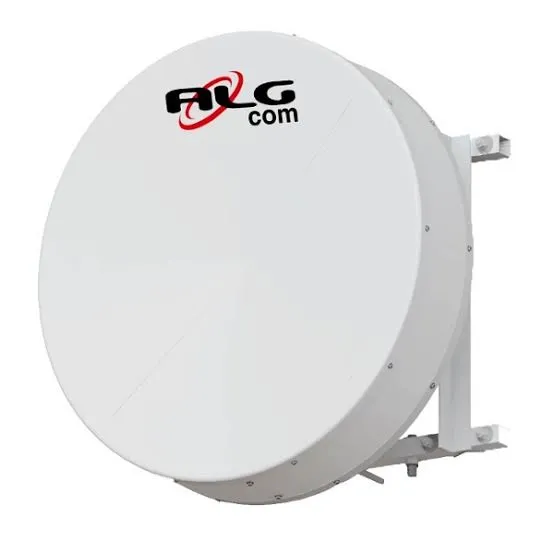

The ALGCOM PS-10900-37-09-DP Parabolic Antenna is engineered to deliver high carrier-class performance, low RF noise interference, and high-capacity backhaul connectivity for telecommunications providers, Wireless Internet Service Providers (WISPs), and enterprise networks. Designed specifically for the 10.0–10.9 GHz frequency spectrum with a 0.9-meter (3-foot) dish reflector, this antenna achieves a powerful 37 dBi gain with narrow beamwidth to deliver crystal-clear long-range Point-to-Point (PtP) link stability over challenging geographic terrains.
Featuring dual polarization (Vertical/Horizontal or Slant ±45° mounting options), the PS-10900-37-09-DP delivers high cross-polarization isolation and an exceptional Front-to-Back (F/B) ratio. This isolation blocks side-lobe RF interference and co-location noise in dense tower environments. Built with high-grade marine-alloy aluminum, stainless steel hardware, and a durable UV-stabilized radome cover, the antenna is rated to withstand severe wind forces and adverse environmental conditions, ensuring unbroken 24/7 uptime.
Comprehensive Key Features:
37 dBi High Gain Output: Concentrated 0.9m dish reflector designed for ultra-long-distance PtP wireless backhaul links.
10.0 to 10.9 GHz Frequency Band: Optimized for high-frequency operations, bypassing congested lower 5 GHz spectrums.
Dual Polarization Versatility: Supports Dual Linear (V/H) or Slant ±45° polarization configurations to match various radio backhauls.
High Isolation & Noise Suppression: Superior Front-to-Back (F/B) ratio and cross-polarization discrimination shield against co-location tower noise.
Rugged Heavy-Duty Construction: Fabricated from structural marine-grade aluminum and stainless steel fasteners for extreme wind load resistance.
Precision Alignment Mount: Galvanized mounting hardware with fine-tuning elevation and azimuth adjustments for accurate long-distance alignment.
Extended Technical Specifications:
Manufacturer / Brand: ALGCOM
Model / SKU: PS-10900-37-09-DP
Operating Frequency Range: 10.0 GHz to 10.9 GHz
Antenna Gain: 37 dBi
Reflector Diameter: 0.9 meters (3 feet / 900 mm)
3 dB Beamwidth (HPBW): 2.2°
Polarization: Dual Linear (Vertical and Horizontal) / Slant ±45°
Front-to-Back (F/B) Ratio: > 62 dB
Cross-Polarization Rejection: > 30 dB
VSWR: < 1.5 : 1
RF Connectors: (2) N-Female Connectors (Weatherproof)
Wind Survival: Up to 200 km/h (125 mph)
Mounting Pipe Diameter: Fits standard poles from 50 mm to 114 mm (2.0 in to 4.5 in)
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
