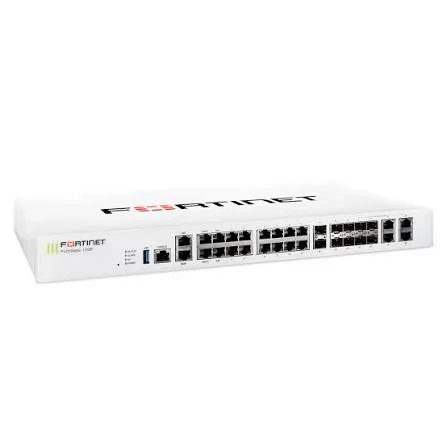

The Fortinet FortiGate 100F Series (Model: FG-100F) delivers security-driven networking and high-performance Next-Generation Firewall (NGFW) capabilities for mid-sized organizations and enterprise branch offices. Powered by Fortinet’s purpose-built System-on-a-Chip 4 (SoC4) security processor, the FortiGate 100F accelerates network processing while running advanced threat protection, SSL inspection, and deep packet inspection without impacting throughput.
Featuring a comprehensive port layout, the FG-100F comes equipped with 22 Gigabit RJ45 ports—including 2 dedicated WAN ports, 1 DMZ port, 1 Management port, 2 High Availability (HA) ports, and 16 switch ports (with 4 shared SFP media pairs). It also includes 4 dedicated Gigabit SFP slots and 2 high-speed 10 GE SFP+ FortiLink ports for seamless connection to FortiSwitch access layers. With dual redundant power supplies, integrated Secure SD-WAN functionality, and centralized FortiOS management, it simplifies network architecture while maintaining maximum uptime and high-level cybersecurity compliance.
Comprehensive Key Features:
SoC4 Security Processor Acceleration: Purpose-built ASIC technology delivers fast pattern matching, high-speed networking, and hardware-accelerated IPsec VPN performance.
High-Density Port Architecture: Equipped with 22 x GE RJ45 ports, 4 x SFP slots, and 2 x 10 GE SFP+ uplink / FortiLink ports.
Integrated Secure SD-WAN: Enables efficient multi-cloud application routing, dynamic path steering, and reduced WAN operational expenses.
Dual Redundant Power Supplies: Built-in dual AC power supply units ensure high availability and hardware redundancy for critical network environments.
Advanced Threat Protection: High-speed IPS (2.6 Gbps), NGFW (1.6 Gbps), and Threat Protection (1 Gbps) throughput powered by FortiGuard AI-driven security services.
Centralized Fabric Management: Seamlessly integrates with FortiManager, FortiAnalyzer, FortiSwitch, and FortiAP for unified network orchestration.
Extended Technical Specifications:
Model / SKU: FortiGate 100F / FG-100F
Form Factor: 1U Rackmount (Brackets Included)
Network Interfaces:
(22) Gigabit RJ45 Ports (Includes 2 x WAN, 1 x DMZ, 1 x MGMT, 2 x HA, and 16 x Switch Ports)
(4) Shared GE RJ45 / SFP Media Pairs
(4) Dedicated GE SFP Slots
(2) 10 GE SFP+ FortiLink Slots
(1) USB 2.0 Port
(1) RJ45 Console Port
System Performance:
Firewall Throughput: 20 Gbps
IPS Throughput: 2.6 Gbps
NGFW Throughput: 1.6 Gbps
Threat Protection Throughput: 1 Gbps
Firewall Latency: 5 µs
Concurrent Sessions (TCP): 1.5 Million / 56,000 active connections
Gateway-to-Gateway IPsec VPN Tunnels: 2,000
Power & Thermal:
Power Supply: Dual Built-in Redundant Power Supplies (100–240V AC, 50/60 Hz)
Power Consumption (Average / Max): 35.1 W / 38.7 W
Heat Dissipation: 119.77 BTU/h
Operating Conditions:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% non-condensing
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
