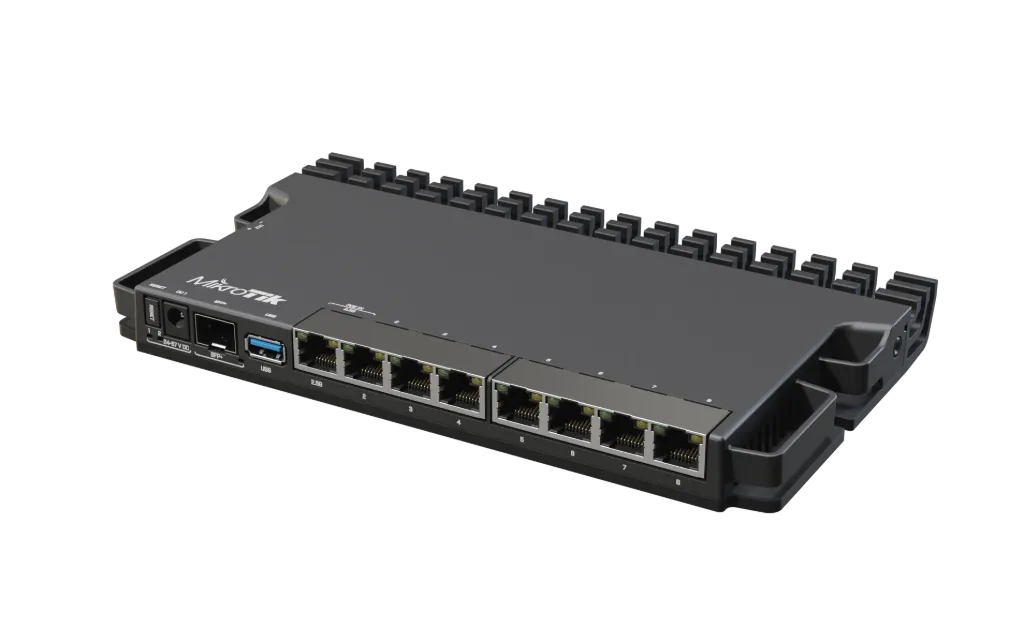

The MikroTik RB5009UG+S+IN is a compact, high-density router designed to serve as a powerful core gateway for small-to-medium businesses, ISP customer edge sites, and advanced home lab environments. Engineered to deliver enterprise-grade routing performance in a streamlined form factor, it easily handles multi-gigabit workloads, complex firewall configurations, and high-concurrency VPN connections.
At its core, the router is powered by a Marvell Armada quad-core ARM 64-bit CPU operating at 1.4 GHz, backed by 1 GB DDR4 RAM and 1 GB NAND flash storage. The device incorporates a high-speed Marvell switch chip connected via a 10 Gbps full-duplex line to the CPU, ensuring non-blocking wire-speed forwarding across all interfaces. The port array includes 7x Gigabit Ethernet RJ45 ports, 1x 2.5 Gigabit Ethernet RJ45 port for ultra-fast WAN or local NAS connectivity, and 1x 10G SFP+ cage for multi-gigabit fiber uplinks.
For high reliability, the RB5009UG+S+IN features triple redundant powering options: a standard DC power jack, a 2-pin industrial terminal block, and PoE-in support on Port 1 (802.3af/at or Passive PoE). Port 8 also provides Passive PoE-out capability (up to 25W depending on power input). It incorporates a full-size USB 3.0 Type-A port for external storage expansion, container file hosting, or secondary cellular modem failover. Housed in a heavy-duty black aluminum enclosure that functions as a giant passive heat sink for 0 dB fanless operation, up to four units can be rackmounted side-by-side in a single 1U 19-inch server rack using optional mounting brackets. Driven by RouterOS Level 5, it offers complete administrative control over advanced Layer 3 routing, container deployments, and IPsec hardware-accelerated VPN gateways.
Comprehensive Key Features
Quad-Core 1.4 GHz ARM 64-bit CPU: High-frequency Marvell Armada processor paired with 1 GB DDR4 RAM handles heavy routing tables, IPsec encryption, and containerized apps.
Multi-Gigabit Port Configuration: Features 7x Gigabit Ethernet ports, 1x 2.5G Ethernet port, and 1x 10G SFP+ cage for high-capacity fiber trunks.
Triple Power Redundancy: Powered via DC barrel jack, 2-pin industrial terminal block, or 802.3af/at / Passive PoE-in on Port 1.
PoE-Out on Port 8: Port 8 provides Passive PoE output to power secondary access points, IP cameras, or CPE clients.
Full-Size USB 3.0 Interface: Enables high-speed external storage sharing, container log storage, or secondary cellular 4G/5G USB modem failover attachments.
1U Quad-Mount Metal Enclosure: Heavy-duty black aluminum casing operates as a passive heat sink for 0 dB silent operation; fits 4 units in 1U rack space with optional ears.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RB5009UG+S+IN
Dimensions: 0.220 m × 0.125 m × 0.022 m (220 × 125 × 22 mm)
Weight: 0.850 kg
CPU: Marvell Armada 88F7040 Quad-Core ARM 64-bit @ 1.4 GHz
RAM: 1 GB DDR4
Storage: 1 GB NAND
SFP+ Cage: 1× 10 Gbps SFP+ Port (supports 1.25G and 10G SFP+ modules)
USB Interface: 1× USB 3.0 Type-A Port
Console Port: 1× RJ45 Serial Console Port
Enclosure Material: Heavy-Duty Black Anodized Aluminum Casing
Status LEDs: Power, User LED, Port Link/Activity Status Indicators
2. Wireless, Networking & Performance Parameters
Ethernet Ports: 1× 2.5 Gbps RJ45 Port + 7× 10/100/1000 Mbps RJ45 Ports
PoE-In: 802.3af/at or Passive PoE on Port 1 (24 – 57 V DC)
PoE-Out: Passive PoE on Port 8 (Max output up to 640 mA at <30V, matches input voltage)
Switch Chip Model: Marvell 88E6393
IPsec Hardware Acceleration: Supported
Operating System: MikroTik RouterOS (License Level 5)
Architecture: ARM 64-bit
3. Electrical & Environmental Parameters
Power Method: 2-pin Industrial Terminal, DC Power Jack (24 – 57 V DC), or PoE-in on Port 1
Included Power Supply: 24 V DC / 1.5 A Power Adapter
Max Power Consumption: 20 W (14 W without attachments/PoE-out)
Cooling Type: Passive (Fanless)
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
| brand | Mikrotik |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
