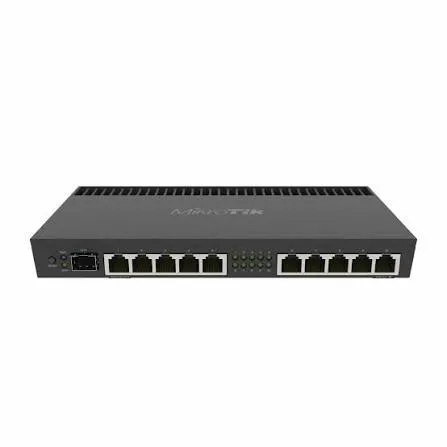

The MikroTik RB4011iGS+5HacQ2HnD-IN is a high-performance desktop and rackmount wireless router designed to serve as a robust core gateway for enterprise networks, multi-user offices, and high-bandwidth ISP deployments. Combining carrier-grade routing hardware with high-capacity quad-chain wireless capabilities, it delivers exceptional throughput and low-latency packet processing across wired and wireless clients.
At its core, the device is driven by an Annapurna Labs Alpine AL21400 quad-core ARM 32-bit processor operating at 1.4 GHz, backed by 1 GB RAM and 512 MB NAND flash storage. The integrated hardware acceleration engine handles IPsec cryptographic operations at speeds exceeding 2 Gbps without overloading the primary CPU cores. The wireless system includes a quad-chain (4x4) 5 GHz radio supporting 802.11ac Wave 2 data rates up to 1733 Mbps, alongside a dual-chain (2x2) 2.4 GHz radio providing speeds up to 300 Mbps, supported by four external omnidirectional antennas.
For wired infrastructure, the router provides 10x Gigabit Ethernet RJ45 ports (split across two switch groups) and 1x 10G SFP+ cage for multi-gigabit optical fiber backhauls. Power options are highly flexible: it accepts direct DC power jack input or Passive PoE-in on Port 1 (18–57 V DC), while Port 10 offers Passive PoE-out to supply power to downstream network equipment. Housed in a solid, matte-black metal enclosure that acts as a passive heat sink, it includes rack ears for 1U equipment cabinet mounting and runs on RouterOS Level 5.
Comprehensive Key Features
Quad-Core 1.4 GHz ARM CPU: Enterprise-grade 32-bit ARM processor paired with 1 GB RAM easily manages heavy routing tables, firewall policies, and VPN tunnels.
4x4 Quad-Chain 5 GHz Wi-Fi (802.11ac Wave 2): High-speed 5 GHz wireless radio delivering up to 1733 Mbps wireless bandwidth over four external high-gain antennas.
10x Gigabit Ethernet Ports & 10G SFP+ Cage: High-density port arrangement providing 10 Gigabit RJ45 copper ports plus a 10 Gbps SFP+ cage for optical fiber trunks.
Hardware IPsec Encryption Offloading: Integrated crypto engine accelerates IPsec site-to-site and remote client VPN tunnels over 2 Gbps.
PoE-In & PoE-Out Support: Supports Passive PoE-in on Port 1 (18–57 V DC) and Passive PoE-out on Port 10 for powering secondary network hardware.
Heavy-Duty Metal Enclosure with Rack Ears: Durable black metal housing doubles as a passive heat sink and includes ears for standard 1U 19-inch rack installations.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RB4011iGS+5HacQ2HnD-IN
Dimensions: 0.228 m × 0.120 m × 0.030 m (228 × 120 × 30 mm)
Weight: 1.000 kg
CPU: Annapurna Labs Alpine AL21400 Quad-Core ARM 32-bit @ 1.4 GHz
RAM: 1 GB
Storage: 512 MB NAND
SFP+ Cages: 1× 10 Gbps SFP+ Port (supports 1.25G SFP and 10G SFP+ modules)
Console Port: 1× RJ45 Serial Console Port
Enclosure Material: Heavy-Duty Black Anodized Metal Casing (1U Rackmount ears included)
Status LEDs: Power, User LED, Port Link/Activity Indicators
2. Wireless, Networking & Performance Parameters
Wireless Standards: 2.4 GHz (802.11b/g/n dual-chain), 5 GHz (802.11a/n/ac Wave 2 quad-chain)
Antenna Gain: 2.4 GHz: 3 dBi; 5 GHz: 3 dBi (4x External Omnidirectional Antennas)
Max Wireless Data Rate: Up to 300 Mbps (2.4 GHz) + 1733 Mbps (5 GHz)
Ethernet Ports: 10× 10/100/1000 Mbps RJ45 Ports
PoE-In: Passive PoE on Port 1 (18 – 57 V DC)
PoE-Out: Passive PoE on Port 10 (Max output up to 600 mA at <30V, matches input voltage)
IPsec Hardware Acceleration: Supported (Up to 2+ Gbps)
Operating System: MikroTik RouterOS (License Level 5)
Architecture: ARM 32-bit
3. Electrical & Environmental Parameters
Power Method: Direct DC Power Jack (12 – 57 V DC) or Passive PoE-in on Port 1
Included Power Supply: 24 V DC / 2.5 A Power Adapter
Max Power Consumption: 44 W (23 W without attachments/PoE-out)
Cooling Type: Passive (Fanless)
Operating Temperature: -40°C to 45°C (-40°F to 113°F)
| brand | Mikrotik |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
