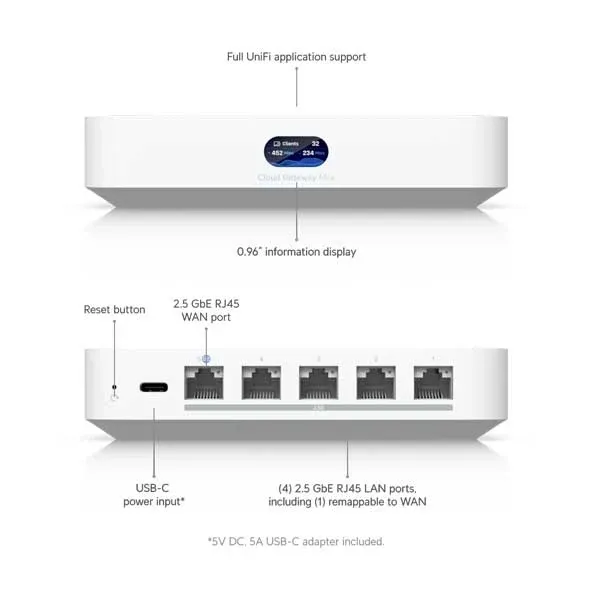

The Ubiquiti UniFi Cloud Gateway Max (Model: UCG-Max) is a compact, ultra-high-performance 2.5G desktop Cloud Gateway designed for high-density home networks, small-to-medium businesses, and remote branch offices. Powered by a quad-core ARM processor, this multi-gigabit gateway functions as a high-throughput router, advanced security gateway, and centralized application server running the full UniFi Application Suite (Network, Protect, Access, Talk, and Connect) without requiring a Cloud Key.
Featuring multi-gigabit performance across all interfaces, the UCG-Max includes (1) 2.5 GbE RJ45 WAN port and (4) 2.5 GbE RJ45 LAN ports, delivering complete 2.5 Gbps routing and full Layer 7 threat management up to 1.5 Gbps. Engineered for high performance and surveillance storage flexibility, it includes a built-in status display, scalable NVMe SSD storage options for UniFi Protect NVR recording, and flexible USB-C power delivery.
Comprehensive Key Features:
Full 2.5 GbE Multi-Gigabit Connectivity: Features (1) 2.5 GbE WAN port and (4) 2.5 GbE LAN ports for high-bandwidth internet plans and bottleneck-free local network traffic.
Complete UniFi Application Suite: Hosts UniFi Network, Protect, Access, Talk, and Connect applications directly on the gateway without external hardware.
Integrated NVMe SSD NVR Storage: Includes high-speed NVMe SSD storage support for instant video surveillance recording and playback in UniFi Protect.
Enterprise Threat Management: Features an application-aware Layer 7 firewall with integrated Intrusion Detection and Prevention Systems (IDS/IPS) delivering up to 1.5 Gbps threat inspection throughput.
High Device & Client Capacity: Engineered to manage 30+ UniFi network devices and up to 300+ connected client devices simultaneously.
Real-Time Status Display: Integrated 0.96" LCM status screen provides instant visual telemetry, system information, and bandwidth monitoring.
Compact Desktop Design: Extremely small footprint housed in a durable polycarbonate enclosure powered by a universal USB-C power adapter.
Extended Technical Specifications:
Hardware & Physical Parameters:
Model / SKU: UCG-Max (UniFi Cloud Gateway Max)
Dimensions: 141.8 x 127.6 x 30 mm (5.58 x 5.02 x 1.18")
Weight: 520 g (1.15 lb)
Enclosure Material: Polycarbonate
Processor: Quad-Core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 3 GB DDR4
Storage Options: Available with 512 GB / 1 TB / 2 TB NVMe SSD (or No Storage base model)
Display: 0.96" Status LCM Display
Wireless, Networking & Performance Parameters:
WAN Interfaces: (1) 2.5 GbE RJ45 Port
LAN Interfaces: (4) 2.5 GbE RJ45 Ports
IDS/IPS Throughput: 1.5 Gbps (measured with iPerf3)
Router Capacity: 2.5 Gbps Line-Rate Routing
Managed Devices: 30+ UniFi Devices
Managed Clients: 300+ Concurrent Users
Management Interfaces: Ethernet, Bluetooth
Electrical & Environmental Parameters:
Power Method: USB Type-C (5V DC / 5A)
Power Supply: 5V DC, 5A USB-C Power Adapter (Included)
Max. Power Consumption: 16.1W
Supported Voltage Range: 100 to 240V AC (via Power Adapter)
ESD/EMP Protection: Air: ±8 kV, Contact: ±4 kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
| brand | Ubiquiti |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
