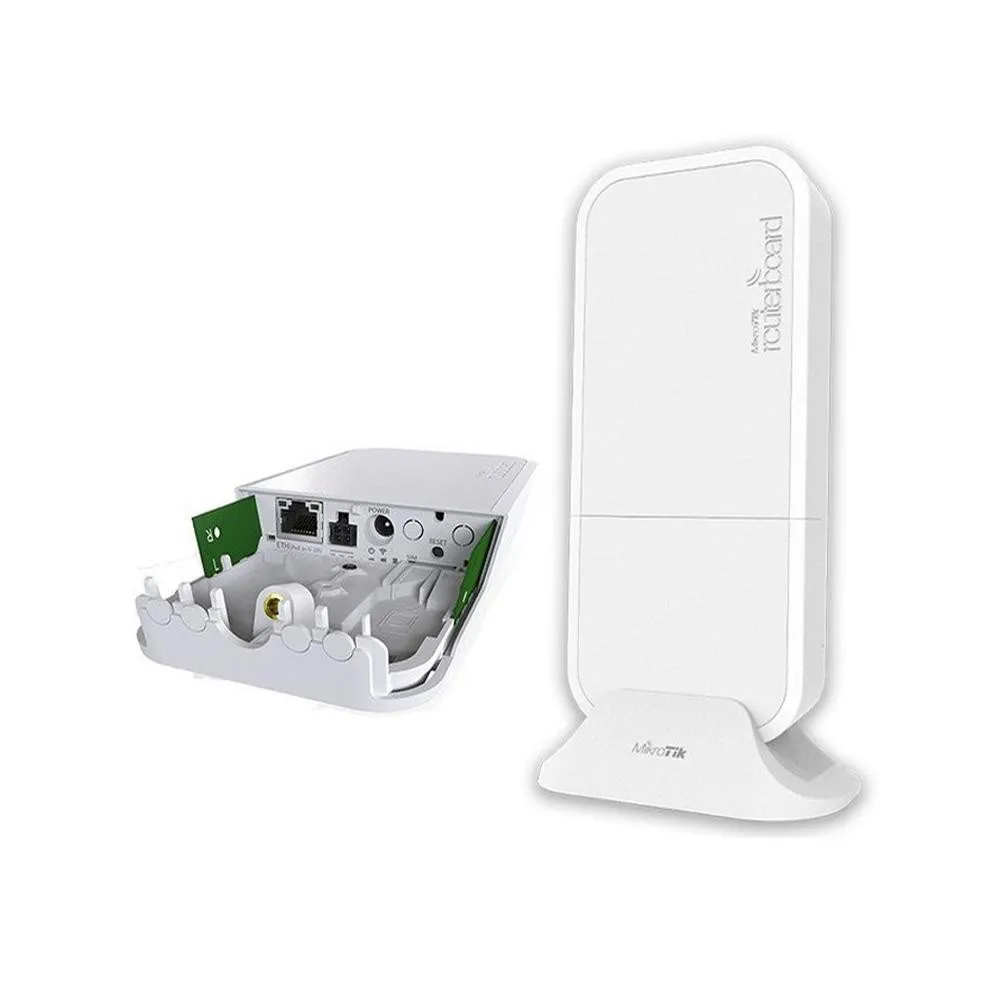

The MikroTik wAP LTE kit (Model: RBwAPR-2nD&R11e-LTE) is a small, weatherproof wireless access point designed to provide internet connectivity in places where fixed line infrastructure is unavailable or unreliable. Built for mounting on exterior walls, poles, vehicles (buses, trains, cars), or remote outdoor equipment sites, it acts as a self-contained cellular-to-Wi-Fi gateway.
At its core, the device is driven by a Qualcomm QCA9531 single-core processor operating at 650 MHz, paired with 64 MB RAM and 16 MB flash storage. The pre-installed R11e-LTE miniPCIe modem connects to international 2G, 3G, and 4G LTE Category 4 networks, providing download speeds up to 150 Mbps and upload speeds up to 50 Mbps. The local wireless subsystem offers dual-chain 2.4 GHz 802.11b/g/n Wi-Fi with integrated 2 dBi omnidirectional antennas for mobile client access.
Engineered for extreme environments, the wAP LTE kit features an IP54-rated UV-resistant enclosure capable of withstanding temperatures from -40°C to 60°C. Power flexibility is a key hallmark: it can be powered via standard Passive PoE-in (9–30 V DC) on its 10/100 Ethernet port, a direct DC power jack, or a 4-pin automotive power connector designed specifically for vehicle battery installations. Running on MikroTik RouterOS Level 4, it provides complete administrative control over firewall policies, encrypted VPN tunnels, client user limits, and automated failover setups.
Comprehensive Key Features
Integrated LTE Category 4 Modem: Factory-fitted R11e-LTE miniPCIe card delivers up to 150 Mbps download and 50 Mbps upload speeds over 2G, 3G, and 4G networks.
Dual-Chain 2.4 GHz Wi-Fi: Provides integrated 802.11b/g/n wireless connectivity for local laptops, smartphones, and IoT devices.
IP54 Weatherproof Enclosure: Compact, UV-stabilized outdoor casing designed for direct outdoor wall, pole, or vehicle chassis mounting.
Automotive Power Connector: Includes a dedicated 4-pin automotive DC connector alongside a traditional DC jack and PoE input for vehicle deployments.
Dual SIM Slots: Equipped with 2x Micro SIM slots for dynamic cellular carrier failover and roaming switching.
RouterOS L4 Enterprise Suite: Powered by RouterOS Level 4, supporting advanced firewall rules, VPN gateway services, bandwidth queues, and network monitoring.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RBwAPR-2nD&R11e-LTE (wAP LTE kit)
Dimensions: 0.185 m × 0.085 m × 0.030 m (185 × 85 × 30 mm)
Weight: 0.350 kg (350 g)
CPU: QCA9531 Single-Core @ 650 MHz
RAM: 64 MB
Storage: 16 MB Flash
Cellular Interface: 1× miniPCIe slot with R11e-LTE card pre-installed
SIM Slots: 2× Micro SIM Slots
Enclosure Material: Weatherproof UV-Stabilized Plastic Housing (IP54 Rated)
Included Accessories: 24 V 0.8 A Power Adapter, PoE Injector, Automotive Adapter Cable, Mounting Brackets, Hose Clamp
2. Wireless, Networking & Performance Parameters
Cellular Category: LTE Category 4 (150 Mbps Downlink, 50 Mbps Uplink)
Supported LTE Bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900MHz) / 20 (800MHz) / 38 (2600MHz) / 40 (2300MHz)
Wireless Standards: 2.4 GHz (802.11b/g/n dual-chain)
Antenna Gain: 2.4 GHz: 2 dBi; LTE Antenna: 2–4.5 dBi (u.FL internal connections)
Ethernet Ports: 1× 10/100 Mbps RJ45 Port
Operating System: MikroTik RouterOS (License Level 4)
Architecture: MIPSBE
3. Electrical & Environmental Parameters
Power Method: 4-pin Automotive Connector, DC Power Jack (9 – 30 V DC), or Passive PoE-in
Included Power Supply: 24 V DC / 0.8 A Power Adapter
Max Power Consumption: 8 W
Cooling Type: Passive
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
| brand | Mikrotik |
