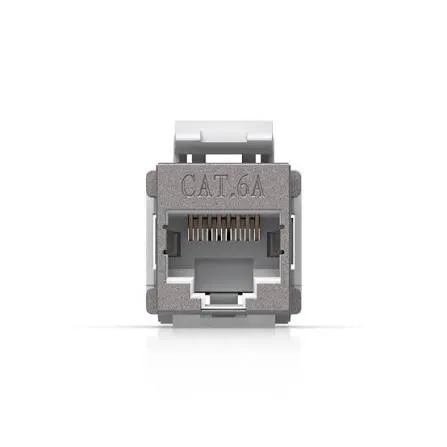

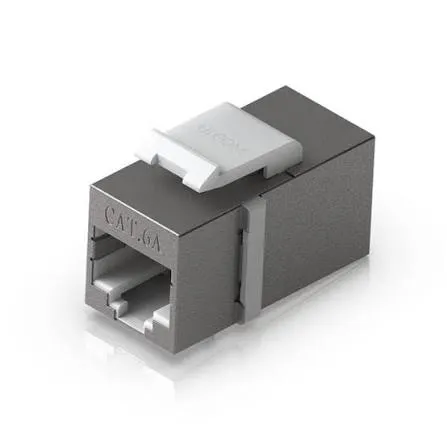

The Ubiquiti UniFi Cat6A RJ45 Keystone Coupler (Model: UACC-Keystone-Coupler-C6A, 12-Pack) is an enterprise-grade inline RJ45 feedthrough module designed to streamline patch panel wiring, Ethernet extension runs, and rack cable management. Engineered specifically to fit standard keystone patch panels, blank UniFi rack panels, and wall faceplates, it allows network installers to connect pre-terminated Cat6A patch cables without needing time-consuming punch-down tools.
Built with a fully shielded, die-cast zinc-alloy shell, the UACC-Keystone-Coupler-C6A provides continuous 360-degree shielding against Electromagnetic Interference (EMI), Radio Frequency Interference (RFI), and alien crosstalk (AXT). It supports full Category 6A performance standards, enabling reliable 10 Gigabit Ethernet (10GBASE-T) transmission over distances up to 100 meters. Featuring 50-micron gold-plated RJ45 contact pins and robust retention clips, the coupler ensures low insertion loss, high return loss margin, and uninterrupted power delivery for high-power Power over Ethernet (PoE/PoE+/PoE++) applications.
Comprehensive Key Features:
12-Piece Value Pack: Includes 12 high-performance Cat6A female-to-female inline keystone couplers for multi-port patch panel population.
10 Gbps Category 6A Performance: Tested and rated for 10GBASE-T high-speed data transmission up to 500 MHz channel bandwidth.
Fully Shielded Metallic Enclosure: Heavy-duty die-cast zinc casing protects signals from EMI/RFI noise and alien crosstalk.
Toolless Feedthrough Design: Female RJ45 ports on both front and rear enable fast, plug-and-play installation without wire stripping or punch-down tools.
Standard Keystone Compatibility: Snaps securely into standard keystone patch panels, UniFi blank panels, and wall faceplates.
PoE / PoE+ / PoE++ Compliant: Gold-plated contacts engineered to support high-wattage Power over Ethernet without contact erosion or resistance degradation.
Seamless UniFi Rack Integration: Matches the precision hardware aesthetic of UniFi rackmount networking enclosures.
Extended Technical Specifications:
1. Hardware & Physical Construction:
Model / SKU: UACC-Keystone-Coupler-C6A (UniFi Cat6A RJ45 Keystone Coupler - 12 Pack)
Quantity per Pack: 12 Units
Connector Type: Female RJ45 to Female RJ45 (Inline Feedthrough)
Performance Rating: Category 6A (ANSI/TIA-568-C.2 / ISO/IEC 11801 Class EA)
Supported Transmission Speeds: 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps
Frequency Rating: Up to 500 MHz
Shielding Type: Fully Shielded Die-Cast Zinc Alloy (STP / FTP Compliant)
Contact Plating: 50-Micron Gold Plating over Nickel
PoE Compatibility: IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++ / 90W)
2. Environmental Parameters:
Insertion Durability: 750+ Mating Cycles Minimum
Operating Temperature: -10°C to 60°C (14°F to 140°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Certifications: CE, FCC, IC, RoHS Compliant, TIA/EIA-568-C.2
