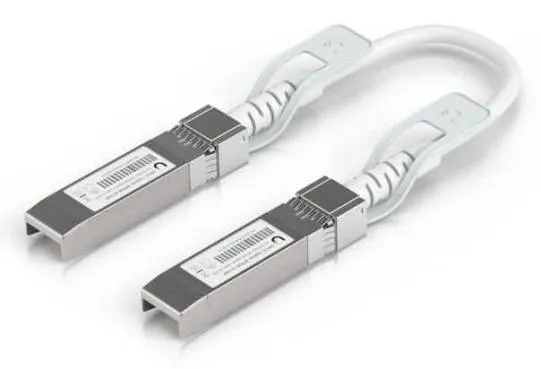

Ubiquiti Uplink Cable – 0.15m SFP28 DAC Cable
Ubiquiti Uplink Cable (UACC-Uplink-SFP28-0.15M) is a 0.15 m white DAC cable designed to connect devices equipped with SFP28, SFP+, or SFP interfaces.
SFP28 connectors on both ends support data transmission speeds of 25, 10, or 1 Gbps. The Auto Link Optimization feature automatically adjusts the connection speed to match port capabilities, allowing the cable to connect UniFi devices equipped with SFP ports of different speeds, e.g., 1 Gbps and 25 Gbps.
The 0.15 m version utilizes copper conductors and is intended primarily for short interconnections between devices mounted in the same rack cabinet. The cable features a white PVC jacket with an outer diameter of 4.5 mm, and a minimum bend radius of 23 mm. The cable is also available in lengths of: 0.3m / 3m / 30m. The 0.15 m variant is also available in a pack of ten.
Technical Specifications
| Auto Link Optimization | Yes |
| Supported Data Rate | 25 Gbps 10 Gbps 1 Gbps |
| Cable Type | Copper |
| Connector Type | SFP28–SFP28 |
| Jacket Color | White |
| Jacket Material | PVC |
| Jacket Outer Diameter | 4.5 mm (0.18″) |
| Bend Radius | Min. 23 mm (0.9″) |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
