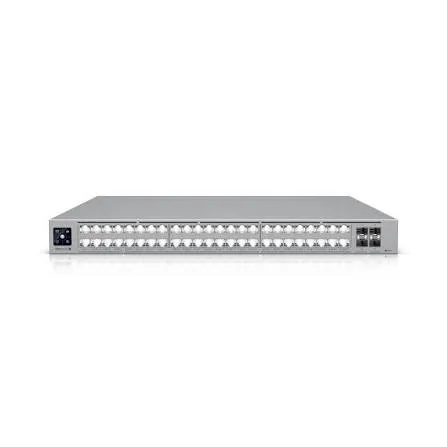

The Ubiquiti UniFi Switch Pro XG 48 PoE 1080W (Model: USW-Pro-XG-48-PoE) is a high-capacity Layer 3 Multi-Gigabit managed switch designed to power high-density enterprise networks, Wi-Fi 6/6E/7 access point arrays, high-definition IP video surveillance, and high-performance server clusters. Featuring 48 10GbE RJ45 ports and 4 25G SFP28 optical uplink ports, the switch provides continuous 10 Gbps speeds across all ethernet drops to completely prevent network bottlenecks.
This upgraded edition delivers an extended total PoE power budget of 1080W, distributing power via 32 802.3at PoE+ ports (up to 30W per port) and 16 high-power 802.3bt PoE++ ports (up to 60W per port) for power-hungry endpoint hardware. Operating on UniFi Network software, the unit provides hardware-accelerated Layer 3 features, including inter-VLAN routing, static routing, and localized DHCP functionality. Front-panel telemetry is supplied via a 1.3" LCM touchscreen display, while continuous power reliability is guaranteed through USP-RPS redundant DC input support.
Comprehensive Key Features:
48x Multi-Gigabit 10G Ports: Features 48 10GbE RJ45 ports delivering 10 Gbps full-duplex connections across every port.
4x 25G SFP28 Optical Uplinks: Equipped with (4) 25G SFP28 ports for ultra-high-speed core switch backhaul and server aggregation.
Expanded 1080W PoE Budget: Provides a high-capacity 1080W PoE power budget across (32) 802.3at PoE+ and (16) 802.3bt PoE++ ports.
Advanced Hardware Layer 3 Switching: Supports hardware-based inter-VLAN routing, static routing, and local DHCP server management.
USP-RPS Power Redundancy: Features a dedicated USP-RPS DC input port for external failover power integration.
1.3" LCM Color Touchscreen: Integrated display provides real-time status feedback, port monitoring, and visual device troubleshooting.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: USW-Pro-XG-48-PoE (UniFi Switch Pro XG 48 PoE 1080W)
Dimensions: 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight: Without Brackets: 6.20 kg (13.67 lbs) | With Brackets: 6.30 kg (13.89 lbs)
Enclosure Material: SGCC Steel
Form Factor: 1U Rackmount (Rackmount Kit Included)
Display: 1.3" LCM Color Touchscreen
2. Networking & Operational Parameters:
Total Network Interfaces: (48) 10GbE RJ45 Ports, (4) 25G SFP28 Ports
PoE Interfaces: (32) Ports 1–32 802.3af/at PoE+ | (16) Ports 33–48 802.3bt PoE++
Total Non-Blocking Throughput: 580 Gbps
Switching Capacity: 1.16 Tbps
Forwarding Rate: 863 Mpps
ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
3. Electrical & Environmental Parameters:
Power Method: 100–240V AC, 50/60 Hz Universal Input / USP-RPS DC Input (52V DC, 20.76A)
Power Supply: Internal 1200W AC/DC Power Supply
Max. Power Consumption: 120W (Excluding PoE Output)
Total Available PoE Budget: 1080W
Max. PoE Wattage per Port: PoE+: 30W | PoE++: 60W
Ambient Operating Temperature: -5°C to 40°C (23°F to 104°F)
Ambient Operating Humidity: 10% to 90% Non-condensing
Certifications: CE, FCC, IC
