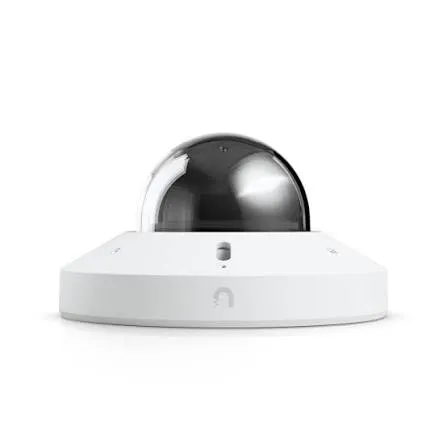

The Ubiquiti UniFi Protect G6 Mini Dome Camera (Model: UVC-G6-Mini-Dome) is a low-profile, high-performance 4K AI security camera engineered for high-density environments requiring ultra-discreet surveillance. Built around a premium 1/1.8" 8MP image sensor delivering 3840 x 2160 UHD video at 30 frames per second, it provides exceptional optical performance, high dynamic range (HDR), and sharp detail across diverse lighting conditions.
Equipped with a powerful multi-TOPS AI processing engine, the UVC-G6-Mini-Dome supports real-time edge detections including person, vehicle, animal, face, and license plate recognition. Its compact aluminum alloy form factor provides IK08 vandal resistance, making it ideal for indoor or sheltered outdoor installations. Featuring two-way audio communication, built-in IR night vision up to 20 meters, and standard PoE operation, the G6 Mini Dome connects directly into the UniFi Protect ecosystem for centralized continuous video recording.
Comprehensive Key Features:
Ultra-Compact 4K Surveillance: 1/1.8" 8MP sensor delivering smooth 3840 x 2160 resolution video at 30 FPS with High Dynamic Range (HDR).
Next-Gen AI Event Analytics: Multi-TOPS AI engine supporting face recognition, license plate reading, and smart detections (people, vehicles, animals).
IK08 Vandal Protection: Durable aluminum alloy enclosure with an IK08 tamper-resistant dome cover for secure mounting.
20m Infrared Night Vision: Integrated high-power IR LEDs with automatic IR-cut filter deliver black-and-white night vision up to 20 meters (65 ft).
Two-Way Audio: Built-in microphone and speaker array for real-time remote audio communication.
Single-Cable PoE Installation: Powered via standard 802.3af PoE (37–57V DC) over a single 10/100 Mbps RJ45 connection.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UVC-G6-Mini-Dome / UVC-G6-Mini-Dome-W (UniFi Protect G6 Mini Dome Camera)
Dimensions: Ø100.8 x 56.0 mm (Ø4.0 x 2.2")
Weight: 254 g (9.0 oz)
Enclosure Material: Aluminum Alloy, Polycarbonate
Mounting: Ceiling and Wall Mount (Included)
Vandal Resistance: IK08
2. Video, Optics & Audio Parameters:
Sensor: 1/1.8" 8MP CMOS Sensor
Resolution: 4K UHD 3840 x 2160 (16:9) at 30 FPS
Field of View: H: 109.9°, V: 56.7°, D: 134.1°
Night Vision: Integrated IR LED illumination with Mechanical IR Cut Filter (20 m / 65 ft Range)
Audio: Integrated Two-Way Audio (Microphone and Speaker)
AI Analytics: Face Recognition, License Plate Recognition, Smart Detections (People, Vehicles, Animals)
3. Electrical & Environmental Parameters:
Power Method: PoE
Supported Voltage Range: 37 to 57V DC
Max. Power Consumption: 9W
Networking Interface: (1) 10/100 MbE RJ45 Port
Ambient Operating Temperature: -20°C to 40°C (-4°F to 104°F)
Ambient Operating Humidity: 0% to 90% Non-condensing
Certifications & Compliance: CE, FCC, IC, NDAA Compliant
