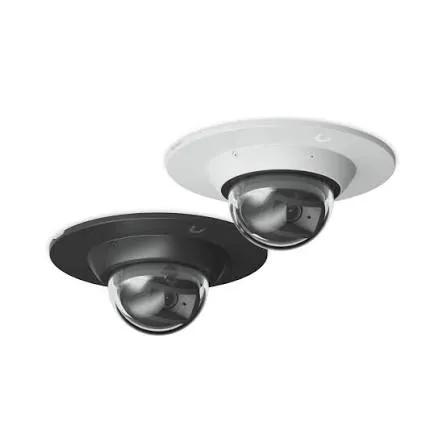

The Ubiquiti UniFi AI Flush Mount (Model: UACC-AI-Flush-Mount) is a specialized mounting accessory designed to integrate Ubiquiti AI-series cameras into ceiling structures with minimal visual impact. Ideal for high-end retail, corporate offices, hospitality, and modern architectural spaces, this accessory allows the camera to sit nearly flush with the ceiling surface, leaving only the lens assembly visible.

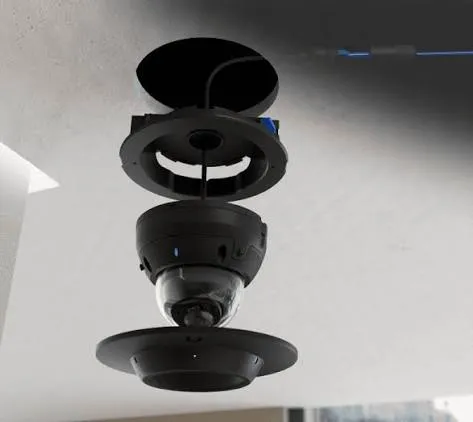

Engineered for straightforward deployment, the UACC-AI-Flush-Mount features a spring-tensioned locking system that firmly anchors the assembly into drop-ceiling tiles or drywall cutouts without requiring complex structural modification. Manufactured from high-strength, flame-retardant polycarbonate with a clean matte white finish, it preserves the sleek aesthetics of the space while maintaining rigid mechanical support and access for cabling.
Comprehensive Key Features:
Low-Profile Architectural Integration: Recesses the camera body into the ceiling to provide a clean, unobtrusive installation.
Spring-Loaded Retention Clamp: Built-in spring arms ensure a firm, tool-less grip against ceiling tiles and drywall sheets.
Durable Polycarbonate Construction: Made from UV-stabilized, high-impact plastic matched to UniFi hardware finishes.
Versatile Ceiling Compatibility: Designed for installation in acoustic drop-ceiling tiles, drywall, or plasterboards.
Seamless Cable Management: Integrated rear cutout allows unobstructed Ethernet cable routing and connector strain relief.
Extended Technical Specifications:
1. Hardware & Physical Parameters:
Model / SKU: UACC-AI-Flush-Mount (UniFi AI Flush Mount)
Dimensions: Outer Diameter: Ø180.0 mm (Ø7.09") | Depth: 65.0 mm (2.56")
Ceiling Cutout Diameter: Ø155.0 mm (Ø6.10")
Weight: 310 g (10.9 oz)
Enclosure Material: Polycarbonate, Stainless Steel Retention Springs
Color: White
Mounting Type: In-Ceiling Flush Mount / Drop-Ceiling Recessed
2. Compatibility & Operational Parameters:
Supported Devices: UniFi AI Theta Series, Compatible UniFi Dome / AI Cameras
Supported Ceiling Thickness: 6.0 mm to 25.0 mm (0.24" to 0.98")
Installation Environment: Indoor / Dry Location Use
Ambient Operating Temperature: -10°C to 40°C (14°F to 104°F)
Certifications: RoHS Compliant
