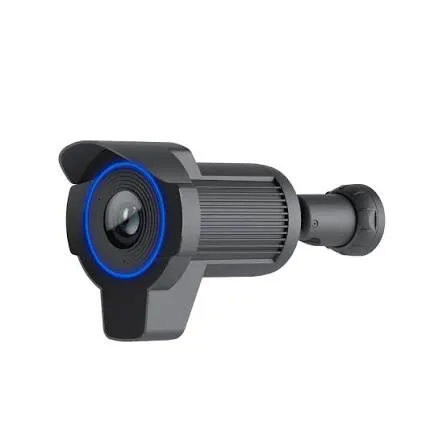

The Ubiquiti UniFi Protect AI LPR Camera (Model: UVC-AI-LPR) is an advanced optical recognition bullet camera purpose-built to deliver accurate vehicle license plate capture across entry gates, parking facilities, and high-speed roadway checkpoints. Built around a large 1/1.8" 8MP image sensor, the camera records 4K Ultra HD video at 30 frames per second, ensuring fine optical detail even in challenging low-light or high-glare environments.
Equipped with an integrated multi-TOPS AI edge processor, the camera automatically isolates, extracts, and logs license plate characters, vehicle makes, models, and colors without requiring an external processing server. Its optical assembly includes high-intensity specialized IR LEDs designed to overcome headlight glare and retroreflective plate reflections at distances up to 20 meters (65 ft). Housed in an IP65-rated weatherproof aluminum alloy casing, the camera features an integrated microphone and single-cable 802.3af PoE operation, managed centrally through the UniFi Protect software ecosystem.
Comprehensive Key Features:
Automated License Plate Recognition (LPR): Dedicated AI edge engine for real-time plate OCR logging on vehicles traveling up to 100 km/h (62 mph).
4K Ultra HD Sensor: 1/1.8" 8MP CMOS image sensor capturing 3840 x 2160 resolution video at 30 FPS with High Dynamic Range (HDR).
Anti-Glare High-Power IR Illumination: Specialized long-range infrared matrix designed to neutralize headlight glare and capture reflective license plates in total darkness.
Vehicle Attribute Analytics: Identifies and indexes vehicle type, color, and motion direction in addition to license plate numbers.
IP65 Weatherproof Housing: Durable aluminum alloy enclosure engineered for extreme outdoor temperatures and ambient weather exposure.
Single-Cable PoE Integration: Powered via standard 802.3af PoE over a single Gigabit RJ45 Ethernet link.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UVC-AI-LPR (UniFi Protect AI LPR / AI Bullet Long-Range)
Dimensions: Ø86.0 x 191.7 mm (Ø3.39 x 7.55")
Weight: 730 g (1.61 lbs)
Enclosure Material: Aluminum Alloy, Polycarbonate
Mounting: Wall / Pole Mount (Hardware Included)
Ingress Protection: IP65 Weatherproof
Vandal Resistance: IK04
2. Video, Optics & AI Parameters:
Sensor: 1/1.8" 8MP CMOS Sensor
Resolution: 4K UHD 3840 x 2160 (16:9) at 30 FPS
Field of View: H: 84°, V: 47°, D: 98°
Night Vision: High-Power Specialized LPR IR LEDs with IR Cut Filter
Capture Speed Range: Up to 100 km/h (62 mph)
Optimal LPR Distance: 5 m to 20 m (16 to 65 ft)
Audio: Integrated Microphone
AI Analytics: License Plate Recognition (LPR/ANPR), Vehicle Type / Color Classification, Smart Detections (People, Vehicles)
3. Electrical & Operational Parameters:
Power Method: 802.3af PoE
Supported Voltage Range: 37 to 57V DC
Max. Power Consumption: 11W
Networking Interface: (1) GbE RJ45 Port
Management Application: UniFi Protect
Ambient Operating Temperature: -30°C to 50°C (-22°F to 122°F)
Ambient Operating Humidity: 10% to 90% Non-condensing
Certifications & Compliance: CE, FCC, IC, NDAA Compliant
