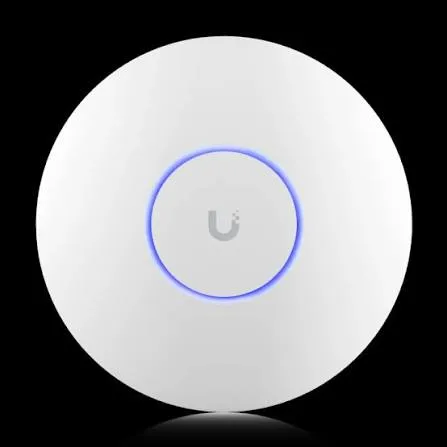

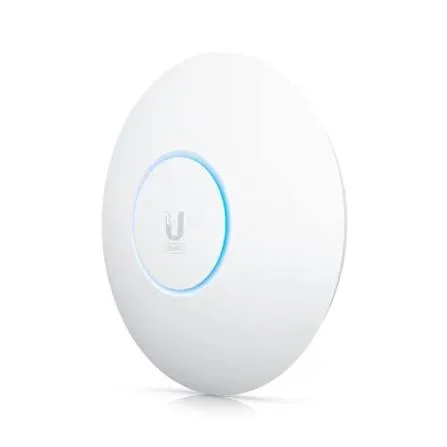

The Ubiquiti UniFi Access Point U6 Enterprise (Model: U6-Enterprise) specification description follows:
The Ubiquiti UniFi Access Point U6 Enterprise (Model: U6-Enterprise) is a high-density, enterprise-grade Wi-Fi 6E (802.11ax) access point engineered to deliver multi-gigabit wireless performance and expansive client capacity across complex corporate environments. Operating simultaneously across the 2.4 GHz, 5 GHz, and 6 GHz spectrum bands, the access point leverages pristine 6 GHz wireless channels to maximize data throughput and minimize network congestion in high-concurrency deployments.
Featuring a 10 spatial stream architecture (2x2 MIMO on 2.4 GHz, 4x4 MIMO on 5 GHz, and 4x4 MIMO on 6 GHz), the U6-Enterprise achieves an aggregate wireless throughput rate of up to 10.2 Gbps. Equipped with a 2.5 GbE multi-gigabit Ethernet uplink supporting Power over Ethernet (PoE+), it incorporates 160 MHz channel bandwidth support, OFDMA, MU-MIMO, and centralized control via the UniFi Network Application.
Comprehensive Key Features:
- Tri-Band Wi-Fi 6E Enterprise Performance: Simultaneously operates across 2.4 GHz, 5 GHz, and 6 GHz spectrum bands to optimize overall network capacity and client distribution.
- 10.2 Gbps Aggregate Wireless Speed: Delivers up to 573.5 Mbps on 2.4 GHz, 4.8 Gbps on 5 GHz, and 4.8 Gbps on 6 GHz for high-bandwidth application traffic.
- 10 Spatial Stream MIMO Architecture: Features 2x2 MIMO on 2.4 GHz, 4x4 MIMO on 5 GHz, and 4x4 MIMO on 6 GHz to support over 600 concurrent active client devices.
- 160 MHz Channel Bandwidth Support: Utilizes ultra-wide 160 MHz channels on the 5 GHz and 6 GHz frequencies to maximize link speeds for Wi-Fi 6/6E clients.

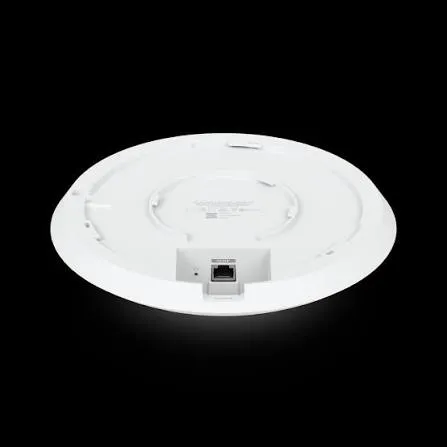

- 2.5 GbE Multi-Gigabit PoE+ Uplink: Equipped with (1) 2.5 GbE RJ45 port supporting 802.3at PoE+ to eliminate wired backhaul bottlenecks.
- High-Density Client Concurrency: Engineered for environments requiring seamless connectivity for 600+ connected devices simultaneously.
- Centralized UniFi Network Integration: Managed through the UniFi Network Application for centralized site deployment, dynamic channel selection, guest isolation, and real-time monitoring.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: U6-Enterprise (UniFi Access Point U6 Enterprise)
- Dimensions: Ø220 x 48.1 mm (Ø8.66 x 1.89")
- Weight: 960 g (2.12 lb) | With Mounting Bracket: 1.09 kg (2.40 lb)
- Enclosure Material: Polycarbonate, Aluminum Alloy
- Mount Material: SGCC Steel Wall / Ceiling Mounting Plate (Included)
- Status LEDs: System Status Ring (RGB)
- Buttons: Factory Reset
- Wireless, Networking & Performance Parameters:
- Wi-Fi Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6/6E)
- Spatial Streams: 10 Total Streams | 2.4 GHz: 2x2 | 5 GHz: 4x4 | 6 GHz: 4x4
- Radio Bands & Max. Rates: 2.4 GHz: 573.5 Mbps | 5 GHz: 4.8 Gbps | 6 GHz: 4.8 Gbps
- Antenna Gain: 2.4 GHz: 3.2 dBi | 5 GHz: 5.3 dBi | 6 GHz: 6 dBi
- Max. TX Power: 2.4 GHz: 22 dBm | 5 GHz: 26 dBm | 6 GHz: 26 dBm
- Concurrent Clients: 600+ Active Clients
- Networking Interface: (1) 1/2.5 Gbps Ethernet RJ45 Port
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- Electrical & Environmental Parameters:
- Power Method: 802.3at PoE+ (Pairs 1, 2+; 3, 6- or Pairs 4, 5+; 7, 8-)
- Power Supply: 48V PoE+ Switch or 2.5G PoE Injector (Not Included)
- Max. Power Consumption: 22W
- Supported Voltage Range: 44 to 57V DC
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Regulatory Certifications: CE, FCC, IC
