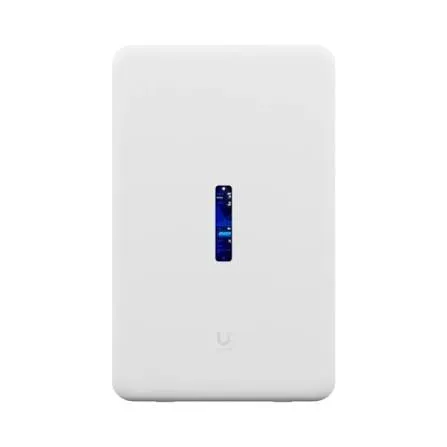

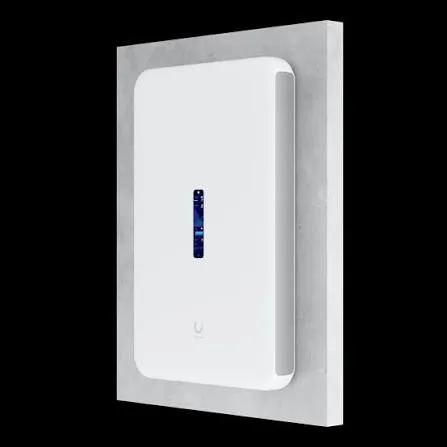

The Ubiquiti UniFi Dream Wall (Model: UDW) is a revolutionary wall-mounted enterprise network console designed to centralize an entire IT infrastructure into a single, space-saving architectural unit. Combining an advanced multi-WAN security gateway, a high-density PoE switch, a high-performance Wi-Fi 6 access point, and a UniFi Protect video recorder into a slim wall-mount chassis, the Dream Wall serves as an all-in-one solution for modern offices, luxury residences, and retail spaces.
Powered by a quad-core ARM Cortex-A57 processor running at 2.0 GHz with 4 GB system memory, the UDW supports high-speed Routing with Threat Management (IPS/IDS) up to 3.5+ Gbps. Its built-in 17-port Gigabit/2.5G switch features 12 PoE-enabled ports (4x PoE, 4x PoE+, and 4x PoE++) backed by a massive 300W total PoE budget. The front panel incorporates an interactive 4.7" LCM color touchscreen for real-time network telemetry, status monitoring, and setup, while hot-swappable dual AC power supply bays deliver hardware-level power redundancy.
Comprehensive Key Features:
All-In-One Enterprise Console: Combines Gateway, Wi-Fi 6 AP, Switch, and UniFi Application Server in a single wall-mounted unit.
Integrated Wi-Fi 6 AP: Built-in dual-band Wi-Fi 6 (4x4 MU-MIMO) delivering up to 5.3 Gbps aggregate over-the-air throughput.
17-Port Switching Array with 300W PoE: Features (1) 2.5GbE RJ45 port, (12) GbE PoE/PoE+/PoE++ ports, and (4) standard GbE RJ45 ports.
Dual 10G SFP+ Uplinks: Equipped with (2) 10G SFP+ optical ports for WAN failover/load balancing or high-speed core interconnects.
4.7" LCM Color Touchscreen: Integrated high-resolution front display for visual telemetry, port status, and step-by-step installation.
Hot-Swappable Redundant Power: Includes dual hot-swappable 550W AC power supplies for uninterruptible power feed protection.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UDW (UniFi Dream Wall)
Dimensions: 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
Weight: Without Mount: 8.60 kg (18.96 lbs) | With Mount: 11.50 kg (25.35 lbs)
Enclosure Material: Polycarbonate, Aluminum Alloy, SGCC Steel
Mounting: Wall Mount (Mounting Plate & Hardware Included)
Display: 4.7" LCM Color Touchscreen Display
Processor: Quad-Core ARM® Cortex®-A57 at 2.0 GHz
System Memory: 4 GB DDR4
On-Board Storage: 128 GB eMMC, Pre-installed 512 GB microSD card
2. Networking, Wireless & Security Parameters:
WAN Interfaces: (1) 10G SFP+ Port, (1) 2.5GbE RJ45 Port
LAN Interfaces: (1) 10G SFP+ Port, (1) 2.5GbE RJ45 Port, (15) GbE RJ45 Ports
Wi-Fi Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Wi-Fi Antenna Gain: 2.4 GHz: 4.7 dBi | 5 GHz: 6 dBi
MIMO Radios: 2.4 GHz: 4x4 | 5 GHz: 4x4
IDS/IPS Throughput: 3.5+ Gbps
PoE Interfaces: (4) 802.3af PoE, (4) 802.3at PoE+, (4) 802.3bt PoE++
3. Electrical & Environmental Parameters:
Power Method: Dual Universal AC Inputs (100–240V AC, 50/60 Hz)
Power Supply: (2) Hot-Swappable 550W AC/DC Power Modules Included
Max. Power Consumption: 532W
Total Available PoE Budget: 300W
Max. Wattage per Port: PoE: 15.4W | PoE+: 30W | PoE++: 60W
Ambient Operating Temperature: -10°C to 40°C (14°F to 104°F)
Ambient Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC
