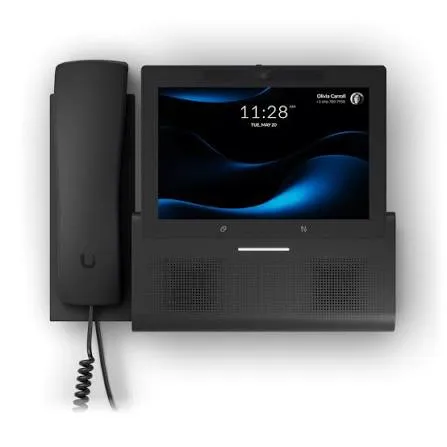

The Ubiquiti UniFi Phone G3 Touch Pro (Model: UTP-G3-Touch-Pro) is an enterprise-grade VoIP desktop smartphone designed to operate natively within the UniFi Talk platform while offering flexibility for third-party PBX setups via Talk Relay. Built on an Octa-Core ARM® Cortex®-A53 processor with 2 GB RAM and 32 GB storage, the phone runs a responsive touch interface on its vibrant 5-inch HD (720 \times 1280) multi-touch LCD display.
The device bridges audio and video communications, featuring an embedded 5 MP camera (2592 \times 1944) equipped with a physical slider shutter for complete privacy control. For superior voice clarity, it includes a hands-free speakerphone backed by dual omnidirectional MEMS microphones with acoustic noise suppression. Connectivity options include (2) GbE RJ45 ports with PoE input, 802.11ac Wi-Fi, Bluetooth 4.2 for general headset pairing, and dedicated Bluetooth 5.2 to support the optional G3 Wireless Handset.
Comprehensive Key Features:
5" HD Multi-Touch Screen: High-resolution 720 \times 1280 capacitive touchscreen with anti-glare treatment for intuitive navigation and call handling.
Integrated 5 MP Video Camera: Built-in 5 MP camera (2592 \times 1944) for high-definition video calling with a mechanical privacy shutter.
UniFi Talk Ecosystem & PBX Integration: Native single-pane deployment within UniFi Talk, with third-party PBX interoperability via Talk Relay.
Dual-Band Wireless & Dual GbE: Integrated 802.11a/b/g/n/ac Wi-Fi, Bluetooth 4.2/5.2, and dual Gigabit Ethernet ports with 802.3af PoE support.
HD Audio Architecture: High-performance 2W hands-free speakerphone paired with a dual omnidirectional MEMS microphone array for noise cancellation.
Flexible Headset & Handset Options: Includes an ergonomic wired handset with a mute button and supports 3.5 mm audio jack headsets and Bluetooth audio.
Extended Technical Specifications:
1. Hardware & Physical Parameters:
Model / SKU: UTP-G3-Touch-Pro
Form Factor / Mounting: Desktop Smartphone
Dimensions: 165.4 x 139.5 x 185.3 mm (6.5 x 5.5 x 7.3")
Weight: 1.0 kg (2.2 lbs)
Enclosure Material: Polycarbonate, Aluminum Alloy Base
Color: Black
Processor / Memory: Octa-Core ARM® Cortex®-A53 | 2 GB RAM | 32 GB Storage
2. Display, Camera & Audio Parameters:
Display Size / Type: 5" Diagonal Touchscreen (Anti-Glare Coated)
Display Resolution: 720 x 1280 HD
Camera Sensor: 5 MP (2592 x 1944) with Embedded Privacy Shutter
Hands-Free Speaker: Single 2W High-Performance Speaker
Microphone Array: Dual Omnidirectional MEMS Microphones
Audio Port: 3.5 mm (0.14") Audio Jack
3. Connectivity, Power & Environmental Parameters:
Wired Network Interfaces: (2) 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports
Wi-Fi Standard: 802.11 a/b/g/n/ac Dual-Band Wi-Fi
Bluetooth: Bluetooth® 4.2 (General / Headsets) | Bluetooth® 5.2 (G3 Wireless Handset)
Power Method / Consumption: 802.3af PoE (44–57V DC) | Max Power Consumption: 10W
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% Non-condensing
Certifications: FCC, IC, CE, Anatel
