The Fortinet FortiGate 90G is a powerful desktop security appliance designed to provide enterprise-grade protection, ultra-low latency, and advanced SD-WAN capabilities for distributed enterprise networks and branch offices. Driven by Fortinet's 5th generation SP5 (Security Processing Unit) technology, it delivers multi-gigabit threat inspection and energy-efficient performance.
Featuring dual integrated power supplies for high availability and high-speed 10GE SFP+ uplinks, the FG-90G integrates seamlessly into the Fortinet Security Fabric ecosystem to deliver full network visibility, automated policy enforcement, and zero-trust access control.
Comprehensive Key Features
SP5 Processor Acceleration: Powered by Fortinet's SP5 Security Processing Unit for hardware-accelerated security filtering and deep packet inspection.
Advanced Threat Protection: Delivers 4.5 Gbps IPS throughput, 2.5 Gbps NGFW performance, and 2.2 Gbps Threat Protection throughput.
Flexible Port Density & 10GE Uplinks: Features 8x GE RJ45 interfaces, 2x GE SFP slots, and 2x 10GE SFP+ slots for high-speed core switch connectivity.
Power Redundancy: Equipped with dual integrated power supplies for continuous operational reliability.
Integrated Secure SD-WAN: Enables dynamic WAN path control, self-healing cloud traffic steering, and application-aware routing.
1. Wireless, Networking & Performance Parameters

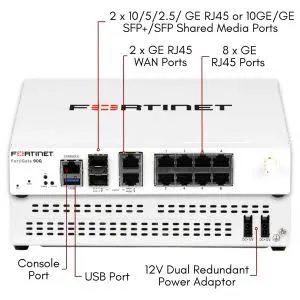

Ethernet Ports: 8 × GE RJ45 Ports (4 × Internal Ports, 2 × WAN Ports, 1 × DMZ Port, 1 × MGMT Port)
Fiber Ports: 2 × GE SFP Slots + 2 × 10GE SFP+ Slots
USB Ports: 1 × USB 3.0 Port
Firewall Throughput: 28 Gbps (1518 / 512 / 64 byte UDP packets)
IPS Throughput: 4.5 Gbps
NGFW Throughput: 2.5 Gbps
Threat Protection Throughput: 2.2 Gbps
Concurrent Sessions (TCP): 1,500,000 (1.5 Million)
New Sessions / Second: 85,000
IPsec VPN Throughput: 25 Gbps
2. Electrical & Environmental Parameters
Power Method: Universal AC Input (100–240V AC, 50–60 Hz)
Power Supply: Dual Built-in Power Supplies
Max Power Consumption: 20.1 W
Heat Dissipation: 68.6 BTU/hr
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% non-condensing
