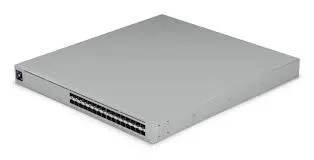

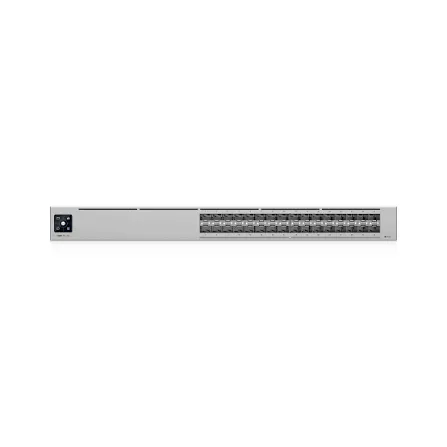

The Ubiquiti UniFi Switch Pro XG Aggregation (Model: USW-Pro-XG-Aggregation) is a high-capacity Layer 3 optical aggregation switch designed to serve as the core backbone for enterprise networks, server clusters, and multi-switch deployments. Equipped with 28 10G SFP+ ports and 4 25G SFP28 high-speed fiber uplinks, it delivers massive 760 Gbps switching bandwidth to eliminate network bottlenecks and streamline high-volume data distribution.
Engineered for enterprise reliability, the USW-Pro-XG-Aggregation features Layer 3 switching capabilities, including inter-VLAN routing, static routing, and localized DHCP server functions. Its 1U rackmount SGCC steel chassis includes a front-panel 1.3" LCM touchscreen for real-time status diagnostics and port telemetry. To guarantee continuous operational uptime, the switch supports power redundancy through a dedicated USP-RPS DC input, protecting the system against internal AC power supply disruptions.
Comprehensive Key Features:
28x 10G SFP+ Optical Ports: High-density 10G SFP+ fiber ports designed for multi-switch aggregation and server connectivity.
4x 25G SFP28 High-Speed Uplinks: Delivers ultra-high-speed 25 Gbps uplinks for core network backbones and high-bandwidth interconnects.
760 Gbps Switching Capacity: Full non-blocking throughput performance ensuring seamless processing of heavy concurrent data traffic.
Advanced Layer 3 Capabilities: Supports hardware-based inter-VLAN routing, static routes, and network isolation protocols.
USP-RPS Power Redundancy: Features a dedicated USP-RPS DC input port for failover power supply integration.
1.3" LCM Color Touchscreen: Integrated front-panel display provides instant visual status feedback, link statistics, and device diagnostics.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: USW-Pro-XG-Aggregation (UniFi Switch Pro XG Aggregation)
Dimensions: 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight: Without Brackets: 4.60 kg (10.14 lbs) | With Brackets: 4.70 kg (10.36 lbs)
Enclosure Material: SGCC Steel
Form Factor: 1U Rackmount (Rackmount Kit Included)
Display: 1.3" LCM Color Touchscreen
2. Networking & Operational Parameters:
Total Network Interfaces: (28) 10G SFP+ Ports, (4) 25G SFP28 Ports
Total Non-Blocking Throughput: 380 Gbps
Switching Capacity: 760 Gbps
Forwarding Rate: 565.44 Mpps
ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
3. Electrical & Environmental Parameters:
Power Method: 100–240V AC, 50/60 Hz Universal Input / USP-RPS DC Input (11.5V DC, 8.7A)
Power Supply: Internal 100W AC/DC Power Supply
Max. Power Consumption: 100W
Ambient Operating Temperature: -5°C to 40°C (23°F to 104°F)
Ambient Operating Humidity: 10% to 90% Non-condensing
Certifications: CE, FCC, IC
