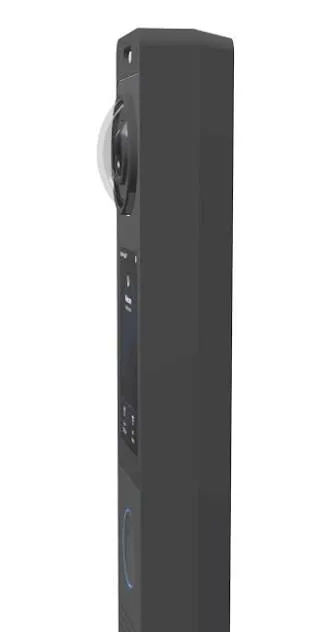

The Ubiquiti UniFi G6 Pro Entry (Model: UVC-G6-Pro-Entry) is an all-in-one smart access control reader and video doorbell designed for commercial buildings and high-security environments. Operating natively across both UniFi Protect and UniFi Access management applications, the device delivers full-spectrum entry security combining high-resolution visual monitoring with multi-factor identity authentication.
The unit features a main 12MP (3024 x 4096) Ultra HD portrait camera optimized for AI-driven Face ID authentication and high-clarity video, complemented by a downward-facing 8MP secondary camera for package monitoring. The front panel incorporates an interactive 3" capacitive multi-touch screen (1000 nits brightness) for digital keypads, visitor greetings, and custom interface designs. Supporting NFC cards/keyfobs, PIN entry, Bluetooth mobile unlock, and digital wallet passes, the G6 Pro Entry operates over a single PoE+ Ethernet connection housed within a durable aluminum enclosure rated IP55 weatherproof and IK07 tamper-resistant.
Comprehensive Key Features:
12MP Ultra HD Dual-Camera System: Primary 12MP camera for facial identification and entry recording paired with an 8MP secondary package camera.
Versatile Access Methods: Supports Face ID recognition, NFC cards/keyfobs, PIN entry, Mobile Unlock, and Apple/Google Wallet Touch Pass.
3" Capacitive Touch Display: High-brightness 1000 nits display providing intuitive visitor interactions, custom interfaces, and PIN input.
Native Protect & Access Integration: Operates simultaneously within UniFi Protect for 24/7 video recording and UniFi Access for door unlocking policies.
Two-Way Intercom Audio: Integrated high-gain speaker and microphone for live two-way communication.
PoE+ Single-Cable Operation: Powered via 802.3at PoE+ (18W max) delivering data and power over one RJ45 connection.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UVC-G6-Pro-Entry (UniFi G6 Pro Entry)
Dimensions: 220 x 49.3 x 29.6 mm (8.7 x 1.9 x 1.2")
Weight: 360 g (12.7 oz)
Enclosure Material: Aluminum
Mounting Materials: Stainless Steel Wall Mount, SGCC Steel Gangbox Mount Plate
Ingress Protection: IP55 Weatherproof
Tamper Resistance: IK07 Front Panel, LCM IK04
2. Optics, Video & Authentication Parameters:
Main Camera Sensor: 12MP CMOS Sensor (Resolution: 3024 x 4096 / 3:4 at 20 FPS or 2160 x 3840 / 9:16 at 30 FPS)
Package Camera Sensor: 8MP CMOS Sensor (Resolution: 3264 x 2448 / 4:3 at 3 FPS)
Main Camera Field of View: H: 100°, V: 136.3°, D: 176.4° (12MP)
Night Vision: Integrated IR LED illumination with mechanical IR cut filter (5 m / 16 ft range)
Display: 3" Capacitive Multi-Touch Screen (480 x 854 px, 1000 nits)
Authentication Modes: Face ID, NFC, PIN, Mobile App, Apple/Google Wallet Touch Pass
3. Electrical & Operational Parameters:
Power Method: 802.3at PoE+
Supported Voltage Range: 42 to 57V DC
Max. Power Consumption: 18W
Networking Interface: (1) GbE RJ45 Port
Wireless Connectivity: BLE 4.1, NFC
Ambient Operating Temperature: -30°C to 50°C (-22°F to 122°F)
Certifications & Compliance: CE, FCC, IC, UL 294, NDAA Compliant
