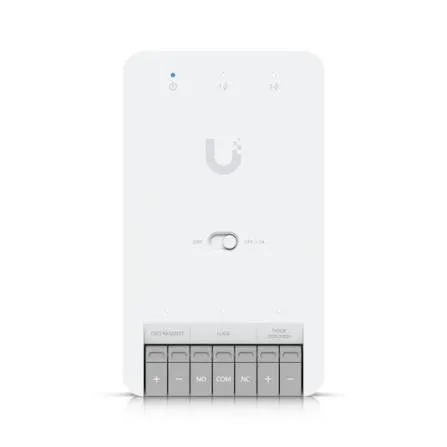

The Ubiquiti UniFi Access Single-Door Hub (Model: UA-Hub-Door) is a compact, intelligent physical access controller engineered to bring centralized access management and power distribution directly to individual entryways. Designed for corporate offices, educational facilities, healthcare institutions, and secure commercial spaces, the hub acts as the local connection point for all physical access control peripherals at the door.
Powered via a single high-power 802.3bt PoE++ Ethernet connection, the UA-Hub-Door distributes both data and power across its local ports, eliminating the need for dedicated external power supplies or complex AC wiring at the door location. It provides dedicated RJ45 PoE ports for connecting UniFi Access readers and UniFi Protect IP cameras, alongside organized, screwless terminal block connections for 12V powered or dry-contact electronic locks, request-to-exit (REX) devices, door position switches (DPS), and emergency alarm overrides. Managed seamlessly within the UniFi Access software application, it enables administrators to track access events in real time, set automated unlocking schedules, configure emergency fail-safe/fail-secure behaviors, and maintain strict physical security compliance.
Comprehensive Key Features:
Single-Door Control Architecture: Complete local controller managing (1) electronic door lock, (2) access readers, (1) UniFi Protect camera, (1) door position sensor, and (1) request-to-exit device.
802.3bt PoE++ Powered Deployment: Runs entirely on 802.3bt PoE++ power, supplying inline power to connected access readers, cameras, and 12V DC electric locks.
Powered & Dry Relay Outputs: Provides configurable 12V DC relay outputs (up to 1A) and dry contact outputs to control magnetic locks, electric strikes, or motorized gates.
Dedicated PoE Ports: Includes (3) PoE RJ45 ports dedicated to connecting UniFi Access Readers (UA-G3-PRO, UA-Ultra) and a UniFi Protect surveillance camera.
Integrated Safety & Auxiliary Inputs: Features dedicated terminal inputs for emergency alarm system tie-ins, door position sensors (DPS), and request-to-exit (REX) buttons.
DIN-Rail / Wall Mounting: Enclosure design allows for straightforward mounting onto standard DIN rails or flat indoor wall surfaces inside equipment enclosures.
Centralized UniFi Access Controller: Full remote administrative access, live door status tracking, detailed audit logs, and credential management via the UniFi Access application.
Extended Technical Specifications:
1. Hardware Architecture & Interfaces:
Model / SKU: UA-Hub-Door (UniFi Access Single-Door Hub)
Uplink / Management Interface: (1) 10/100/1000 Mbps RJ45 Port (802.3bt PoE++ Input)
PoE Passthrough Ports:
(2) 10/100/1000 Mbps RJ45 Access Reader Ports (PoE Output)
(1) 10/100/1000 Mbps RJ45 UniFi Protect Camera Port (PoE Output)
Terminal I/O Connections:
Powered Lock Relay Output: 12V DC (Up to 1A Total)
Dry Contact Lock Relay Output
Aux Powered / Dry Relay Outputs
(1) Door Position Switch (DPS) Input
(1) Request-to-Exit (REX) Input
(1) Emergency Input Line
Enclosure Material: Polycarbonate
Mounting Options: Standard DIN Rail Mount / Wall Mount
2. Power & Operational Parameters:
Power Input Method: 802.3bt PoE++ (50–57V DC)
Max. Power Consumption: 50 W (Including total lock output and connected reader/camera PoE loads)
Lock Relay Power Output: 12V DC, Max. 1A Total
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 5% to 90% Non-Condensing
Certifications: CE, FCC, IC
