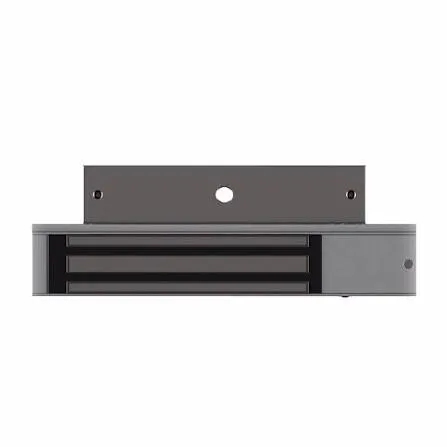

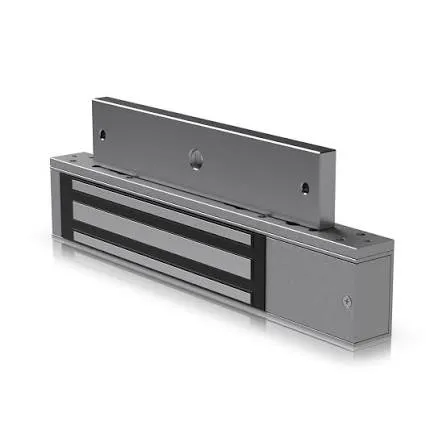

The Ubiquiti UniFi Access Magnetic Lock 270kg (Model: UACC-Lock-Magnetic-270kg) is a compact, high-reliability electromagnetic lock designed for secure interior access control deployments across office facilities, educational buildings, and commercial spaces. Engineered to integrate natively into the UniFi Access ecosystem, the lock operates without requiring dedicated third-party power supplies by drawing power directly from the 12V DC powered lock relays on UniFi Access Hubs.
Capable of maintaining up to 600 lbs (270 kg) of continuous holding force, the UACC-Lock-Magnetic-270kg is an ideal solution for single interior doors, wooden doors, glass partitions, and hollow metal door frames. Built strictly around fail-safe operational behavior, the electromagnet releases immediately when power is interrupted—ensuring full emergency egress and life-safety compliance during power failures or fire alarm triggers. Featuring an integrated magnetic bond sensor, the unit actively monitors lock integrity and reports live status (Locked, Unlocked, or Tamper Alert) to the central UniFi Access Controller.
Comprehensive Key Features:
600 lbs (270 kg) Holding Force: Delivers continuous 270 kg holding capacity suited for standard interior and commercial entry points.
Fail-Safe Security Operation: Unlocks automatically upon power loss to satisfy fire safety codes and emergency evacuation standards.
Direct UniFi Access Hub Integration: Powered and controlled via 12V DC relay output from UniFi Access Hubs (UA-Hub, UA-HUB-DOOR-MINI, EAH-8).
Integrated Bond State Sensor: Embedded sensor detects magnetic bond alignment and reports real-time door lock status to UniFi Access.
Anodized Aluminum Casing: High-durability corrosion-resistant enclosure for long-term commercial hardware reliability.
Flexible Mounting Options: Compatible with standard face-mount, L-bracket, and Z-bracket configurations for inward or outward swinging doors.
Unified Centralized Management: Real-time door status monitoring, automated unlocking schedules, and audit event logs managed via UniFi Access.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UACC-Lock-Magnetic-270kg (UniFi Access Magnetic Lock 270kg)
Holding Force: 600 lbs (270 kg)
Lock Operational Type: Fail-Safe Electromagnetic Lock
Status Monitoring: Integrated Magnetic Bond Sensor (NO/NC/COM Outputs)
Enclosure Material: High-Strength Anodized Aluminum Alloy
Armature Plate Material: Zinc-Plated Carbon Steel
Door Compatibility: Wood, Hollow Metal, Glass, and Aluminum Frame Doors
2. Electrical & Operational Parameters:
Operating Voltage: 12V DC (Powered via UniFi Access Hub Lock Relay)
Operating Current: 500 mA @ 12V DC
Power Consumption: 6 W
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Operating Humidity: 0% to 95% Non-Condensing
Certifications: CE, FCC, IC, UL 294
