The MikroTik RBPOE is a compact, cost-effective passive PoE injector engineered to supply DC power to remote RouterBOARD units and network devices over 10/100 Mbps Ethernet cables. By utilizing unused Ethernet wire pairs (4, 5 for positive; 7, 8 for negative) to transmit electrical power alongside standard data streams, it simplifies remote hardware installations on roofs, towers, and outdoor poles.

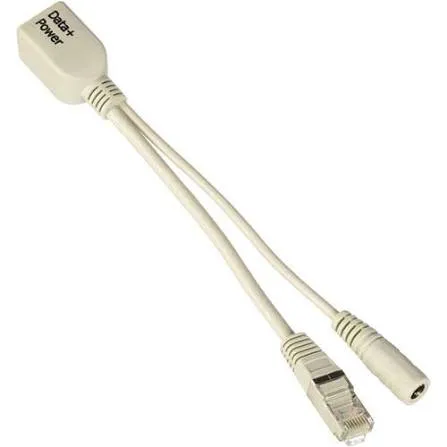

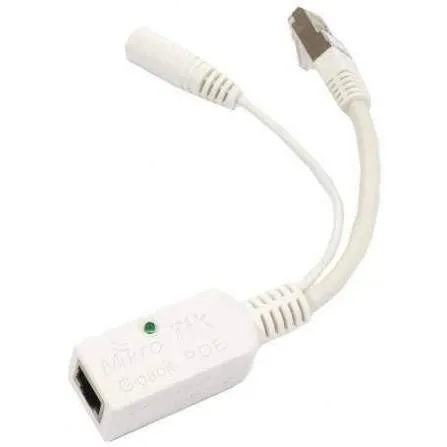

The cable adapter features a female 2.1 mm DC barrel jack for plugging in standard power adapters, a female RJ45 jack for receiving data from local switches or routers, and a male shielded RJ45 connector for running combined power and data directly into the target device. It supports power input from 10 V up to 28 V DC (up to 2 A current), making it ideal for standard 12V and 24V passive PoE RouterBOARD hardware.
Its lightweight molded design minimizes strain on equipment Ethernet ports while providing grounded shielding to reduce electro-static discharge (ESD) risks. Designed for simple plug-and-play operation without requiring configuration, the RBPOE is an indispensable accessory for wireless internet service providers (WISPs), outdoor CPE installations, and compact network deployments.
Comprehensive Key Features
10/100 Mbps Passive PoE Injection: Combines power and 10/100 Fast Ethernet data onto a single network cable for remote devices.
Universal 2.1 mm DC Barrel Jack: Compatible with standard 10–28 V DC wall power supplies and desktop power adapters.
Shielded RJ45 Connectors: Features metal-shielded RJ45 connectors to preserve ground continuity and protect against ESD interference.
Flexible Cable Extension: Integrated pigtail cable design prevents mechanical stress on the host device's Ethernet port.
Broad Voltage Range: Supports 10 V to 28 V DC input, delivering up to 2 A continuous current to remote network units.
Plug-and-Play Simplicity: Requires no active protocol negotiation or software configuration, providing immediate power transmission upon connection.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RBPOE
Cable Length: 0.150 m (150 mm)
Weight: 0.030 kg (30 g)
DC Input Jack: Standard 2.1 mm Female DC Barrel Jack
Data Input Interface: 1× Female RJ45 Port (10/100 Mbps)
Power + Data Output Interface: 1× Male Shielded RJ45 Plug (10/100 Mbps)
Enclosure Material: Durable Molded PVC Plastic
2. Electrical & Performance Parameters
Input Voltage Range: 10 – 28 V DC
Max Supported Current: 2 A
PoE Type: Passive PoE (Pins 4, 5 V+; Pins 7, 8 V-)
Data Rate: 10/100 Mbps (Fast Ethernet)
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
