The Ubiquiti UniFi Switch Flex 2.5G 8 PoE (Model: USW-Flex-2.5G-8-PoE) is an ultra-versatile, multi-gigabit Layer 2 edge switch engineered to deliver high-density power and bandwidth to modern enterprise endpoints. Designed for high-demand deployments—such as feeding Wi-Fi 6E and Wi-Fi 7 Access Points, PTZ security cameras, door access hubs, and creative workstation clusters—it eliminates local power and bandwidth bottlenecks by pairing 2.5 GbE client connectivity directly with powerful 802.3bt PoE++ output capabilities.
Built with exceptional versatility, the switch features eight 2.5 GbE RJ45 ports that support high-power PoE++ output up to 64W per port. For core aggregation, the USW-Flex-2.5G-8-PoE provides dual 10 GbE uplinks: one 10G SFP+ optical interface and one 10G RJ45 port. The 10G RJ45 port doubles as a PoE+++ power input, enabling the switch to operate without a local AC wall outlet while distributing up to 76W of PoE power to downstream devices. Alternatively, connecting an optional 210W external AC power adapter expands total PoE availability to a massive 196W. Its durable polycarbonate housing supports multiple installation methods—including desktop, wall, DIN rail, or magnetic mounting—and integrates directly into the UniFi Network software for centralized Layer 2 control.
Comprehensive Key Features:
High-Density Multi-Gigabit Port Array: Features (8) 2.5 GbE RJ45 ports supporting 2.5G/1G/100M/10M link speeds, ideal for multi-gigabit Wi-Fi 7 APs and high-speed endpoints.
Dual 10G Fiber & Copper Uplinks: Equipped with (1) 10G SFP+ optical port and (1) 10G RJ45 copper port for high-bandwidth core network backhauling.
High-Power 802.3bt PoE++ Output: All 8 RJ45 ports support auto-sensing PoE++ delivering up to 64W per port for power-hungry hardware.
Dual Power Input Flexibility: Can be powered directly via its 10G RJ45 PoE+++ input port or via an optional 210W AC/DC power adapter.
Massive PoE Power Budget Options: Delivers up to 196W PoE budget with an AC adapter input, 76W with PoE+++ input, 46W with PoE++ input, or 16W with PoE+ input.

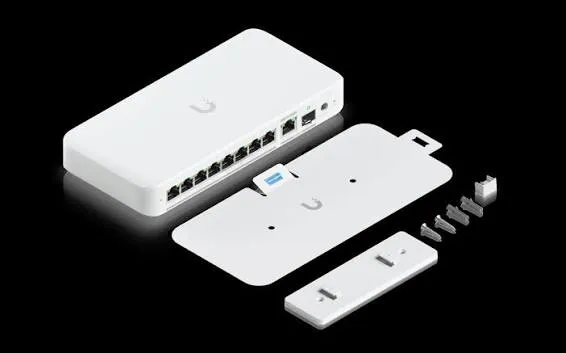

Modular Mounting System: Compact form factor supports desktop placement, wall mounting, DIN rail attachment, or magnetic surface mounting.
60 Gbps Switching Capacity: Non-blocking 30 Gbps total throughput processing up to 45 million packets per second (45 Mpps).
Full UniFi OS Layer 2 Management: Supports STP/RSTP, dynamic VLAN tagging, egress rate limiting, storm control, port isolation, and loop protection via UniFi Network.
Extended Technical Specifications:
Model / SKU: USW-Flex-2.5G-8-PoE (UniFi Switch Flex 2.5G 8 PoE)
Enclosure Material: Durable Polycarbonate
Form Factor / Mounting: Desktop, Wall Mount, DIN Rail, Magnetic Mount
Networking Interfaces:
(8) 2.5 GbE RJ45 Ports (2.5G/1G/100M/10M)
(1) 10 GbE RJ45 Port (10G/5G/2.5G/1G/100M)
(1) 10G SFP+ Optical Port (10G/1G)
PoE Interfaces & Output:
(8) 2.5 GbE Ports: Auto-sensing 802.3af/at/bt PoE++ (up to 64W per port)
Power Method:
(1) 10G RJ45 PoE+++ Power Input (50–57V DC)
(1) DC Input Port for optional 210W AC/DC Power Adapter
Total Available PoE Budget:
Powered via 210W AC Adapter: 196 W
Powered via PoE+++ Input: 76 W
Powered via PoE++ Input: 46 W
Powered via PoE+ Input: 16 W
Performance Metrics:
Switching Capacity: 60 Gbps
Total Non-Blocking Throughput: 30 Gbps
Forwarding Rate: 45 Mpps
MAC Address Table Size: 4,000 entries
Max. Power Consumption:
14W (Excluding PoE Output with PoE input)
17W (Excluding PoE Output with AC adapter)
Operating Temperature: -20°C to 45°C (-4°F to 113°F)
Operating Humidity: 10% to 90% non-condensing
