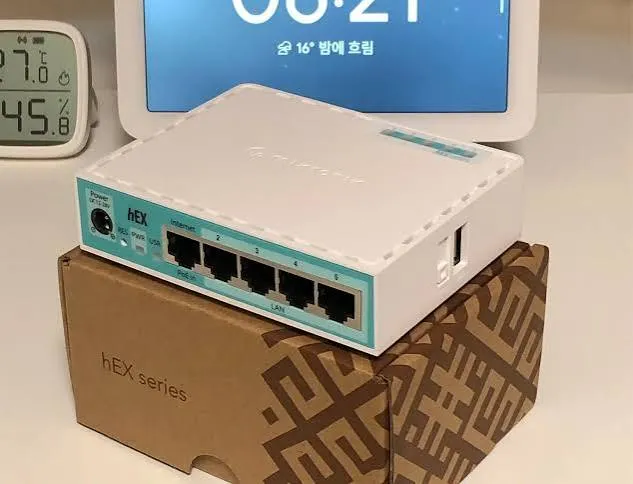

The MikroTik hEX (Model: E50UG) is an updated, highly capable desktop router engineered for wired routing, VPN management, and localized traffic handling. Delivering exceptional performance in an ultra-compact footprint, the device couples an upgraded dual-core 950 MHz ARM processor with 512 MB DDR3 RAM to handle advanced firewall rules, IPsec hardware acceleration, dynamic routing, and network segmentation.
Featuring 5x Gigabit Ethernet ports and a versatile full-size USB Type-A interface, the hEX E50UG serves as a reliable backbone for SOHO environments, small branch offices, and custom routing deployment setups.
Comprehensive Key Features
Upgraded Processing Power: Equipped with a dual-core EN7562CT ARM CPU running at 950 MHz and 512 MB DDR3 RAM for enhanced routing throughput.
High-Speed Connectivity: 5x 10/100/1000 Mbps RJ45 Gigabit Ethernet ports providing seamless wired networking.
Flexible Powering Options: Passive PoE Input on Port 1 alongside a standard DC power jack for flexible deployment scenarios.
USB Expansion: Integrated full-sized USB 2.0 port supporting external drives or 4G/LTE mobile failover modems.
Enterprise RouterOS Integration: Driven by RouterOS v7 with a Level 4 license, unlocking full access to advanced routing protocols, VPNs, firewall rules, and traffic prioritization.
Compact Desktop Enclosure: Durable, low-profile white plastic casing designed for unobtrusive placement in home or office spaces.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: E50UG (hEX refresh)
Dimensions: 0.113 m × 0.089 m × 0.028 m (113 × 89 × 28 mm)
Weight: 0.281 kg (281 g)
CPU: Dual-Core ARM EN7562CT @ 950 MHz
RAM: 512 MB DDR3
Storage: 128 MB NAND
Enclosure Material: Durable Plastic Desktop Case
Status LEDs: Power, User LED, Ethernet Port Status Indicators
2. Wireless, Networking & Performance Parameters
Ethernet Ports: 5× 10/100/1000 Mbps RJ45 Ethernet Ports
USB Interface: 1× USB 2.0 Type-A
Hardware Acceleration: IPsec Hardware Encryption Supported
Operating System: MikroTik RouterOS v7 (License Level 4)
Management Options: WinBox, WebFig, SSH, Telnet, REST API
3. Electrical & Environmental Parameters
Power Method: DC Jack (12 – 28V DC) or Passive PoE In on Port 1
Included Power Supply: 24V DC / 0.38A Power Adapter
Max Power Consumption: ~10W
PoE Input Voltage: 12 – 28V DC
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
