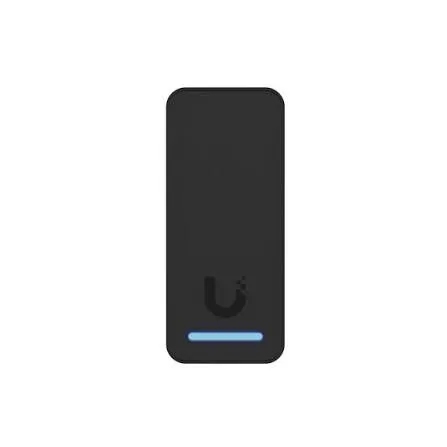

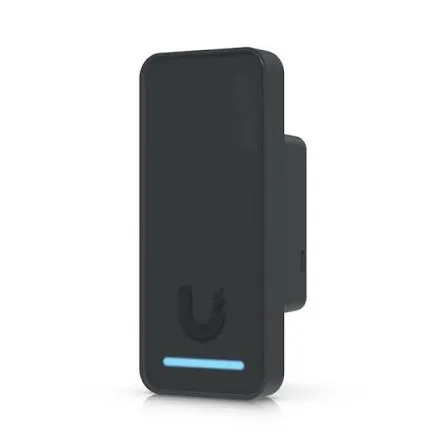

The Ubiquiti UniFi Access Reader G3 (Model: UA-G3) is a compact, third-generation door access reader engineered for modern identity verification, secure credential scanning, and seamless building access management. Designed to integrate natively with the UniFi Access application suite, the UA-G3 provides flexible credential options including NFC physical cards, key fobs, mobile unlock via UniFi Identity, and Touch Pass support for Apple Wallet and Google Wallet.
Featuring an IP55-rated weatherproof enclosure and a slim physical profile, the UA-G3 is built for both indoor and outdoor entryways. The device incorporates an integrated proximity sensor, built-in speaker, RGBW LED status indicators, and Handwave Request to Exit capabilities. Powered completely via standard PoE from a UniFi Access Hub, it provides clean, single-cable deployment and enterprise-grade physical security compliance.
Comprehensive Key Features:
Multi-Credential Identity Access: Supports NFC cards, key fobs, UniFi Identity mobile app unlock, and Touch Pass compatibility with Apple Wallet and Google Wallet.
High-Frequency NFC Compatibility: Works across 13.56 MHz frequencies supporting ISO/IEC 14443A/B, 15693, 18092, MIFARE Classic, MIFARE DESFire, and Sony FeliCa protocols.
Handwave Request to Exit: Integrated proximity sensor enables touchless door release and presence detection.
Weatherproof Outdoor Design: IP55-rated housing provides reliable operation across extreme ambient temperature and weather conditions.
Single-Cable PoE Convenience: Connects directly to a UniFi Access Hub over Cat 5e/Cat 6 cabling for power and data.
Visual & Audible Feedback: Equipped with an integrated 0.7W speaker and multi-color RGBW LED ring for access state and system telemetry indication.
Seamless UniFi Access Integration: Fully managed through the centralized UniFi Access platform for user policy configuration and real-time event logs.
Extended Technical Specifications:
Hardware & Physical Parameters:
Model / SKU: UA-G3 (UniFi Access Reader G3)
Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight: 82 g (2.9 oz)
Enclosure Material: Polycarbonate, Glass
Mount Material: Aluminum Alloy
Mounting Options: In-Wall, Gang-Box Mount (Included); Junction Box (Optional)
Weatherproofing Rating: IP55
Wireless, Networking & Performance Parameters:
Networking Interface: (1) 10/100 Mbps RJ45 Ethernet Port
Wireless / Connectivity: Bluetooth Low Energy 4.1, NFC
NFC Operating Frequency: 13.56 MHz
NFC Read Range: < 30 mm
Supported NFC Technologies: ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092 (Ecma 340), MIFARE Classic, MIFARE DESFire, Sony FeliCa (ID only), NFC Forum Tags T1T–T5T, ECP 2.0
Sensors & Audio: Proximity Sensor, 0.7W Speaker, RGBW LED Status Indicator
System Button: (1) Factory Reset
Electrical & Environmental Parameters:
Power Method: 48V Passive PoE / PoE (UL 294 Power-Limited Class 2 PSU)
Supported Voltage Range: 48V DC
Max. Power Consumption: 5W
ESD/EMP Protection: Air: ±15 kV, Contact: ±8 kV
Ambient Operating Temperature: -30 to 45° C (-22 to 113° F)
Ambient Operating Humidity: 5 to 90% noncondensing
Regulatory Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Grade I
