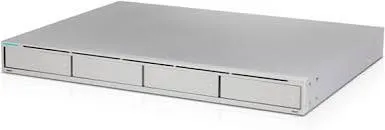

The Ubiquiti UniFi Network Video Recorder (Model: UNVR) is a dedicated 1U rack-mountable appliance designed to scale video surveillance infrastructure for enterprise networks, SMBs, and retail environments. Powered by the UniFi Protect application, the UNVR delivers local high-performance video recording without subscription fees, license costs, or cloud-storage dependencies.
Equipped with four 3.5" (or 2.5") SATA drive bays with a toolless tray design, the UNVR provides customizable storage configurations supporting up to 60 HD (1080p) cameras or 20 4K Ultra HD cameras. The system automates data protection by configuring RAID 1 for 2-drive setups and RAID 5 when 3 or 4 drives are populated. For high-speed data access and redundancy, it features a 10G SFP+ direct-attach interface alongside a 1GbE RJ45 port, as well as USP-RPS support for redundant DC power backup.
Comprehensive Key Features:
License-Free UniFi Protect Platform: Pre-installed software providing real-time local monitoring, motion detection, smart detection AI filtering, and mobile access without recurring fees.
4-Bay Flexible Storage & Automatic RAID Protection: Supports 3.5" and 2.5" HDD/SSD drives with automated RAID 1 or RAID 5 storage pooling and seamless disk replacement.
High Camera Density Support: Manages up to 60 HD (1080p) or 20 4K UniFi Protect cameras with low latency and simultaneous multi-user playback.
Dual High-Speed Network Uplinks: Includes (1) 10G SFP+ port for high-bandwidth fiber/copper backhaul and (1) 1GbE RJ45 Ethernet port.
Redundant Power System (USP-RPS) Compatible: Integrated DC input port for seamless failover protection when paired with the UniFi Smart Power Redundant Power System.
1U Rack-Mount Enclosure: Standard 19" rack-mountable chassis with included mounting hardware and a front-panel status LED display.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UNVR
Form Factor / Mounting: 1U Standard 19" Rack Mount (Brackets Included)
Dimensions: 442.4 x 325.0 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight: 5.11 kg (11.27 lb) without brackets | 5.20 kg (11.46 lb) with brackets
Enclosure Material: SGCC Steel Chassis
Drive Bays: (4) 2.5" or 3.5" SATA HDD / SSD Trays (Toolless)
2. System Performance & Video Capacity:
Processor / Memory: Quad-Core ARM Cortex-A57 at 1.7 GHz | 4 GB DDR4
System Flash: 8 GB SPI Flash + 32 GB eMMC
Camera Capacity:
HD (1080p / 30 fps): Up to 60 Cameras
2K (2K / 30 fps): Up to 30 Cameras
4K (4K / 30 fps): Up to 20 Cameras
Storage Protection: Automated RAID 1 (2 drives) or RAID 5 (3–4 drives)
3. Networking, Electrical & Environmental Parameters:
Networking Interfaces:
(1) 10G SFP+ Optical / Direct Attach Copper Port
(1) 10/100/1000 Mbps RJ45 Gigabit Ethernet Port
Power Method:
Universal AC Input: 100–240V AC, 50/60 Hz, 2A Max. (Internal Power Supply)
Redundant DC Input: USP-RPS DC Input (11.5V DC, 5.22A)
Max. Power Consumption: 100W
Operating Temperature: -5°C to 40°C (23°F to 104°F)
Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC, NDAA Compliant
