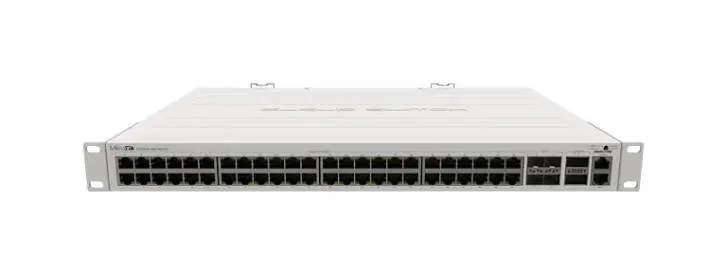

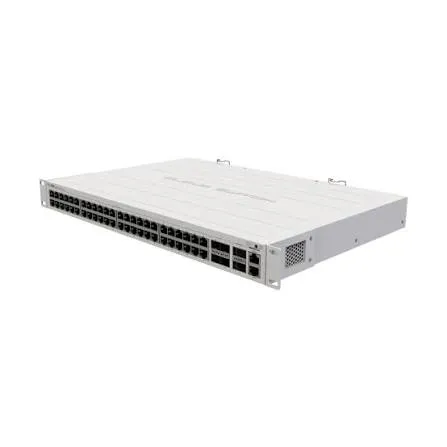

The MikroTik CRS354-48G-4S+2Q+RM is a versatile and powerful 1U rackmount switch solution engineered to deliver high port density and extreme throughput for large-scale corporate networks, service provider hubs, and data center deployments. Driven by a Qualcomm QCA9531 CPU operating at 650 MHz alongside a Marvell switch chip, 64 MB RAM, and 16 MB flash storage, it provides uncompromised wire-speed connectivity across all ports simultaneously.
Featuring a comprehensive interface layout, the switch integrates 48x 10/100/1000 Mbps Gigabit Ethernet ports for copper end-point connections, 4x 10G SFP+ cages for rapid 10 Gbps uplinks, and 2x 40G QSFP+ slots for high-capacity 40 Gbps backbone trunking (QSFP+ slots support breakout cables to split into 4x 10G links each). To ensure uninterrupted enterprise operations, the CRS354-48G-4S+2Q+RM comes fitted with dual redundant internal AC power supplies inside a durable 1U steel enclosure. It supports Dual Boot functionality, allowing users to run lightweight SwOS for pure Layer 2 switching or RouterOS Level 5 for full Layer 3 routing and firewall capabilities.
Comprehensive Key Features
48x Gigabit, 4x 10G SFP+ & 2x 40G QSFP+ Ports: Combines 48 Gigabit copper RJ45 ports with 4x 10 Gbps SFP+ slots and 2x 40 Gbps QSFP+ uplinks for maximum network expansion.

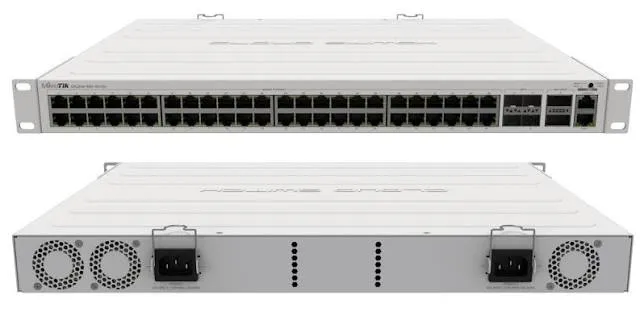

Dual Redundant Power Supplies: Built-in dual AC power supplies provide failover reliability and zero-downtime operation.
Dual Boot Operating System Versatility: Select between SwOS for simplified Layer 2 switch setup or RouterOS Level 5 for advanced L3 routing, VLAN filtering, and bandwidth control.
High Switching Capacity: Delivers up to 168 Gbps non-blocking throughput and 336 Gbps switching capacity.
40G Breakout Cable Support: The 40G QSFP+ ports can be split into four independent 10G SFP+ lines for increased fiber flexibility.
1U Heavy-Duty Steel Chassis: Standard 19-inch rackmount metal enclosure equipped with active cooling fans for optimal thermal performance.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: CRS354-48G-4S+2Q+RM
Dimensions: 0.443 m × 0.297 m × 0.044 m (443 × 297 × 44 mm)
Weight: 3.860 kg
CPU: QCA9531 Single-Core @ 650 MHz
RAM: 64 MB
Storage: 16 MB Flash
Enclosure Material: 1U Rackmount Heavy-Duty Steel Casing
Status LEDs: Power 1, Power 2, User LED, Port Link/Activity Status Indicators
2. Wireless, Networking & Performance Parameters
Ethernet Ports: 48× 10/100/1000 Mbps RJ45 Ports
SFP+ Cages: 4× 10 Gbps SFP+ Ports
QSFP+ Cages: 2× 40 Gbps QSFP+ Ports
Management Port: 1× 10/100 Mbps RJ45 Port
Console Port: 1× RJ45 Serial Console Port
Switching Capacity: 336 Gbps
Non-Blocking Throughput: 168 Gbps
Forwarding Rate: 250 Mpps
Operating System: Dual Boot (SwOS / RouterOS License Level 5)
3. Electrical & Environmental Parameters
Power Method: Dual Internal Power Supplies (100–240 V AC)
Included Power Cables: 2x Standard IEC Power Cords
Max Power Consumption: 85 W (45 W without attachments)
Cooling Type: Active Cooling (3x temperature-controlled fans)
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
