The Ubiquiti UniFi Device Bridge Pro Sector (Model: UDB-Pro-Sector) is a high-capacity 5 GHz Point-to-MultiPoint (PtMP) sector access point engineered to expand long-range wireless infrastructure across complex outdoor environments. Built as a central base station node, the UDB-Pro-Sector pairs seamlessly with up to 40+ UniFi Device Bridge Pro (UDB-Pro) clients, establishing secure, high-throughput wireless links over distances greater than 5 km without requiring extensive cable deployments.
Featuring a 90° sector radiation pattern and a high-gain 17 dBi internal antenna, the unit optimizes signal propagation while minimizing cross-channel interference. Encased in a durable, UV-stabilized IPX6 rated enclosure, the UDB-Pro-Sector withstands extreme weather conditions and severe wind loading up to 128.2 N at 200 km/h. Operating on standard PoE (42.5–57V DC) with a highly efficient 6W maximum power consumption, it integrates directly into the central UniFi Network application for unified monitoring, automatic device discovery, and full-stack management.
Comprehensive Key Features:
Point-to-MultiPoint Central Node: Connects up to 40+ UDB-Pro client stations across distances of 5+ km.
90° Sector Antenna Integration: High-gain 17 dBi 5 GHz internal sector antenna provides wide directional coverage and enhanced noise immunity.
Energy-Efficient PoE Operation: Powered via 802.3af PoE (42.5–57V DC) with an ultra-low maximum power draw of only 6W.
IPX6 Outdoor Weatherproofing: UV-resistant polycarbonate housing engineered for harsh climate exposure, withstanding wind loads up to 128.2 N at 200 km/h.
Unified Centralized Management: Fully managed via the UniFi Network Controller with Auto-Link automated provisioning and real-time link diagnostics.
Flexible Pole Mounting: Comes complete with a heavy-duty pole mount bracket accommodating outer pipe diameters from 24 to 60 mm (0.9–2.4").
Extended Technical Specifications:
1. Hardware & Physical Parameters:
Model / SKU: UDB-Pro-Sector (UniFi Device Bridge Pro Sector)

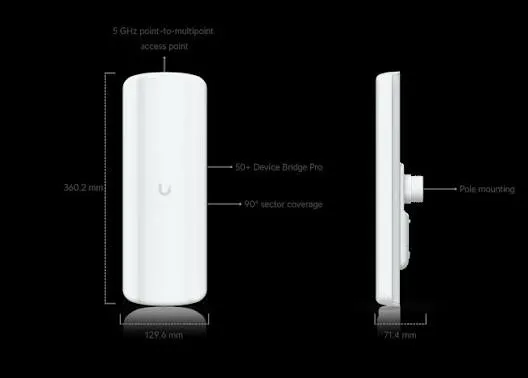

Dimensions: 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8")
Weight: Without Mount: 782 g (1.7 lbs) | With Mount: 835 g (1.8 lbs)
Enclosure Material: UV-stabilized Polycarbonate
Mounting Material: UV-stabilized Polycarbonate, Stainless Steel
Ingress Protection: IPX6 Weatherproof
Wind Loading: 128.2 N at 200 km/h (28.8 lbf at 125 mph)
Status Monitoring: Power, Ethernet LEDs
2. Networking & Operational Parameters:
Networking Interface: (1) GbE RJ45 Port
Management Interfaces: Ethernet, Wi-Fi
Wi-Fi Standard: 802.11a/n/ac (Wi-Fi 5)
MIMO Configuration: 5 GHz 2x2 MIMO
Max. Data Rate: Up to 400 Mbps (BW40)
Antenna Gain: 17 dBi
Max. Conducted TX Power: 25 dBm
Supported Client Count: 40+ Devices
3. Electrical & Environmental Parameters:
Power Method: 802.3af PoE
Supported Voltage Range: 42.5 to 57V DC
Max. Power Consumption: 6W
Ambient Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Ambient Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC
