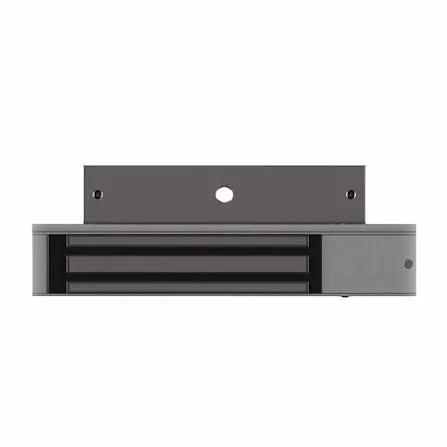

The Ubiquiti UniFi Access Magnetic Lock (Model: UA-Lock-Magnetic) is an enterprise-grade electromagnetic locking mechanism designed to provide reliable physical security across corporate facilities, healthcare centers, educational campuses, and industrial sites. Engineered to integrate directly into the UniFi Access ecosystem, the lock eliminates the need for third-party power supplies by connecting directly to the powered lock relay outputs of a UniFi Access Hub.
Delivering an industrial holding force of 1,200 lbs (540 kg), the UA-Lock-Magnetic secures high-traffic double doors, single glass doors, and hollow metal doors against unauthorized entry. Designed strictly with fail-safe operational behavior, the electromagnet releases its hold instantly whenever power is interrupted—ensuring emergency life-safety egress compliance during fire alarms or power outages. Built with an internal magnetic bond sensor, the lock reports real-time door lock status, tamper alerts, and door position notifications directly to the UniFi Access Controller.
Comprehensive Key Features:
1,200 lbs Holding Force: Provides up to 1,200 lbs (540 kg) of continuous electromagnetic holding force for high-security entryways.
Fail-Safe Operation: Unlocks automatically when power is cut, ensuring full compliance with life-safety and emergency egress codes.
Direct UniFi Access Hub Compatibility: Powered and controlled directly via 12V DC output from a UniFi Access Hub (UA-Hub, UA-HUB-DOOR-MINI, or EAH-8).
Integrated Bond Sensor: Built-in sensor monitors lock state integrity and reports door status (Locked / Unlocked / Tamper) to UniFi Access.
Corrosion-Resistant Anodized Housing: Durable anodized aluminum construction suited for heavy-duty commercial use.
Versatile Mounting Support: Compatible with standard face-mount, L-bracket, and Z-bracket configurations for inward or outward swinging doors.
Centralized UniFi Integration: Fully integrated with UniFi Access for live status monitoring, automated unlocking rules, and access audit logging.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UA-Lock-Magnetic (UniFi Access Magnetic Lock)
Holding Force: 1,200 lbs (540 kg)
Lock Type: Fail-Safe Electromagnetic Lock
Status Monitoring: Integrated Magnetic Bond Sensor (NO/NC/COM Outputs)
Enclosure Material: High-Strength Anodized Aluminum Alloy
Armature Plate Material: Zinc-Plated Carbon Steel
Door Compatibility: Wood, Hollow Metal, Glass, and Aluminum Frames
2. Electrical & Power Parameters:
Operating Voltage: 12V DC (Powered via UniFi Access Hub Lock Relay)
Operating Current: 500 mA @ 12V DC
Power Consumption: 6 W
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Operating Humidity: 0% to 95% Non-Condensing
Certifications: CE, FCC, IC, UL 294
