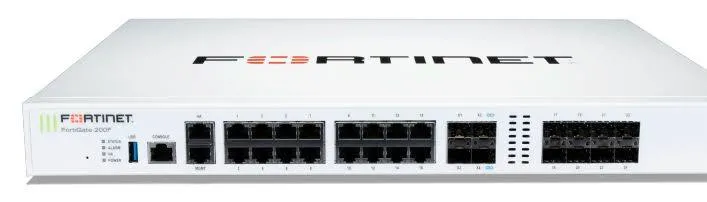

The Fortinet FortiGate 200F provides an enterprise-class security solution designed to protect mid-to-large enterprise campuses, branch offices, and distributed networks. Powered by Fortinet's purpose-built NP6XLite network processor and CP9 content processor, it delivers hardware-accelerated security inspection, ultra-low latency, and high-throughput SSL decryption.
Equipped with dual onboard 480 GB SSD storage modules for high-speed local logging, packet capture, and reporting, as well as dual built-in AC power supplies for mission-critical redundancy, the FG-200F safeguards enterprise infrastructure against advanced cyber threats while ensuring high availability.
Comprehensive Key Features
Hardware-Accelerated Architecture: Driven by Fortinet's NP6XLite and CP9 processors to offload network traffic and accelerate security and encryption tasks.
Onboard SSD Storage: Features dual integrated 480 GB SSDs for robust local event logging, threat telemetry caching, and audit reporting.
Advanced Threat Defense: Delivers 3 Gbps IPS throughput, 2.5 Gbps NGFW performance, and 2 Gbps Threat Protection throughput.
Flexible Interface Density: Combines 16x GE RJ45 ports (including shared SFP pairs) and 4x dedicated GE SFP slots for versatile network connectivity.
Built-in Power Redundancy: Equipped with dual integrated AC power supplies (1+1 redundant) to ensure continuous operational uptime.
Integrated Secure SD-WAN: Offers application-aware routing, automated WAN path steering, and zero-trust network access (ZTNA).
1. Wireless, Networking & Performance Parameters
Ethernet Ports: 16 × GE RJ45 Ports (including 2 Shared Media Pairs: RJ45/SFP)
Fiber Slots: 4 × GE SFP Slots (Shared with RJ45 ports)
USB Ports: 1 × USB 3.0 Port, 1 × USB 2.0 Port
Firewall Throughput: 27 Gbps (1518 / 512 / 64 byte UDP packets)
IPS Throughput: 3 Gbps
NGFW Throughput: 2.5 Gbps
Threat Protection Throughput: 2 Gbps
Concurrent Sessions (TCP): 3,000,000 (3 Million)
New Sessions / Second: 130,000
IPsec VPN Throughput: 13 Gbps
2. Electrical & Environmental Parameters
Power Method: Universal AC Input (100–240V AC, 50–60 Hz)
Power Supply: Dual Built-in Power Supplies (1+1 Redundant)
Max Power Consumption: 65 W
Heat Dissipation: 221.8 BTU/hr
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% non-condensing
