The Ubiquiti LiteBeam 5AC LR (Model: LBE-5AC-LR) specification description follows:

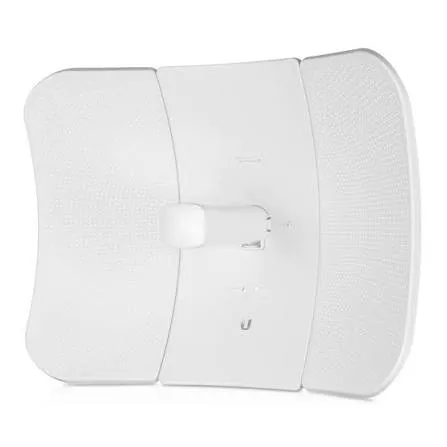

The Ubiquiti LiteBeam 5AC LR (Model: LBE-5AC-LR) is a compact, high-gain 5 GHz airMAX AC CPE (Customer Premises Equipment) and Point-to-Point (PtP) wireless bridge designed for long-range outdoor broadband deployments. Engineered as an affordable, high-performance solution for Wireless Internet Service Providers (WISPs), the device combines Ubiquiti's proprietary airMAX AC technology with a high-directivity dish reflector to deliver high-throughput, low-latency wireless links across extended distances.
Featuring a 26 dBi dish antenna operating in the 5 GHz frequency band, the LBE-5AC-LR incorporates a flexible 3-axis alignment mechanism for rapid and precise directional positioning. Powered centrally by airOS, it integrates a dedicated 2.4 GHz Wi-Fi management radio for easy mobile setup via the UISP app, inner-feed technology that integrates the radio directly into the antenna feedhorn, and a lightweight, wind-resistant enclosure with passive Power over Ethernet (PoE) support.
Comprehensive Key Features:
- High-Gain 26 dBi Dish Antenna: Integrates a high-directivity reflector operating in the 5 GHz band to maximize signal strength and link stability over long ranges.
- airMAX AC Protocol Integration: Utilizes airMAX AC Time Division Multiple Access (TDMA) to optimize airtime efficiency, eliminate hidden node collisions, and deliver high throughput.
- Dedicated Wi-Fi Management Radio: Includes an integrated 2.4 GHz Wi-Fi radio to allow fast initial setup and configuration directly from a smartphone using the UISP mobile app.
- InnerFeed Technology: Integrates the entire radio system into the antenna feedhorn, eliminating coaxial cable loss and improving overall RF efficiency.
- 3-Axis Ball-Joint Alignment: Features a 3-axis mounting system providing full movement flexibility for accurate antenna alignment and directional locking.
- Lightweight & Wind-Resistant Reflector: Mesh dish design reduces wind loading while maintaining physical structural integrity in harsh weather environments.
- Centralized airOS & UISP Integration: Fully managed via airOS for real-time spectrum analysis (airView), custom channel widths, traffic shaping, and link health monitoring.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: LBE-5AC-LR (LiteBeam 5AC Long-Range)
- Dimensions: 512 x 385 x 258 mm (20.15 x 15.15 x 10.15")
- Weight: 1.36 kg (2.99 lb) | With Mount: 1.73 kg (3.81 lb)
- Enclosure Material: Outdoor UV Stabilized Plastic, Galvanized Steel
- Mounting Options: Pole Mounting Kit (Included)
- Wind Survivability: 200 km/h (125 mph) | Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
- Status LEDs: Power, Ethernet Link, Wi-Fi / Management
- Wireless, Networking & Performance Parameters:
- Operating Frequency: 5150–5875 MHz (Region Dependent)
- Gain: 26 dBi
- Networking Interfaces: (1) 10/100/1000 Mbps Gigabit Ethernet RJ45 Port
- Management Interfaces: Dedicated 2.4 GHz Wi-Fi Radio, airOS Web UI, UISP Application
- Maximum TX Power: 25 dBm
- Maximum Throughput: 450+ Mbps Real TCP/IP Throughput
- Channel Bandwidths: 10, 20, 30, 40, 50, 60, 80 MHz
- System Memory: 64 MB DDR2
- Electrical & Environmental Parameters:
- Power Method: 24V DC Passive PoE (Pairs 4, 5+; 7, 8- Return)
- Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
- Max. Power Consumption: 7W
- Supported Voltage Range: 24V DC ±10%
- ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
- Ambient Operating Temperature: -40 to 70° C (-40 to 158° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Regulatory Certifications: CE, FCC, IC
