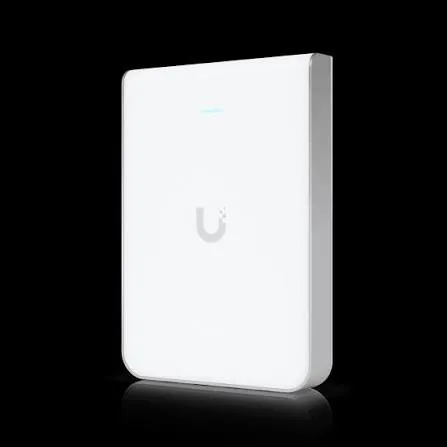

The Ubiquiti UniFi6 In-Wall (Model: U6-IW) is an enterprise-grade, dual-band Wi-Fi 6 access point designed to seamlessly replace standard wall outlets in hotel rooms, multi-dwelling units (MDUs), corporate offices, and modern homes. Engineered for discrete in-room installation, the U6-IW brings high-speed wireless coverage directly to local living or working areas while providing high-speed wired expansion through its front panel.
Equipped with Wi-Fi 6 technology, the U6-IW supports 4x4 MU-MIMO with a 160 MHz channel bandwidth on the 5 GHz band, achieving wireless rates up to 4.8 Gbps alongside a 573.5 Mbps rate on the 2.4 GHz band. The bottom housing incorporates an integrated 4-port Gigabit Ethernet switch, with Port 1 providing 802.3af PoE passthrough power (when the unit is powered by an 802.3at PoE+ switch). Fully managed via the UniFi Network application, the U6-IW allows network administrators to manage VLAN configurations, track wireless traffic, and customize port isolation across dense hospitality and enterprise networks.
Comprehensive Key Features:
High-Performance Wi-Fi 6 Architecture: Supports dual-band Wi-Fi 6 (802.3ax) delivering an aggregate data rate of up to 5.3 Gbps.
4x4 MU-MIMO with 160 MHz Bandwidth: Operates 4x4 spatial streams on the 5 GHz band for high-density client capacity and low-latency throughput.
Integrated 4-Port Gigabit Switch: Offers (4) 1 GbE RJ45 LAN ports on the front/bottom faceplate for local wired connections.
PoE Passthrough Output: Port 1 delivers 802.3af PoE output (up to 15.4W) to power downstream IP phones, access devices, or security cameras.
Discreet Wall-Plate Installation: Mounts into a standard single-gang electrical wall box with included aluminum mounting plates.
Full UniFi Network Integration: Supports dynamic guest portals, custom VLAN tagging, RF environment mapping, and seamless roaming across AP nodes.
Extended Technical Specifications:
1. Hardware & Wireless Standards:
Model / SKU: U6-IW (UniFi6 In-Wall)
Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Spatial Streams / MIMO:
5 GHz: 4x4 MU-MIMO and OFDMA (160 MHz Bandwidth)
2.4 GHz: 2x2 MU-MIMO and OFDMA
Max. Data Rates:
5 GHz Band: Up to 4.8 Gbps
2.4 GHz Band: Up to 573.5 Mbps
Antenna Gain:
5 GHz: 5.0 dBi
2.4 GHz: 4.0 dBi
Max. TX Power:
5 GHz: 26 dBm
2.4 GHz: 22 dBm
Concurrent Clients: 300+ Active Clients
BSSID Support: Up to 8 SSIDs per radio
2. Physical Interfaces & Power Parameters:
Uplink / Management Interface: (1) 10/100/1000 Mbps RJ45 Rear Port
Downlink Wired Interfaces: (4) 10/100/1000 Mbps RJ45 Front Ports (1x PoE Out)
PoE Interfaces:
Power Input: 802.3at PoE+ (Pins 1, 2+; 3, 6- or 4, 5+; 7, 8-)
Power Output: 802.3af PoE (Port 1, Requires 802.3at PoE+ input)
Max. Power Consumption: 13.5 W (Excluding PoE Output)
Enclosure Materials: Plastic, Aluminum Alloy Mounting Bracket
Operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Humidity: 5% to 95% non-condensing
Certifications: CE, FCC, IC
