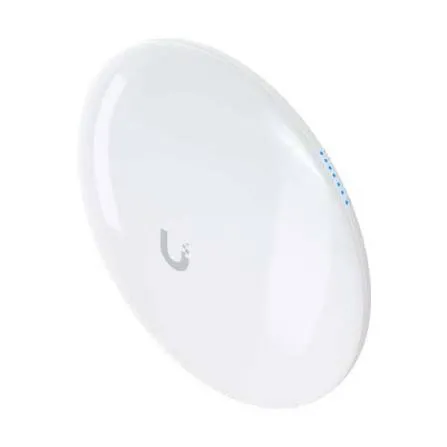

The Ubiquiti UniFi Device Bridge Pro (Model: UDB-Pro) is a high-performance 5 GHz wireless bridge engineered for long-range point-to-point and point-to-multipoint network expansion. Purpose-built to eliminate structural cabling limitations, the UDB-Pro links remote buildings, surveillance locations, and outdoor infrastructure across distances up to 5 km with throughput speeds reaching 867 Mbps over a 2x2 MIMO 802.11ac Wi-Fi link.
Housed in a ruggedized, UV-stabilized IPX6 weatherproof casing, the UDB-Pro is built to withstand extreme environmental conditions and high wind loads. It features dual GbE RJ45 ports with flexible PoE capabilities, allowing it to receive 802.3af/at PoE power while simultaneously passing passive PoE power through its second port to supply external devices such as surveillance cameras or secondary radios. With integrated Auto-Link pairing and centralized management via the UniFi Network software, deploying high-speed wireless backhaul networks is effortless and streamlined.
Comprehensive Key Features:
5 GHz Long-Range Wireless Link: 2x2 MIMO 802.11ac technology delivering up to 867 Mbps PHY rate across distances up to 5 km.
High-Gain Directional Antenna: Integrated 19 dBi antenna optimizes signal clarity and reduces interference in dense RF environments.
Dual GbE Ports with PoE Pass-Through: Includes (2) Gigabit Ethernet RJ45 ports supporting PoE input and passive PoE output for powering downstream devices.
Automated Auto-Link Deployment: Effortless device provisioning and automatic link establishment managed through the UniFi Network platform.
IPX6 Weatherproof Enclosure: UV-resistant polycarbonate housing engineered to endure harsh weather and wind loads up to 69 N at 200 km/h.
Signal Diagnostics: Integrated visual LED indicator bar for real-time link alignment, signal strength, and power status monitoring.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: UDB-Pro (UniFi Device Bridge Pro)
Dimensions: Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
Weight: Without Mount: 431 g (0.95 lbs) | With Mount: 515 g (1.1 lbs)
Enclosure Material: UV-resistant Polycarbonate, Stainless Steel
Ingress Protection: IPX6
Mounting Options: Pole mount (included, supports 20–53.1 mm pipe diameter) and wall mount
LED Status: System, Power, (2) Ethernet status, (4) Signal strength LEDs
2. Networking & Wireless Parameters:
Network Interfaces: (2) 10/100/1000 Mbps RJ45 Ports
Wi-Fi Standard: 802.11a/n/ac (WiFi 5)
MIMO Configuration: 5 GHz 2x2 MIMO
Max. Data Rate: 867 Mbps at 80 MHz channel bandwidth
Antenna Gain: 19 dBi
Max. TX Power: 25 dBm
3. Electrical & Operational Parameters:
Power Method: 48V, 0.32A PoE Adapter (Included) or 802.3af/at PoE
Supported Input Voltage: 42.5 to 57V DC
Max. Power Consumption: 9W (Excluding PoE Output)
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC
