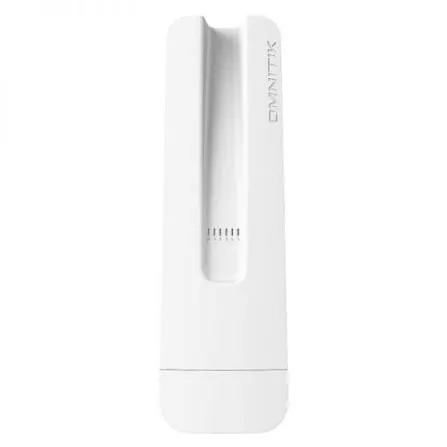

The MikroTik OmniTik 5 PoE ac (RBOmniTikPG-5HacD) is a high-performance outdoor wireless Access Point and router engineered for high-density 5 GHz wireless networks, point-to-multipoint (PtMP) setups, and wireless ISP (WISP) infrastructure. Housed in an IP54 weatherproof enclosure designed to withstand harsh outdoors, it features two integrated 5 GHz omnidirectional antennas delivering 360-degree coverage with a peak gain of 7.5 dBi.
Powered by a 720 MHz processor and 128 MB RAM, the OmniTik 5 PoE ac includes five Gigabit Ethernet ports, four of which offer dynamic PoE-output functionality to power external devices like IP cameras or SXT client units. Supported by high-speed 802.11ac Wi-Fi technology, a USB Type-A port for 3G/4G modems, and a RouterOS Level 4 license, it provides an all-in-one solution for outdoor wireless routing and distribution.
Comprehensive Key Features
802.11ac High-Speed Dual-Chain Wireless: Supports 5 GHz Wi-Fi standards (802.11a/n/ac) delivering wireless data rates up to 867 Mbps.
Integrated Dual 7.5 dBi Omni Antennas: Provides complete 360-degree wireless coverage without requiring external antenna additions.
5x Gigabit Ethernet Ports with PoE-Out: 5x 10/100/1000 Mbps RJ45 ports; Ports 2–5 support Passive PoE output to power downstream network devices.
Rugged Weatherproof Enclosure: UV-resistant IP54-rated outdoor housing engineered for operation in extreme environmental temperatures and weather conditions.
USB Expansion Interface: Includes 1x USB Type-A port supporting external storage drives or 3G/4G/LTE USB cellular failover modems.
RouterOS L4 Enterprise Suite: Driven by RouterOS Level 4, supporting wireless AP/Bridge modes, advanced firewall policies, bandwidth queues, and VPNs.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RBOmniTikPG-5HacD (OmniTik 5 PoE ac)
Dimensions: 0.416 m × 0.129 m × 0.058 m (416 × 129 × 58 mm)
Weight: 0.520 kg
CPU: QCA9557 Single-Core @ 720 MHz
RAM: 128 MB
Storage: 16 MB Flash
Enclosure Material: Weatherproof UV-stabilized Outdoor Plastic Housing
Mounting Options: Pole mount (metal hose clamp included)
2. Wireless, Networking & Performance Parameters
Wireless Band: 5 GHz (802.11a/n/ac dual-chain)
Antenna Gain: 7.5 dBi integrated omnidirectional antennas
Max Wi-Fi Speed: Up to 867 Mbps (5 GHz)
Ethernet Ports: 5× 10/100/1000 Mbps RJ45 Ports
USB Interface: 1× USB 2.0 Type-A
Operating System: MikroTik RouterOS (License Level 4)
3. Electrical & Environmental Parameters
Power Method: DC Power Jack or Passive PoE-in (Port 1)
Input Voltage Range: 12 – 57 V DC
Included Power Supply: 28V DC / 2.57A (72W) Power Adapter + Gigabit PoE Injector
PoE Out Capabilities: Passive PoE on Ports 2–5 (output voltage matches input voltage; max 1A per port if input < 30V, max 0.5A per port if input > 30V)
Max Power Consumption: 66 W (with full PoE output load), 14 W (without attachments)
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
| brand | Mikrotik |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
