The Ubiquiti UniFi Switch Pro XG 24 PoE (Model: USW-Pro-XG-24-PoE) is a full 10-Gigabit Layer 3 rackmount switch designed to remove network bottlenecks in modern enterprise environments, wireless access point infrastructure, and bandwidth-intensive studio networks. Featuring a 520\text{ Gbps} total switching capacity and a 386.88\text{ Mpps} forwarding rate, this unit provides non-blocking multi-gigabit throughput across all copper and fiber interfaces simultaneously.
The switch is configured with (24) 10GbE RJ45 Ethernet ports—16 of which support 802.3bt PoE++ to supply high-power endpoints such as Wi-Fi 6/7 access points, PTZ cameras, and IP audio equipment—supported by an internal 720\text{W} total PoE budget. Dual 25G SFP28 slots ensure low-latency optical backhaul connections directly to core network hardware. Integrated hardware features include a 1.3\text{"} touchscreen display with Augmented Reality (AR) port identification via the UniFi Mobile App, advanced Layer 3 routing capabilities (inter-VLAN routing, static routing, DHCP server), and a proprietary SmartPower DC input port for zero-downtime backup when connected to a USP-RPS system.
Comprehensive Key Features:
Full 10G Copper & 25G Fiber Topology: (24) 10GbE RJ45 ports paired with (2) 25G SFP28 high-speed uplink ports.
802.3bt PoE++ Power Delivery: (16) 10GbE ports offer auto-sensing 802.3af/at/bt PoE++ supplying up to 60\text{W} per port.
720W Total PoE Budget: High-capacity internal power supply designed to power dense deployment of high-power PoE devices.
Advanced Layer 3 Functionality: Supports inter-VLAN routing, static routing, and localized DHCP server functions directly on the hardware.
UniFi SmartPower Redundancy (USP-RPS): Includes a SmartPower DC input port for continuous operation in the event of an internal AC power supply failure.
Integrated 1.3" Touchscreen & AR Support: Front-panel LCM display provides real-time status diagnostics, system monitoring, and mobile Augmented Reality port overlay mapping.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: USW-Pro-XG-24-PoE

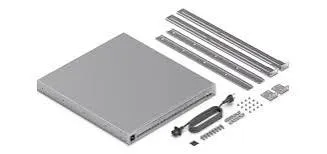

Form Factor: 1U Rackmount (Rackmount Brackets Included)
Dimensions: 442.4 x 325.0 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight: 5.20 kg (11.46 lbs) / With Brackets: 5.30 kg (11.68 lbs)
Enclosure Material: SGCC Steel, Aluminum Alloy
Display: 1.3" Color Touchscreen LCM Display
Processor / Memory: Dual-Core ARM® Cortex®-A57 at 1.7 GHz | 4 GB DDR4
2. Networking, Performance & Power over Ethernet:
Total Non-Blocking Throughput: 260 Gbps
Switching Capacity: 520 Gbps
Forwarding Rate: 386.88 Mpps
Networking Interfaces: (16) 10GbE 802.3bt PoE++ RJ45 Ports, (8) 10GbE RJ45 Ports, (2) 25G SFP28 Optical Ports
PoE Interfaces: (16) Ports 1–16: 802.3af/at/bt PoE++ (Pairs 1, 2+ / 3, 6- or 4, 5+ / 7, 8-)
Max. PoE Wattage per Port: 802.3at: 30W | 802.3bt: 60W
Total Available PoE Budget: 720W
Voltage Range (PoE Mode): 802.3af: 44–57V DC | 802.3at/bt: 50–57V DC
3. Electrical, Thermal & Environmental Parameters:
Power Method: (1) Universal AC Input 100–240V AC, 50/60 Hz | (1) USP-RPS DC Input (52V DC, 13.84A / 11.5V DC, 5.22A)
Power Supply: Internal 800W AC/DC Power Supply
Max. Power Consumption (Excluding PoE Output): 100W
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Ambient Operating Temperature: -5°C to 40°C (23°F to 104°F)
Operating Humidity: 10% to 90% Non-condensing
Certifications: CE, FCC, IC
