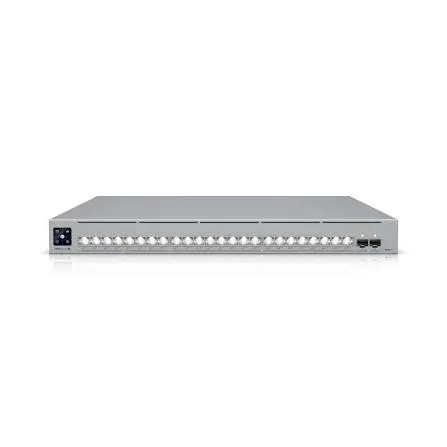

The Ubiquiti UniFi Switch Pro Max 24 PoE (Model: USW-Pro-Max-24-PoE) is a high-performance Layer 3 managed switch engineered for high-density enterprise, campus, and multi-gigabit access networks. Featuring Ubiquiti's Etherlighting technology for visual port status monitoring and cable management, the switch integrates multi-gigabit RJ45 interfaces with high-capacity Power over Ethernet (PoE+ and PoE++) output alongside high-speed 10G SFP+ uplink ports.
Equipped with 24 total RJ45 ports—including (8) 2.5 GbE PoE++ ports and (16) 1 GbE ports with PoE+ and PoE++ output—the switch delivers a massive 400W total PoE availability. Managed centrally via the UniFi Network Application, it features advanced Layer 3 routing capabilities, a 1.3" LCM color touchscreen display, and a UniFi SmartPower DC input port for uninterrupted power supply redundancy.
Comprehensive Key Features:
Etherlighting Technology: Patented illuminated ports indicate port location, speed/duplex, native VLAN, and custom network status visually on the front panel.
Multi-Gigabit Ethernet Ports: Features (8) 2.5 GbE RJ45 ports alongside (16) 1 GbE RJ45 ports to eliminate network bottlenecks for WiFi 6E/7 access points.
High-Capacity PoE+ / PoE++ Budget: Delivers up to 400W total PoE budget with (8) 802.3bt PoE++ ports (up to 60W per port) and (16) 802.3at PoE+ ports (up to 30W per port).
10G SFP+ Optical Uplinks: Equipped with (2) 10G SFP+ ports for high-bandwidth fiber backhaul to core switches or storage servers.
Enterprise Layer 3 Switching: Supports Inter-VLAN routing, static routing, DHCP server capabilities, and advanced traffic isolation management.
DC Power Redundancy: Features a UniFi SmartPower RPS DC input connection to protect against internal AC power supply failures.
Integrated Touchscreen Display: 1.3" LCM color touchscreen provides instant system monitoring, real-time bandwidth usage, and hardware diagnostic reporting.
Extended Technical Specifications:
Hardware & Physical Parameters:
Model / SKU: USW-Pro-Max-24-PoE (UniFi Switch Pro Max 24 PoE)
Dimensions: 442.4 x 325 x 43.7 mm (17.42 x 12.80 x 1.72")
Weight: 5.1 kg (11.24 lb) | With Mounting Brackets: 5.2 kg (11.46 lb)
Enclosure Material: SGCC Steel
Mount Material: SGCC Steel Rack Mount (1U Rackmount Included)
Display: 1.3" Color Touchscreen LCM
Status LEDs: Etherlighting Port Illumination, System Status
Wireless, Networking & Performance Parameters:
Total RJ45 Ports: (8) 2.5 GbE Ports, (16) 1 GbE Ports
Uplink Interfaces: (2) 10G SFP+ Ports
PoE Interfaces: (8) 802.3bt PoE++ Ports (Pairs A 1, 2+; 3, 6- / Pairs B 4, 5+; 7, 8-), (16) 802.3at PoE+ Ports
Max. PoE Wattage per Port: 802.3at (PoE+): 30W | 802.3bt (PoE++): 60W
Total Available PoE Budget: 400W
Non-Blocking Throughput: 56 Gbps
Switching Capacity: 112 Gbps
Forwarding Rate: 83.328 Mpps
Management Interface: Ethernet, Bluetooth
Electrical & Environmental Parameters:
Power Method: (1) Universal AC Input 100–240V AC, 6A Max., 50/60 Hz; (1) USP-RPS DC Input 52V DC, 7.7A / 11.5V DC, 2.61A
Power Supply: Internal AC/DC 450W
Max. Power Consumption: 50W (excluding PoE output)
ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Regulatory Certifications: CE, FCC, IC
