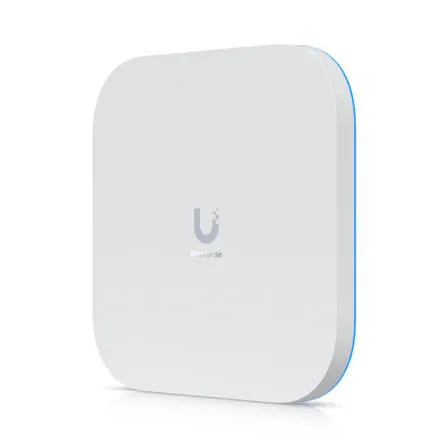

The Ubiquiti UniFi E7 / Enterprise 7 (Model: U7-Enterprise) is a premium flagship Access Point engineered to deliver maximum wireless throughput and ultra-low latency in high-density corporate offices, university campuses, and large public venues. Built to harness the clean, interference-free 6 GHz spectrum, the U7 Enterprise combines multi-gigabit wireless performance with robust enterprise networking standards.
Featuring tri-band radios operating on 2.4 GHz (2x2 MIMO), 5 GHz (4x4 MIMO), and 6 GHz (4x4 MIMO), the device supports full 320 MHz channel widths and 4096-QAM. To ensure that high-speed over-the-air performance is not throttled at the switch, the U7 Enterprise features a 10GbE RJ45 Ethernet uplink. Housed in a sleek, white UV-stabilized polycarbonate and aluminum chassis, the access point integrates seamlessly into the UniFi Network software for centralized management, spectral analysis, and automated RF optimization.
Comprehensive Key Features:
Wi-Fi 7 Tri-Band Architecture: Concurrent operation across 2.4 GHz, 5 GHz, and 6 GHz bands utilizing 320 MHz channel bandwidth and 4096-QAM modulation.
10 Gbps Ethernet Uplink: Integrated 10GbE RJ45 interface designed for multi-gigabit switch connections and high-throughput backhaul.
10 Spatial Streams: 10 total spatial streams (2x2 on 2.4 GHz, 4x4 on 5 GHz, 4x4 on 6 GHz) providing up to 18.7 Gbps total over-the-air speed.
High-Density Capacity: Supports 600+ active concurrent client connections with advanced MU-MIMO and OFDMA traffic scheduling.
Ceiling & Wall Mounting System: Includes a rigid aluminum backing plate designed for quick drop-ceiling or drywall installation.
PoE+ Powered: Powered via standard 802.3at PoE+ for simple single-cable data and power delivery.
Extended Technical Specifications:
1. Hardware & Physical Security:
Model / SKU: U7-Enterprise / UniFi E7 (UniFi Enterprise 7 Access Point)
Dimensions: Ø220.0 x 48.1 mm (Ø8.66 x 1.89")
Weight: Without Mount: 960 g (2.12 lbs) | With Mount: 1090 g (2.40 lbs)
Enclosure Material: Polycarbonate, Aluminum Alloy
Mounting: Ceiling and Wall Mount Plate (Included)
Color: White
2. Wireless, Networking & Performance Parameters:
Wi-Fi Standards: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Radio Streams (MIMO): 2.4 GHz: 2x2 | 5 GHz: 4x4 | 6 GHz: 4x4
Max. Data Rates: 2.4 GHz: 688 Mbps | 5 GHz: 8648 Mbps | 6 GHz: 9336 Mbps
Uplink Interface: (1) 10GbE RJ45 Port
Concurrent Clients: 600+ Active Devices
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
3. Electrical & Environmental Parameters:
Power Method: 802.3at PoE+
Supported Voltage Range: 44 to 57V DC
Max. Power Consumption: 25W
Ambient Operating Temperature: -30°C to 50°C (-22°F to 122°F)
Ambient Operating Humidity: 5% to 95% Non-condensing
Certifications: CE, FCC, IC, Wi-Fi Certified 7
