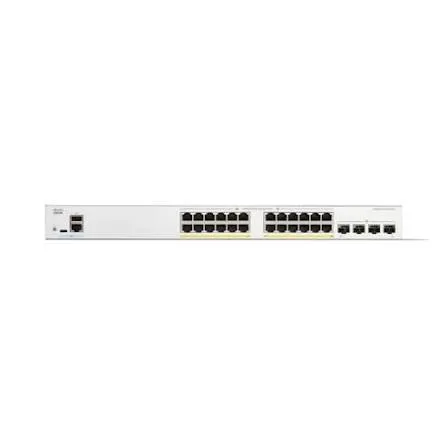

The Cisco Catalyst 1300 Series Switch, Model C1300-24FP-4X, is a next-generation fixed-configuration managed Gigabit Ethernet switch engineered to serve as the critical access layer and aggregation backbone for growing small-to-medium businesses, enterprise branch offices, and commercial deployments.
Featuring (24) 10/100/1000 Mbps RJ45 PoE+ ports with a dedicated 375W Full Power Budget, this unit delivers consistent, uninterrupted Power over Ethernet (802.3af/at) to power-dense deployments—including Wi-Fi 6/6E Wireless Access Points, High-Definition PTZ IP Surveillance Cameras, and IP Telephony systems. The switch is anchored by (4) 10-Gigabit SFP+ optical ports for ultra-low latency, high-bandwidth uplinks directly to core network infrastructure or high-performance servers.
Driven by a powerful ARM dual-core 1.4 GHz processor with 1 GB DDR4 RAM and 512 MB Flash memory, the C1300-24FP-4X operates with an internal 128 Gbps switching capacity and a 95.23 Mpps forwarding rate. It supports dynamic True Stacking (up to 8 switches per stack), permitting centralized management and unified configuration across up to 400 total ports under a single IP address.
Detailed Hardware & Network Capabilities:
Full Power over Ethernet (375W PoE Budget): Delivers up to 30W per port (IEEE 802.3at PoE+), enabling all 24 ports to run standard PoE simultaneously or up to 12 ports at full 30W PoE+ capacity without power starving.
High-Speed Uplink & Stacking Flexibility: (4) 10G SFP+ slots support both short/long-reach fiber transceivers (SR/LR) and Direct Attach Copper (DAC) cables, allowing dual-purpose deployment as high-speed uplinks or dedicated inter-switch stacking channels.
Advanced Layer 3 Routing Infrastructure: Supports wire-speed IPv4 and IPv6 static routing, Dynamic Routing via RIP v2, Policy-Based Routing (PBR), inter-VLAN routing, and localized DHCP server/relay functionality.
Enterprise Security Architecture: Integrated IEEE 802.1X port authentication, RADIUS/TACACS+ integration, Advanced Access Control Lists (ACLs), IP Source Guard, Dynamic ARP Inspection (DAI), Secure Shell (SSH), and DoS attack prevention.
Intuitive Network Management & Operations: Simplified administration via an HTML-based Web User Interface, Command Line Interface (CLI), SNMP, Cisco Business Dashboard, and direct front-panel USB-C console and storage ports.
Energy-Efficient & Quiet Thermal Design: Incorporates Energy Efficient Ethernet (IEEE 802.3az) standards and a smart-regulated single cooling fan operating at low noise levels (~39 dBA) for quiet rackmount operation.
| brand | Cisco |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
