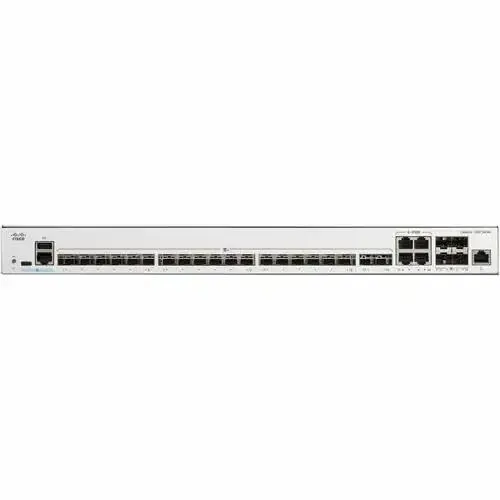

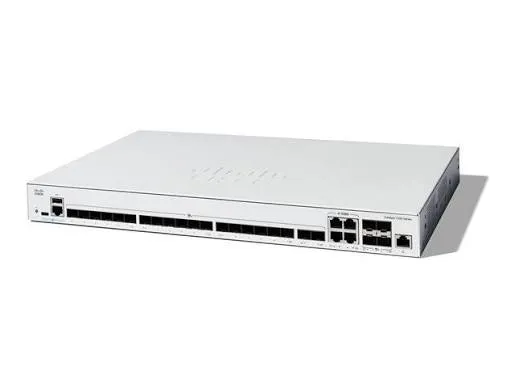

The Cisco Catalyst 1300 Series Switch, Model C1300-24XS, is an enterprise-class, fixed-configuration 10-Gigabit managed switch engineered to deliver exceptional performance, ultra-high bandwidth, and robust reliability for core and aggregation layers in small and medium-sized business (SMB) networks, data centers, and enterprise branch offices. Equipped with (24) 10-Gigabit SFP+ optical ports alongside (4) 10G SFP+/RJ45 combo ports, this high-density 10G switch eliminates network bottlenecks, providing high-speed backbone connections for high-performance servers, Network Attached Storage (NAS), and core distribution switching.
Powered by an advanced multi-core processor paired with high-capacity RAM and Flash memory, the C1300-24XS delivers non-blocking wire-speed switching performance. It supports advanced Layer 3 capabilities, including static routing and inter-VLAN routing, allowing organizations to segment their network for enhanced traffic optimization and security without requiring complex core routing hardware.
Key Features & Advanced Capabilities:
High-Density 10G Fiber Connectivity: Features (24) 10G SFP+ optical ports for flexible, high-speed fiber transceivers (SR/LR) or Direct Attach Copper (DAC) cables, plus (4) 10G SFP+/RJ45 combo ports for versatile copper or optical uplink deployment.
Advanced Layer 3 Static Routing: Supports IPv4 and IPv6 static routing for efficient inter-VLAN communication, reducing traffic load on the primary router and improving overall network efficiency.
Comprehensive Network Security: Incorporates enterprise-grade security mechanisms including IEEE 802.1X port security, Access Control Lists (ACLs), Secure Shell (SSH) encryption, RADIUS/TACACS+ authentication, DHCP snooping, and safeguards against network attacks.
Flexible Management Options: Simplifies configuration, provisioning, and monitoring through an intuitive HTML-based Web User Interface, Command Line Interface (CLI), SNMP, and centralized management via the Cisco Business Dashboard or mobile application.
Reliable Enterprise Engineering & Thermal Design: Features robust hardware architecture, optimized cooling airflow, and Energy Efficient Ethernet (IEEE 802.3az) compliance for continuous 24/7 operation in server rooms and enterprise racks.
| brand | Cisco |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
