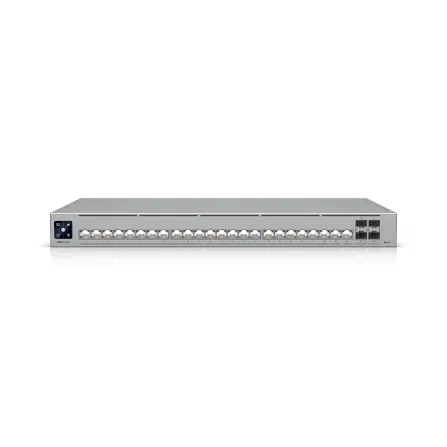

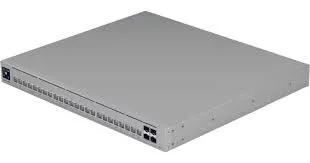

The Ubiquiti UniFi Switch Pro HD 24 (Model: USW-Pro-HD-24) specification description follows:
The Ubiquiti UniFi Switch Pro HD 24 (Model: USW-Pro-HD-24) is an advanced, high-density Layer 3 managed enterprise switch engineered for mission-critical networking, AV-over-IP deployments, and high-performance campus environments. Built to eliminate bandwidth bottlenecks across modern network backbones, the switch integrates multi-gigabit Ethernet connectivity with ultra-high-speed 25G SFP28 optical uplinks.
Featuring 24 total RJ45 ports—including (12) 2.5 GbE multi-gigabit ports and (12) 1 GbE ports—the USW-Pro-HD-24 maximizes throughput for high-capacity WiFi 6E/7 access points, server clusters, and HD video streaming hardware. Managed centrally through the UniFi Network Application, it delivers enterprise-class Layer 3 routing features, Etherlighting port status illumination, a 1.3" LCM color touchscreen display, and a UniFi SmartPower DC input port for power redundancy.
Comprehensive Key Features:
- High-Speed 25G SFP28 Optical Uplinks: Equipped with (2) 25G SFP28 ports supporting 1G, 10G, and 25G transceivers for ultra-high-bandwidth backhaul connections.
- Multi-Gigabit Ethernet Density: Features (12) 2.5 GbE RJ45 ports and (12) 1 GbE RJ45 ports to accommodate next-generation wireless access points and high-speed clients.
- Etherlighting Port Illumination: Patented illuminated RJ45 ports visually display port location, link speed/duplex, native VLAN, and custom network status on the front panel.
- Advanced Layer 3 Enterprise Switching: Supports Inter-VLAN routing, static routing, DHCP server capabilities, and advanced traffic isolation policy enforcement.
- UniFi SmartPower DC Redundancy: Includes a USP-RPS DC input connection to protect against internal AC power supply failures and maintain continuous uptime.
- Integrated Touchscreen Display: 1.3" LCM color touchscreen provides live system diagnostics, port throughput monitoring, and device management telemetry.
- Near-Silent Thermal Design: Optimized internal airflow architecture ensures reliable, quiet cooling performance across high-density enterprise racks.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: USW-Pro-HD-24 (UniFi Switch Pro HD 24)

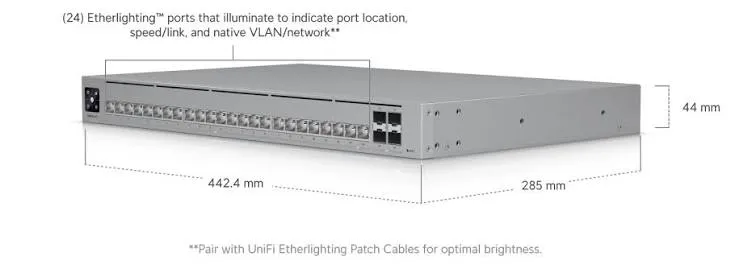

- Dimensions: 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
- Weight: 4.3 kg (9.48 lb) | With Mounting Brackets: 4.4 kg (9.70 lb)
- Enclosure Material: SGCC Steel
- Mount Material: SGCC Steel Rack Mount (1U Rackmount Brackets Included)
- Display: 1.3" Color Touchscreen LCM
- System Status LEDs: Etherlighting Port Illumination, System Telemetry
- Wireless, Networking & Performance Parameters:
- Total RJ45 Ports: (12) 2.5 GbE Ports, (12) 1 GbE Ports
- Uplink Interfaces: (2) 1G / 10G / 25G SFP28 Ports
- Non-Blocking Throughput: 84 Gbps
- Switching Capacity: 168 Gbps
- Forwarding Rate: 125 Mpps
- Management Interfaces: Ethernet, Bluetooth
- Layer Features: Layer 2, Layer 3 (Static Routing, Inter-VLAN Routing, DHCP)
- Electrical & Environmental Parameters:
- Power Method: (1) Universal AC Input 100–240V AC, 2A Max., 50/60 Hz; (1) USP-RPS DC Input 11.5V DC, 5.2A
- Power Supply: Internal AC/DC 60W
- Max. Power Consumption: 60W
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Regulatory Certifications: CE, FCC, IC
