The Ubiquiti UniFi Switch Enterprise 8 PoE (Model: USW-Enterprise-8-PoE) specification description follows:

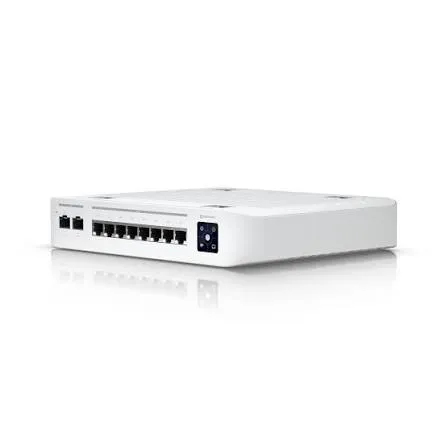

The Ubiquiti UniFi Switch Enterprise 8 PoE (Model: USW-Enterprise-8-PoE) is a compact, desktop-mountable Layer 3 managed enterprise switch designed to deliver multi-gigabit performance for high-density WiFi 6 and WiFi 6E/7 access point deployments. Engineered to eliminate bandwidth bottlenecks in enterprise branch offices, high-end workstations, and AV-over-IP networks, the switch features 2.5 GbE RJ45 connectivity alongside high-speed 10G SFP+ optical uplinks.
Equipped with (8) 2.5 GbE RJ45 ports featuring 802.3at PoE+ output, the USW-Enterprise-8-PoE delivers a 120W total PoE power budget to drive resource-intensive network hardware. Managed centrally via the UniFi Network Application, it offers advanced Layer 3 routing capabilities, silent fanless thermal operation, a 1.3" LCM color touchscreen for instant status telemetry, and versatile desktop or wall-mounting installation options.
Comprehensive Key Features:
- Multi-Gigabit Ethernet Ports: Features (8) 2.5 GbE RJ45 ports to unleash full throughput potential for WiFi 6/6E/7 access points and multi-gigabit clients.
- 120W PoE+ Power Budget: All 8 RJ45 ports support 802.3at PoE+ (up to 30W per port), providing up to 120W of total dynamic PoE power.
- 10G SFP+ Optical Uplinks: Equipped with (2) 10G SFP+ ports for high-bandwidth fiber backhaul to core enterprise switches or network storage.
- Enterprise Layer 3 Switching: Supports Inter-VLAN routing, static routing, DHCP server management, and advanced traffic isolation policy enforcement.
- Silent Fanless Operation: Advanced thermal engineering operates completely silently without internal fans, making it ideal for noise-sensitive office spaces.
- Integrated Touchscreen Display: 1.3" LCM color touchscreen display provides instant visual status, real-time bandwidth usage, and hardware diagnostic reporting.
- Flexible Mounting Options: Compact physical form factor supports clean desktop placement as well as secure wall mounting with included hardware.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: USW-Enterprise-8-PoE
- Dimensions: 200 x 248 x 44 mm (7.87 x 9.76 x 1.73")
- Weight: 2.4 kg (5.29 lb)
- Enclosure Material: Polycarbonate, Metal
- Mounting Options: Desktop, Wall-Mount (Kit Included)
- Display: 1.3" Color Touchscreen LCM
- Acoustic Noise Level: 0 dB(A) (Fanless Cooling)
- Wireless, Networking & Performance Parameters:
- Total RJ45 Ports: (8) 2.5 GbE Ports
- Uplink Interfaces: (2) 10G SFP+ Ports
- PoE Interfaces: (8) 802.3af/at PoE/PoE+ Ports (Pairs 1, 2+; 3, 6-)
- Max. PoE Wattage per Port: 30W (802.3at PoE+)
- Total Available PoE Budget: 120W
- Non-Blocking Throughput: 40 Gbps
- Switching Capacity: 80 Gbps
- Forwarding Rate: 59.52 Mpps
- Management Interfaces: Ethernet, Bluetooth
- Electrical & Environmental Parameters:
- Power Method: Universal AC Input 100–240V AC, 2A Max., 50/60 Hz
- Power Supply: Internal AC/DC 150W Power Supply
- Max. Power Consumption: 30W (excluding PoE output)
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Regulatory Certifications: CE, FCC, IC
