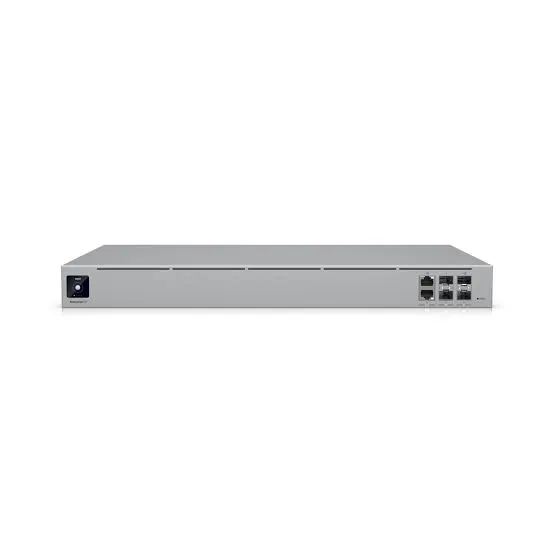

The Ubiquiti UniFi Enterprise Fortress Gateway (Model: EFG) specification description follows:
The Ubiquiti UniFi Enterprise Fortress Gateway (Model: EFG) is an ultra-high-performance, enterprise-grade security gateway and firewall appliance engineered for large-scale corporate networks, data centers, and multi-gigabit campus environments. Built to deliver maximum processing capacity and advanced threat management, the device provides non-blocking multi-gigabit routing alongside high-availability hardware features to ensure continuous network uptime and line-rate security filtering.
Featuring dual 25G SFP28 optical uplinks and dual 10G RJ45 Ethernet ports, the EFG delivers high-bandwidth connectivity for heavy enterprise traffic loads. Powered by UniFi Network software, it supports full stateful firewall inspection, high-performance Intrusion Prevention and Detection Systems (IPS/IDS), SSL/TLS decryption, redundant hot-swappable power supply units (PSUs), and a 1.3" LCM color touchscreen display for real-time visual telemetry and diagnostic monitoring.
Comprehensive Key Features:
- High-Capacity 25G SFP28 & 10G RJ45 Connectivity: Equipped with (2) 25G SFP28 ports and (2) 10G RJ45 ports for high-bandwidth WAN/LAN backhaul and server interconnects.
- Enterprise 12.5 Gbps IPS/IDS Throughput: Delivers line-rate deep packet inspection and full Intrusion Prevention/Detection with zero throughput performance degradation up to 12.5 Gbps.
- Full SSL/TLS Decryption & Traffic Inspection: Built-in encrypted traffic analysis allows deep packet filtering and threat detection across secure HTTPS and SSL sessions.
- Redundant Hot-Swappable Power Supplies: Features dual 550W AC power supply modules in a 1+1 redundant configuration to guard against power unit failures.
- Advanced Multi-WAN Load Balancing & Failover: Supports dynamic multi-WAN routing, automated failover, and policy-based traffic steering across high-speed internet links.
- Integrated Touchscreen Telemetry: 1.3" LCM color touchscreen display provides instant visual status, real-time threat metrics, and hardware health reporting.
- Enterprise Routing & VPN Performance: Supports high-throughput IPSec, WireGuard, and OpenVPN site-to-site and remote user tunnels with hardware acceleration.
Extended Technical Specifications:
- Hardware & Physical Parameters:
- Model / SKU: EFG (Enterprise Fortress Gateway)
- Dimensions: 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
- Weight: 4.8 kg (10.58 lb)
- Enclosure Material: SGCC Steel
- Mount Material: SGCC Steel Rack Mount (1U Rackmount Brackets Included)
- Display: 1.3" Color Touchscreen LCM
- System Status LEDs: Power, System Status, Link / Activity
- Wireless, Networking & Performance Parameters:
- Network Interfaces: (2) 1G / 10G / 25G SFP28 Ports, (2) 100/1000/2.5G/5G/10G RJ45 Ports
- Routing Throughput: Up to 25 Gbps Line-Rate Routing
- Threat Management Throughput: 12.5 Gbps (Full IPS/IDS Inspection)
- Supported Security Features: IPS/IDS, Content Filtering, SSL/TLS Inspection, Application Identification
- VPN Protocols: WireGuard, OpenVPN, L2TP, Site-to-Site IPSec
- Management Interface: UniFi Network Application (Ethernet / Bluetooth)
- Electrical & Environmental Parameters:
- Power Method: (2) Hot-Swappable Universal AC Inputs 100–240V AC, 50/60 Hz
- Power Supply: Dual 550W AC/DC Hot-Swappable Power Modules (1+1 Redundant)
- Max. Power Consumption: 150W
- ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Regulatory Certifications: CE, FCC, IC
