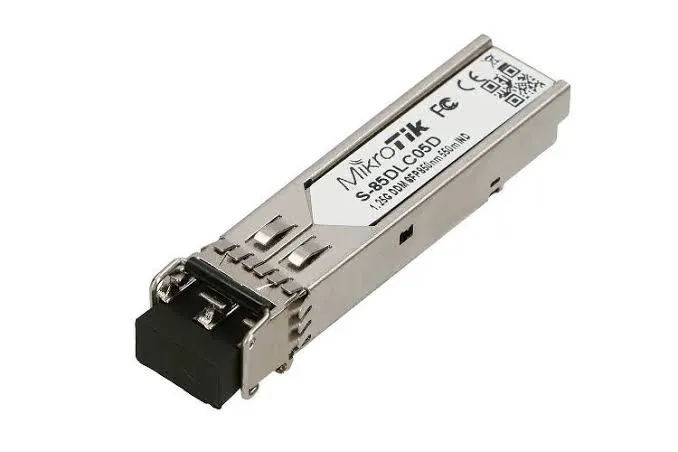

The MikroTik S-85DLC05D is an industrial-grade 1.25G Multi-Mode SFP optical transceiver engineered for high-speed local area networks, enterprise building interconnects, and data center fiber aggregation. Operating over standard multi-mode OM2/OM3/OM4 fiber optics at an 850nm VCSEL wavelength, it provides high-throughput transmission over distances up to 550 meters with minimal latency.
Equipped with a Dual LC connector interface, the module supports full Digital Diagnostic Monitoring (DDM / DOM), allowing network administrators to monitor critical operational metrics in real time through RouterOS or network management platforms. Housed in a compact, hot-swappable metallic casing, the S-85DLC05D is fully compliant with MSA (Multi-Source Agreement) standards and IEEE 802.3z 1000BASE-SX specifications, ensuring seamless plug-and-play interoperability across MikroTik routers, switches, and third-party network gear.
Comprehensive Key Features
1.25 Gbps Data Rate: Compliant with IEEE 802.3z 1000BASE-SX standards for Gigabit Ethernet fiber connections.
550 Meter Multi-Mode Range: Optimized for short-distance multi-mode fiber runs (550 m on 50/125 µm MMF / 275 m on 62.5/125 µm MMF).
Dual LC Optical Interface: Features standard Dual LC connectors for secure fiber cable latching and high-density port usage.
Integrated DDM / DOM Monitoring: Supports real-time Digital Diagnostic Monitoring for tracking temperature, voltage, TX/RX optical power, and laser bias current.
Hot-Pluggable & MSA Compliant: Fully hot-swappable design following SFP MSA guidelines for effortless installation without interrupting network operations.
Wide Compatibility: Tested and verified for seamless operation with all MikroTik RouterBOARD devices with SFP/SFP+ slots and major industry switches.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: S-85DLC05D
Dimensions: 0.055 m × 0.014 m × 0.013 m (55 × 14 × 13 mm)
Weight: 0.020 kg (20 g)
Connector Type: Dual LC
Enclosure Material: Metallic Hot-Pluggable SFP Casing
Status Monitoring: DDM / DOM Supported
2. Optical, Networking & Performance Parameters
Data Rate: 1.25 Gbps
Fiber Type: Multi-Mode Fiber (MMF)
Wavelength: 850 nm
Max Distance: 550 m
Transmitter Type: VCSEL
Receiver Type: PIN
Standard Compliance: IEEE 802.3z 1000BASE-SX / SFP MSA
3. Electrical & Environmental Parameters
Power Supply Voltage: 3.3 V DC
Max Power Consumption: 1 W
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
