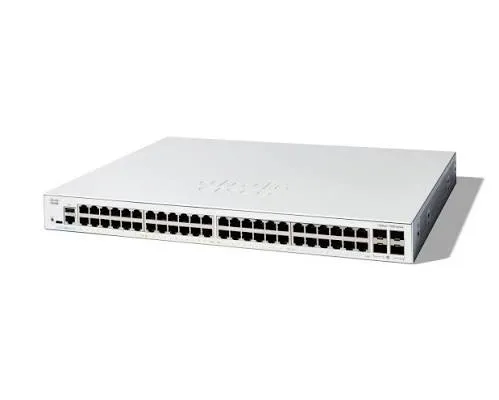

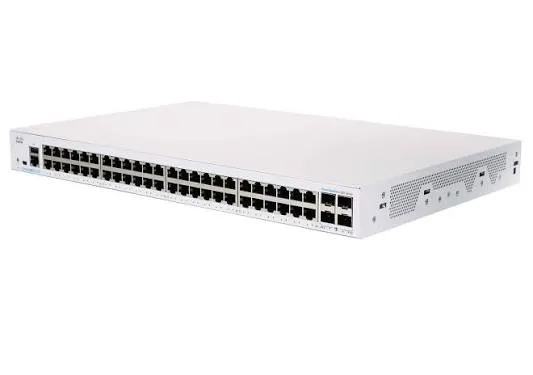

The Cisco Catalyst 1300 Series Switch, Model C1300-48T-4G, is an enterprise-class, fixed-configuration managed Gigabit Ethernet switch engineered to deliver high-density port capacity, reliable security, and high-performance network connectivity for small and medium-sized businesses (SMBs) and corporate branch offices. Equipped with (48) 10/100/1000 Mbps RJ45 ports (non-PoE), this switch delivers robust, wire-speed connectivity for large deployments of standard data endpoints, desktop computers, network printers, and non-powered network devices. In addition, (4) dedicated Gigabit SFP optical ports provide flexible, high-speed fiber uplink connections to core network infrastructure or across longer distribution distances.
Powered by an advanced ARM dual-core processor operating at 1.4 GHz, paired with 1 GB of RAM and 512 MB of Flash memory, the C1300-48T-4G delivers non-blocking wire-speed switching performance with a switching capacity of 104 Gbps and a forwarding rate of 77.38 Mpps. It supports advanced Layer 3 capabilities, including static routing and inter-VLAN routing, allowing organizations to segment their network for enhanced traffic optimization and security without requiring complex core routing hardware.
Key Features & Advanced Capabilities:
High-Density Gigabit Connectivity: Features (48) 10/100/1000 Mbps copper ports designed for high-capacity everyday enterprise networking and device connectivity.
Gigabit Fiber Uplinks: Features (4) built-in SFP optical slots supporting 1G fiber transceivers or Direct Attach Copper (DAC) cables for reliable, high-speed backbone connections.
Layer 3 Static Routing: Supports IPv4 and IPv6 static routing for efficient inter-VLAN communication, reducing traffic load on the primary router and improving overall network efficiency.
Comprehensive Network Security: Incorporates enterprise-grade security mechanisms including IEEE 802.1X port security, Access Control Lists (ACLs), Secure Shell (SSH) encryption, RADIUS/TACACS+ authentication, DHCP snooping, and safeguards against network attacks.
Flexible Management Options: Simplifies configuration, provisioning, and monitoring through an intuitive HTML-based Web User Interface, Command Line Interface (CLI), SNMP, and centralized management via the Cisco Business Dashboard.
Energy-Efficient Design: Complies with Energy Efficient Ethernet (IEEE 802.3az) standards to reduce power consumption during periods of low data activity, complemented by an optimized thermal design suitable for office and enterprise rack environments.
| brand | Cisco |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
