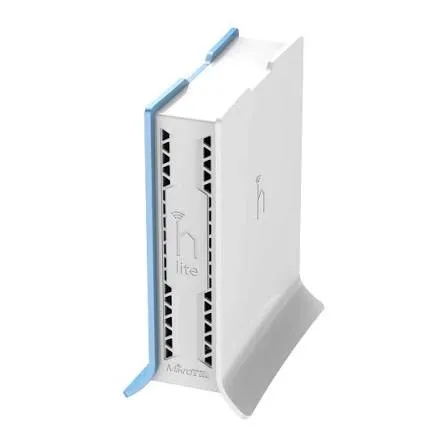

The MikroTik hAP lite TC (Model: RB941-2nD-TC) is a lightweight, budget-friendly desktop wireless router designed for small home office (SOHO) networks, student apartments, and customer premises equipment (CPE) deployments. Featuring a distinctive upright Tower Case (TC) enclosure in blue and white, it occupies minimal desk space while delivering reliable indoor wireless coverage and full enterprise routing features.
At its core, the device is powered by a Qualcomm QCA9531 single-core processor operating at 650 MHz, paired with 32 MB RAM and 16 MB flash storage. The integrated dual-chain 2.4 GHz wireless radio supports 802.11b/g/n standards with physical data rates up to 300 Mbps, driven by internal dual-polarized omnidirectional antennas with 1.5 dBi gain. A physical WPS button on the front panel allows users to quickly connect mobile devices or switch to CAPsMAN mode for centralized access point deployment.
For wired connections, the hAP lite TC includes 4x 10/100 Mbps Fast Ethernet RJ45 ports (1x WAN, 3x LAN). Power is supplied through a standard 5V microUSB port, allowing flexible operation using the included wall adapter or secondary USB power sources. Driven by full-featured MikroTik RouterOS Level 4, it provides complete administrative control over user access limits, bandwidth shaping queues, firewall filtering, custom guest portals, and VPN connectivity.
Comprehensive Key Features
Compact Tower Design: Stylish vertical desktop enclosure occupies minimal space with a modern aesthetic for homes and offices.
Dual-Chain 2.4 GHz Wireless: Integrated 802.11b/g/n Wi-Fi radio providing speeds up to 300 Mbps over 2.4 GHz.
Hardware WPS & CAPsMAN Button: Single-push physical button for WPS client connection or quick switching to CAPsMAN controlled access point mode.
4x Fast Ethernet Ports: Features 4x 10/100 Mbps RJ45 ports for local wired devices and ISP WAN input.
microUSB Power Interface: Convenient 5V microUSB powering allows easy deployment with standard USB power supplies.
RouterOS L4 Base Suite: Pre-installed with RouterOS Level 4, granting full control over firewall rules, bandwidth queues, user management, and VPN gateways.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RB941-2nD-TC (hAP lite TC)
Dimensions: 0.124 m × 0.100 m × 0.054 m (124 × 100 × 54 mm)
Weight: 0.140 kg (140 g)
CPU: QCA9531 Single-Core @ 650 MHz
RAM: 32 MB
Storage: 16 MB Flash
Power Interface: 1× microUSB (5 V DC)
Enclosure Material: Blue & White Desktop Plastic Tower Casing
Status LEDs: Power, User LED, Ethernet Port Indicators
2. Wireless, Networking & Performance Parameters
Wireless Standards: 2.4 GHz (802.11b/g/n dual-chain)
Antenna Gain: 1.5 dBi (Integrated internal antennas)
Max Wireless Data Rate: Up to 300 Mbps
Ethernet Ports: 4× 10/100 Mbps RJ45 Ports
Operating System: MikroTik RouterOS (License Level 4)
Architecture: SMIPS
3. Electrical & Environmental Parameters
Power Method: microUSB Port (5 V DC, 0.7 A)
Included Power Accessories: 5 V DC / 0.7 A Power Adapter (microUSB)
Max Power Consumption: 3.5 W
Cooling Type: Passive
Operating Temperature: -20°C to 70°C (-4°F to 158°F)
