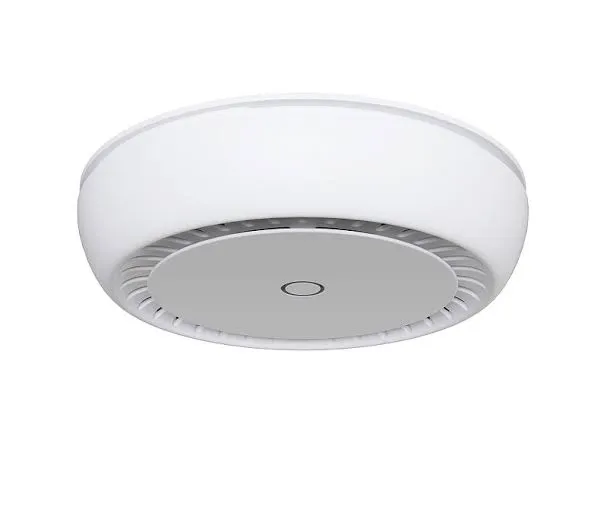

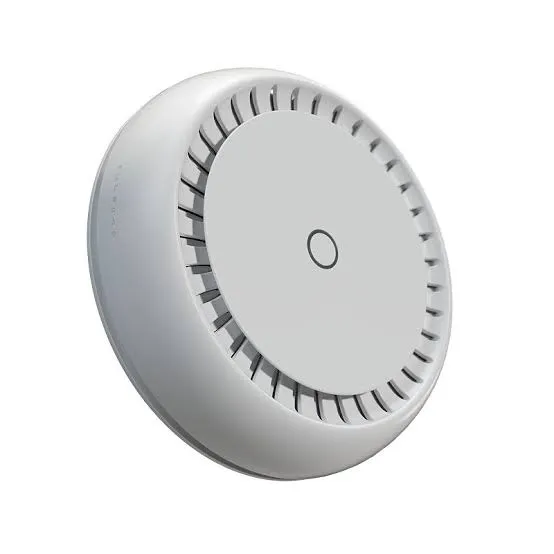

The MikroTik cAP XL ac (Model: RBcAPGi-5acD2nD-XL) is a premium, high-performance ceiling access point engineered to provide extended wireless coverage and high client density in office buildings, shopping centers, hospitality venues, and residential networks. Featuring a redesigned XL chassis with an enlarged reflector casing, it incorporates higher-gain dual-chain antennas delivering up to 6 dBi at 2.4 GHz and 5.5 dBi at 5 GHz, providing up to 100% increased coverage area compared to standard cAP models.
Powered by a quad-core Qualcomm IPQ-4018 processor running at 716 MHz paired with 128 MB RAM, the cAP XL ac operates simultaneously on 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac) bands. It features two Gigabit Ethernet ports: Port 1 accepts standard 802.3af/at PoE input, while Port 2 provides Passive PoE output to supply power to downstream network equipment like IP cameras or secondary access points. The unit includes both round and square low-profile mounting plates for seamless ceiling or wall integration, managed centrally via MikroTik CAPsMAN or operating standalone on RouterOS Level 4.
Comprehensive Key Features
XL Antenna & High-Gain Design: Re-engineered extra-large casing houses high-gain dual-chain antennas (6 dBi on 2.4 GHz, 5.5 dBi on 5 GHz) for superior wall penetration and extended range.
Dual-Band Concurrent Wi-Fi: Delivers simultaneous 2.4 GHz (up to 300 Mbps) and 5 GHz (up to 867 Mbps) wireless speeds using 802.11ac wave 1 technology.
Dual Gigabit Ethernet Ports: Includes 2x 10/100/1000 Mbps RJ45 ports for high-speed wired backhaul connection.
PoE-In & PoE-Out Versatility: Accepts 802.3af/at PoE power on Port 1 and offers Passive PoE output on Port 2 (up to 57V) to power secondary devices.
Flexible Ceiling & Wall Mount Brackets: Ships with interchangeable sleek round and square mounting brackets for clean aesthetic integration.
CAPsMAN Central Management Integration: Controlled via MikroTik's CAPsMAN network manager for seamless centralized access point control, roaming, and mesh deployments.
Extended Technical Specifications
1. Hardware & Physical Parameters

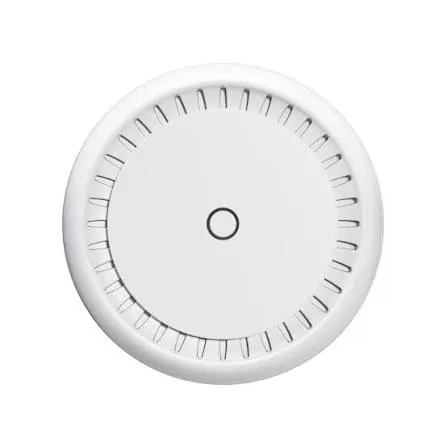

Model / SKU: RBcAPGi-5acD2nD-XL (cAP XL ac)
Dimensions: 0.191 m × 0.191 m × 0.042 m (191 × 191 × 42 mm)
Weight: 0.330 kg
CPU: IPQ-4018 Quad-Core ARM 32-bit @ 716 MHz
RAM: 128 MB
Storage: 16 MB Flash
Enclosure Material: Sleek White Indoor Plastic Casing (Round and Square plates included)
Status LEDs: Center Mode Button LED, Port Status, Wireless Status Indicators
2. Wireless, Networking & Performance Parameters
Wireless Standards: 2.4 GHz (802.11b/g/n dual-chain), 5 GHz (802.11a/n/ac dual-chain)
Antenna Gain: 2.4 GHz: 6 dBi; 5 GHz: 5.5 dBi
Max Wi-Fi Speed: Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Ethernet Ports: 2× 10/100/1000 Mbps RJ45 Ports
Operating System: MikroTik RouterOS (License Level 4)
Architecture: ARM 32-bit
3. Electrical & Environmental Parameters
Power Method: 802.3af/at PoE-In or Passive PoE-In on Port 1 (18 – 57 V DC) / DC Jack
Included Power Supply: 24 V DC / 1.2 A Power Adapter + Gigabit PoE Injector
PoE Output: Passive PoE-Out on Port 2 (Max 500 mA, matches input voltage)
Max Power Consumption: 24 W (11 W without PoE output attachments)
Cooling Type: Passive
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
