FortiAP-U431F Indoor Wireless Universal AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 2x2 MU-MIMO), Internal antennas, 1x 100/1000/2500 Base-T R45, 1x 10/100/1000 Base-T RI45,, 1x Type A US8, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: 802.3at PoE injector GPI-130. Optional DC power adaptor SKU SP-FAP43F-PA-X-5. Region Code E

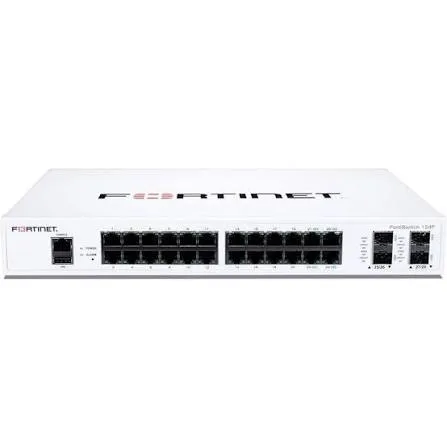

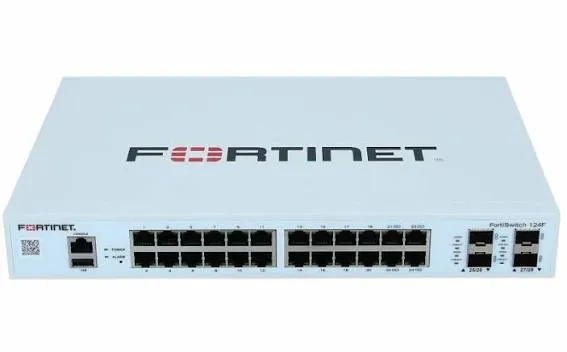

The Fortinet FortiSwitch 124F is a compact, high-performance Secure Access Switch designed to deliver reliable Ethernet connectivity and unified network management for mid-sized enterprise branch offices and small-to-medium businesses. Tightly integrated into the Fortinet Security Fabric, it can be managed directly through the intuitive FortiGate interface via FortiLink, extending firewall access policies directly to the switch port level.
Featuring a fanless passive cooling design, the FS-124F operates in complete silence, rendering it ideal for open office layouts, conference rooms, and noise-sensitive deployments. With 24 Gigabit Ethernet RJ45 ports and 4 dedicated Gigabit SFP optical slots for high-speed fiber uplinks, it ensures low-latency traffic forwarding and simplified network scalability.
Comprehensive Key Features
Security Fabric Integration: Managed seamlessly as a logical extension of the FortiGate firewall via FortiLink, enabling single-pane-of-glass management and policy enforcement.
Fanless Silent Operation: Engineered with a passive cooling architecture for 0 dBA fanless operation in noise-constrained environments.
Layer 2 Switching & Security: Supports wire-speed Layer 2 switching, VLAN tagging, Link Aggregation (LACP), 802.1X port security, and Loop Guard.
Dedicated Fiber Uplinks: Equipped with 4x dedicated Gigabit SFP slots for long-reach fiber backbone or core switch connections.
Zero-Touch Provisioning: Facilitates quick network rollout with automated device detection and centralized configuration deployment.
1. Wireless, Networking & Performance Parameters
Ethernet Ports: 24 × GE RJ45 Ports (Non-PoE)
Fiber Ports: 4 × GE SFP Slots
Management Interface: 1 × RJ45 Serial Console Port
Switching Capacity: 56 Gbps
Forwarding Rate: 83.3 Mpps (Million Packets Per Second)
MAC Address Table Size: 8,000 Entries
VLANs Supported: 4,000
2. Electrical & Environmental Parameters
Power Method: Universal Internal AC Power Supply (100–240V AC, 50–60 Hz)
Max Power Consumption: 18.2 W
Heat Dissipation: 62.1 BTU/hr
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Operating Humidity: 10% to 90% non-condensing
