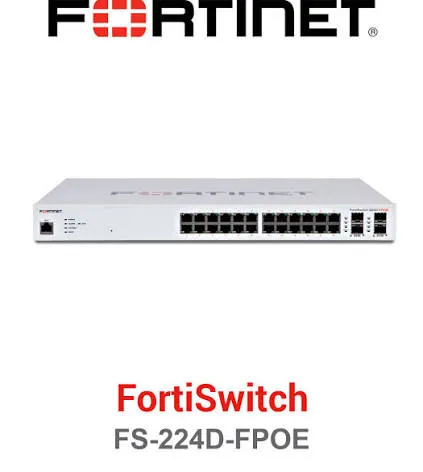

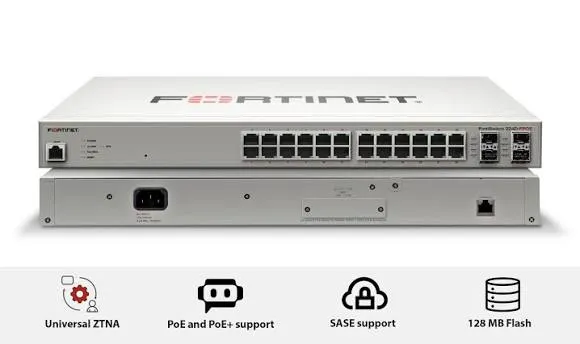

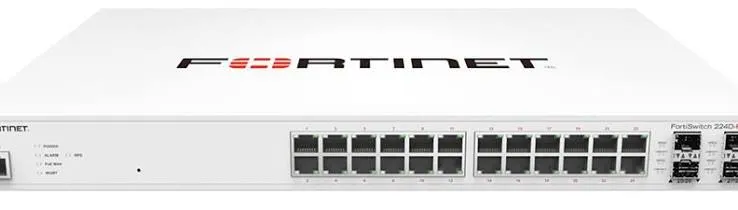

The Fortinet FortiSwitch 224D-FPOE is a feature-rich Secure Access Switch engineered to deliver high performance, flexible power delivery, and unified management for mid-sized enterprise networks and branch deployments. Tightly integrated into the Fortinet Security Fabric, it can be managed directly through the familiar FortiGate interface via FortiLink, extending firewall security policies directly down to the ethernet port level.
Equipped with 24 Full Power over Ethernet Plus (PoE+) ports capable of delivering up to 370W automatically, the FS-224D-FPOE simplifies edge deployment by supplying power and high-speed data to connected endpoints such as FortiAP wireless access points, IP phones, and surveillance systems without requiring extra power cabling.
Comprehensive Key Features
Security Fabric Integration: Managed seamlessly as a virtual extension of the FortiGate firewall via FortiLink, enabling centralized access control and security policies.
Full PoE+ Power Budget: Delivers up to 370W total PoE power across 24 GE ports with dynamic power allocation for 802.3af/at devices.
Layer 2/3 Switching Functionality: Supports wire-speed Layer 2 switching and basic Layer 3 static routing for efficient local traffic management.
High-Speed Uplinks: Features 4x dedicated Gigabit SFP fiber uplink slots for high-speed core or distribution switch connectivity.
Automated Network Provisioning: Supports zero-touch deployment and automated device detection for simplified management and lower operational costs.
1. Wireless, Networking & Performance Parameters
Ethernet Ports: 24 × GE RJ45 Ports (All 802.3af/at PoE+ Capable)
Fiber Ports: 4 × GE SFP Slots
PoE Power Budget: Automatic Max 370 W (PoE / PoE+)
Switching Capacity: 56 Gbps
Forwarding Rate: 83.3 Mpps (Million Packets Per Second)
MAC Address Table Size: 8,000 Entries
VLANs Supported: 4,000
2. Electrical & Environmental Parameters
Power Method: Universal Internal AC Power Supply (100–240V AC, 50–60 Hz)
Max Power Consumption: 448 W (Full PoE Load Included)
Heat Dissipation: 1528.6 BTU/hr
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Operating Humidity: 10% to 90% non-condensing
