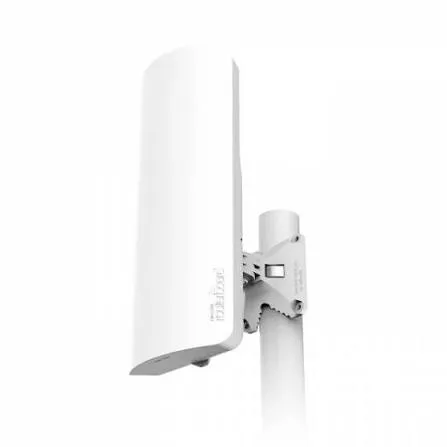

The MikroTik mANTBox ax 15s (Model: L22UGS-5HaxD2HaxD-15S) is a weather-proof, high-performance outdoor wireless Base Station designed for Wireless Internet Service Providers (WISPs), outdoor venues, campus distribution, and enterprise Point-to-Multipoint (PtMP) deployments. Combining MikroTik’s proven mANT sector antenna technology with modern Wi-Fi 6 (802.11ax) dual-band hardware, it provides expansive signal coverage and high client capacity across challenging outdoor environments.
At its core, the mANTBox ax 15s is driven by a dual-core ARM IPQ-5018 processor operating at 800 MHz, backed by 512 MB RAM and 128 MB NAND storage. The unit integrates a high-gain 15 dBi dual-polarized sector antenna featuring a wide 120-degree beamwidth, allowing network operators to cover large geographical sectors with fewer physical access points. Its dual-chain wireless radios operate simultaneously on 2.4 GHz and 5 GHz bands, leveraging Wi-Fi 6 capabilities such as MU-MIMO and OFDMA to maintain stable, low-latency connections even in congested RF environments.

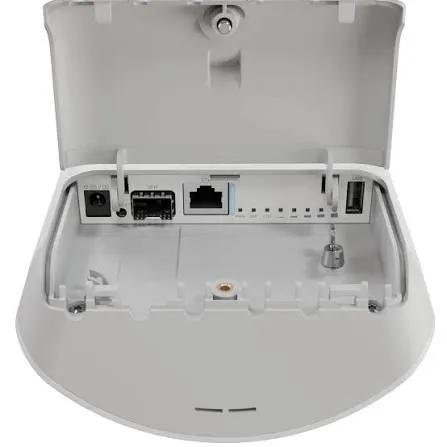

For network backhaul and connectivity, the router features 1x Gigabit Ethernet port supporting 802.3af/at and Passive PoE input, alongside 1x 2.5 Gigabit SFP cage for ultra-fast fiber uplinks over long distances. It also includes a full-size USB 3.0 port for external storage or cellular failover modems. Housed in a durable, UV-resistant outdoor casing equipped with a quickMOUNT pro mounting bracket and a Gigabit PoE injector, the device runs on MikroTik RouterOS Level 4, enabling comprehensive traffic shaping, VLAN management, dynamic routing, and wireless security controls.
Comprehensive Key Features
Integrated 15 dBi 120° Sector Antenna: Provides wide dual-polarized sector coverage to connect dozens of subscriber units (CPEs) or mobile clients over long distances.
Dual-Band Wi-Fi 6 (802.11ax) Radios: Concurrent dual-chain operation on 2.4 GHz and 5 GHz bands offers enhanced spectral efficiency, higher throughput, and reduced airtime contention.
2.5G SFP Fiber Backhaul: Features a 2.5 Gbps SFP cage (compatible with 1.25G and 2.5G modules) to prevent fiber bandwidth bottlenecks at the tower base.
Dual Power Input Flexibility: Supports PoE-in (802.3af/at or 18–28 V Passive PoE) via its Gigabit Ethernet port or direct DC barrel jack powering.
Rugged Weatherproof Construction: Engineered for harsh climates, surviving extreme temperature ranges with active ESD shielding and a solid UV-stabilized enclosure.
RouterOS L4 Base Station Software: Full L4 license allows operation as a PtMP Access Point / Base Station with advance queues, firewall filtering, and WISP protocol suites.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: L22UGS-5HaxD2HaxD-15S (mANTBox ax 15s)
Dimensions: 0.348 m × 0.140 m × 0.082 m (348 × 140 × 82 mm)
Weight: 1.200 kg
CPU: IPQ-5018 Dual-Core ARM 64-bit @ 800 MHz
RAM: 512 MB
Storage: 128 MB NAND
SFP Cage: 1× 2.5G SFP Cage (supports 1.25G and 2.5G modules)
USB Interface: 1× USB 3.0 Type-A Port
Enclosure Material: UV-Stabilized Outdoor Weatherproof Casing
Included Mounting: quickMOUNT pro bracket set included
2. Wireless, Networking & Performance Parameters
Antenna Gain: 15 dBi
Beamwidth: 120° (Azimuth)
Wireless Standards: 2.4 GHz (802.11b/g/n/ax dual-chain), 5 GHz (802.11a/n/ac/ax dual-chain)
Wi-Fi Generation: Wi-Fi 6 (802.11ax)
Ethernet Ports: 1× 10/100/1000 Mbps RJ45 Port (PoE-in)
PoE-In: 802.3af/at or 18 – 28 V Passive PoE
Operating System: MikroTik RouterOS (License Level 4)
3. Electrical & Environmental Parameters
Power Method: Direct DC Power Jack (12 – 28 V DC) or PoE-in
Included Power Accessories: 24 V DC / 1.2 A Power Adapter + Gigabit PoE Injector
Max Power Consumption: 21 W (11 W without attachments)
Cooling Type: Passive
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
