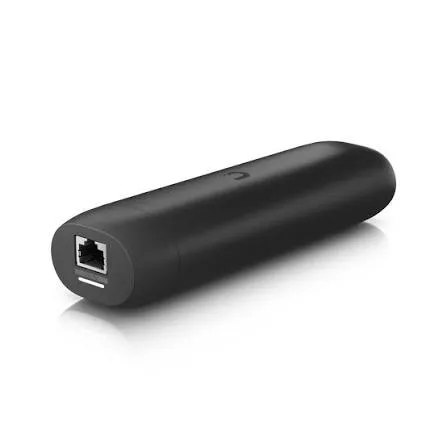

The Ubiquiti Protect Viewport (Model: UP-Viewport) is a compact HDMI video display device engineered to stream high-density UniFi Protect camera feeds directly to any standard HDMI monitor, TV, or digital signage display without requiring a dedicated PC. Powered by Power over Ethernet (PoE), the device connects to your local network and outputs real-time, low-latency video surveillance feeds with customizable grid matrix layouts.
Featuring up to 4K video display output at 30 frames per second, the UP-Viewport supports matrix view arrangements capable of displaying up to 16 camera channels simultaneously on a single screen. Housed in a durable, compact enclosure, it includes HDMI and Ethernet interfaces along with versatile VESA and wall-mounting hardware, making it an optimal solution for security operations centers, office reception areas, and retail monitoring stations.
Comprehensive Key Features:
Low-Latency Direct Video Streaming: Outputs real-time UniFi Protect video surveillance directly to HDMI displays without requiring a dedicated display PC.
High-Resolution 4K Video Output: Supports crystal-clear HDMI video output up to 4K (3840 x 2160) at 30 fps for high-detail visual monitoring.
Customizable Camera Matrix Grid: Displays multiple camera feeds on a single screen with custom grid layouts supporting up to 16 video channels simultaneously.
Single-Cable Power over Ethernet: Powered directly over standard 802.3af PoE via Gigabit Ethernet RJ45, simplifying power delivery and cable management.
Plug-and-Play UniFi Protect Integration: Automatically discovered and configured within the UniFi Protect application suite for fast matrix layout assignment.
Compact & Modular Mounting: Includes dedicated VESA display bracket and wall mounting hardware for clean installation behind screens or TV mounts.
Low Power Consumption: Energy-efficient processing hardware operates at a maximum power draw under 9.5W.
Extended Technical Specifications:
Hardware & Physical Parameters:
Model / SKU: UP-Viewport (UniFi Protect Viewport)

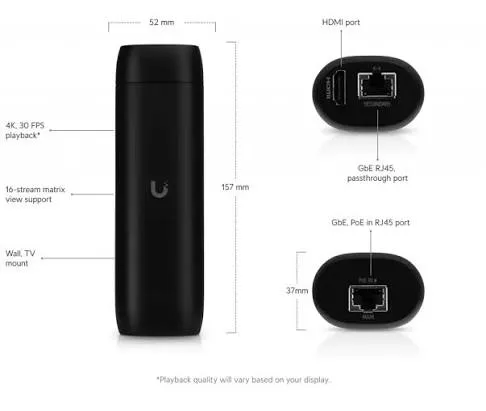

Dimensions: 157.1 x 37 x 22.5 mm (6.19 x 1.46 x 0.89")
Weight: 230 g (8.11 oz)
Enclosure Material: Polycarbonate, Aluminum Alloy
Mounting Options: VESA Mount (75x75 mm / 100x100 mm), Wall Mount (Included)
Processor: High-Performance Multi-Core Video Processor
System Memory: 1 GB DDR3
System Status Indicator: Multi-Color LED
Wireless, Networking & Performance Parameters:
Video Output Interface: (1) HDMI Port (Up to 4K @ 30 fps)
Networking Interface: (1) 10/100/1000 Mbps Gigabit Ethernet RJ45 Port
Maximum Display Resolution: 4K UHD (3840 x 2160) at 30 fps
Maximum Multi-Camera View: Up to 16 camera channels on a single display grid
Supported Video Decodes: H.264 / H.265 (UniFi Protect streams)
System Management: Centralized control via UniFi Protect Application
Electrical & Environmental Parameters:
Power Method: 802.3af PoE (Pairs 1, 2+; 3, 6- / Pairs 4, 5+; 7, 8-)
Supported Voltage Range: 44 to 57V DC
Max. Power Consumption: 9.5W
ESD/EMP Protection: Air: ±8 kV, Contact: ±4 kV
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Regulatory Certifications: CE, FCC, IC
