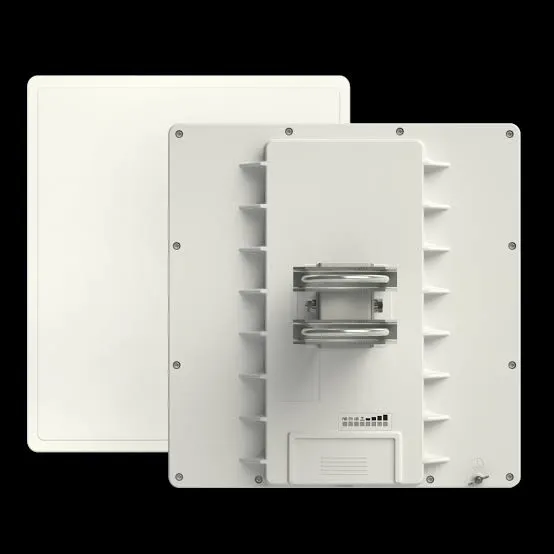

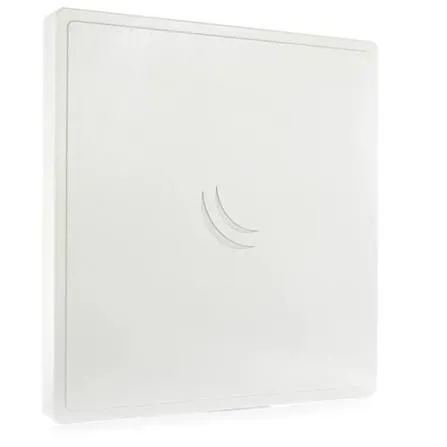

The MikroTik QRT 5 is a rugged, high-performance outdoor wireless bridge designed specifically for medium and long-range point-to-point (PtP) backhaul links or as a high-gain Customer Premises Equipment (CPE) unit in 5 GHz point-to-multipoint (PtMP) networks. Built around a high-efficiency 24 dBi flat panel antenna, the unit houses the high-power RB911G-5HPnD wireless board directly inside its weatherproof casing to minimize cable attenuation and signal loss.
Driven by a 600 MHz Atheros AR9342 processor paired with 64 MB RAM and 128 MB NAND storage, the QRT 5 features a high-output 1000mW dual-chain 802.11a/n wireless card. It includes a single Gigabit Ethernet port to fully utilize the high-speed wireless link capacity without copper bottlenecks. Housed in an IP66-rated, weatherproof enclosure with an included heavy-duty mounting bracket, the QRT 5 provides effortless vertical/horizontal alignment and rock-solid stability in extreme weather conditions.
Comprehensive Key Features
Integrated 24 dBi Panel Antenna: Built-in high-gain directional flat panel antenna provides narrow beamwidth and maximum signal isolation for long-distance bridges.
High-Power Dual-Chain Wireless: Delivers up to 1000mW (30 dBm) output power on the 5 GHz band (802.11a/n) for long-range link stability.
Gigabit Ethernet Backhaul: Features 1x 10/100/1000 Mbps RJ45 port to support full wireless line-rate data transmission.
Rugged Outdoor Construction: Weatherproof IP66-rated chassis designed to withstand heavy wind loads, rain, and extreme temperature fluctuations.

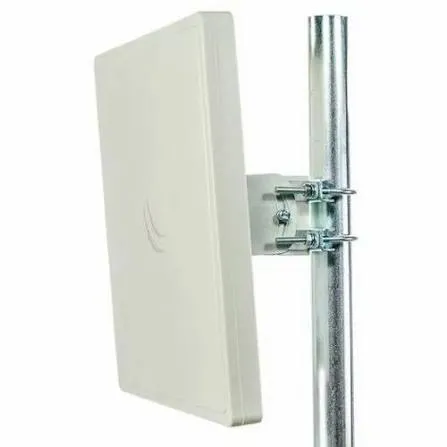

Precision Mounting Bracket: Included professional pole-mounting kit allows precise elevation and azimuth adjustments for accurate antenna alignment.
RouterOS L4 Enterprise Suite: Powered by RouterOS Level 4, supporting wireless access point, bridge, and client modes alongside advanced routing, firewall, and bandwidth management features.
Extended Technical Specifications
1. Hardware & Physical Parameters
Model / SKU: RB911G-5HPnD-QRT (QRT 5)
Dimensions: 0.309 m × 0.320 m × 0.050 m (309 × 320 × 50 mm)
Weight: 1.650 kg
CPU: AR9342 Single-Core @ 600 MHz
RAM: 64 MB
Storage: 128 MB NAND
Enclosure Material: Weatherproof UV-Stabilized Outdoor Casing
Status LEDs: Power, User LED, Ethernet Link/Activity, Wireless Signal Strength LEDs
2. Wireless, Networking & Performance Parameters
Wireless Band: 5 GHz (802.11a/n dual-chain)
Antenna Gain: 24 dBi
Antenna Beamwidth: 10.5°
Max TX Power: 30 dBm (1000 mW)
Ethernet Ports: 1× 10/100/1000 Mbps RJ45 Port
Operating System: MikroTik RouterOS (License Level 4)
Architecture: MIPSBE
3. Electrical & Environmental Parameters
Power Method: Passive PoE-In (8 – 30 V DC)
Included Power Supply: 24 V DC / 0.8 A Power Adapter + Gigabit PoE Injector
Max Power Consumption: 11.5 W
Cooling Type: Passive
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
| brand | Mikrotik |
The Apple MacBook Pro (Retina, 15-inch, Mid 2017 - A1707) delivers exceptional computing power and ultra-fast storage in a sleek, precision-milled aluminum unibody enclosure. Engineered for creative professionals, developers, and power users, it features a stunning 15.4-inch Retina display with LED backlighting, IPS technology, and P3 wide color gamut support, offering remarkable detail and color accuracy for photos and high-resolution video content.
At its core, this configuration is driven by a high-tier Quad-Core 3.1 GHz Intel Core i7 processor (Kaby Lake) with Turbo Boost speeds reaching up to 4.1 GHz. Equipped with dual graphics processing—Radeon Pro discrete graphics alongside integrated Intel HD Graphics 630—it automatically switches between processors to balance performance and battery efficiency. Packed with 16 GB of 2133 MHz LPDDR3 memory and an ultra-fast 1 TB PCIe-based onboard flash storage module, it delivers fluid multitasking and instant file access. The innovative Touch Bar with integrated Touch ID replaces the traditional function keys with dynamic, context-aware controls for maximum productivity.
Comprehensive Key Features:
Pro-Grade Quad-Core Performance: Powered by a 3.1 GHz Quad-Core Intel Core i7 processor (Turbo Boost up to 4.1 GHz) with 8 MB shared L3 cache.
Brilliant Retina Display with P3 Color: 15.4-inch IPS display featuring 500 nits brightness and P3 wide color gamut for true-to-life visual fidelity.
Interactive Touch Bar & Touch ID: Multi-Touch glass strip providing context-sensitive shortcuts alongside quick, secure Touch ID biometric authentication.
Dual Graphics Architecture: Combines discrete Radeon Pro graphics with integrated Intel HD Graphics 630 for efficient graphic rendering and power optimization.
Massive High-Speed Storage: Includes a large 1 TB PCIe-based onboard SSD delivering read/write speeds up to 3.2 GB/s.
Versatile Thunderbolt 3 Connectivity: Four high-speed USB-C / Thunderbolt 3 ports supporting power charging, DisplayPort output, and data transfers up to 40 Gbps.
Expansive Trackpad & Audio: Oversized Force Touch trackpad paired with high-fidelity stereo speakers featuring wide dynamic range and deep bass.
Extended Technical Specifications:
Model / SKU: MacBook Pro (15-inch, Mid 2017) / Model Identifier: MacBookPro14,3 / Model Number: A1707
Processor: 3.1 GHz Quad-Core Intel Core i7 (7700HQ "Kaby Lake", Turbo Boost up to 4.1 GHz) with 8 MB L3 cache
Graphics:
Discrete Graphics: AMD Radeon Pro 560 with 4 GB of GDDR5 memory (or Radeon Pro 555)
Integrated Graphics: Intel HD Graphics 630
Display: 15.4-inch (diagonal) LED-backlit IPS Retina display (2880 x 1800 native resolution at 220 ppi, 500 nits, P3 color)
Memory: 16 GB of 2133 MHz LPDDR3 onboard memory
Storage: 1 TB PCIe-based onboard flash storage
Wireless & Connectivity:
Wi-Fi: 802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth: Bluetooth 4.2 wireless technology
I/O Ports:
(4) Thunderbolt 3 (USB-C) ports (Supports Charging, DisplayPort, Thunderbolt 40 Gbps, USB 3.1 Gen 2 up to 10 Gbps)
(1) 3.5 mm headphone jack
Audio & Camera:
Stereo speakers with high dynamic range and 3 microphones
720p FaceTime HD camera
Keyboard & Input: Full-size backlit keyboard with Touch Bar and integrated Touch ID sensor; Force Touch trackpad
Battery & Power: Built-in 76.0-watt-hour lithium-polymer battery; 85W USB-C Power Adapter
